Dayton Motor # 5K960BG ( 1 HP, Volts: 115/208-230, Amps: 13.6/6.9-6.8, 1 Phase) For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

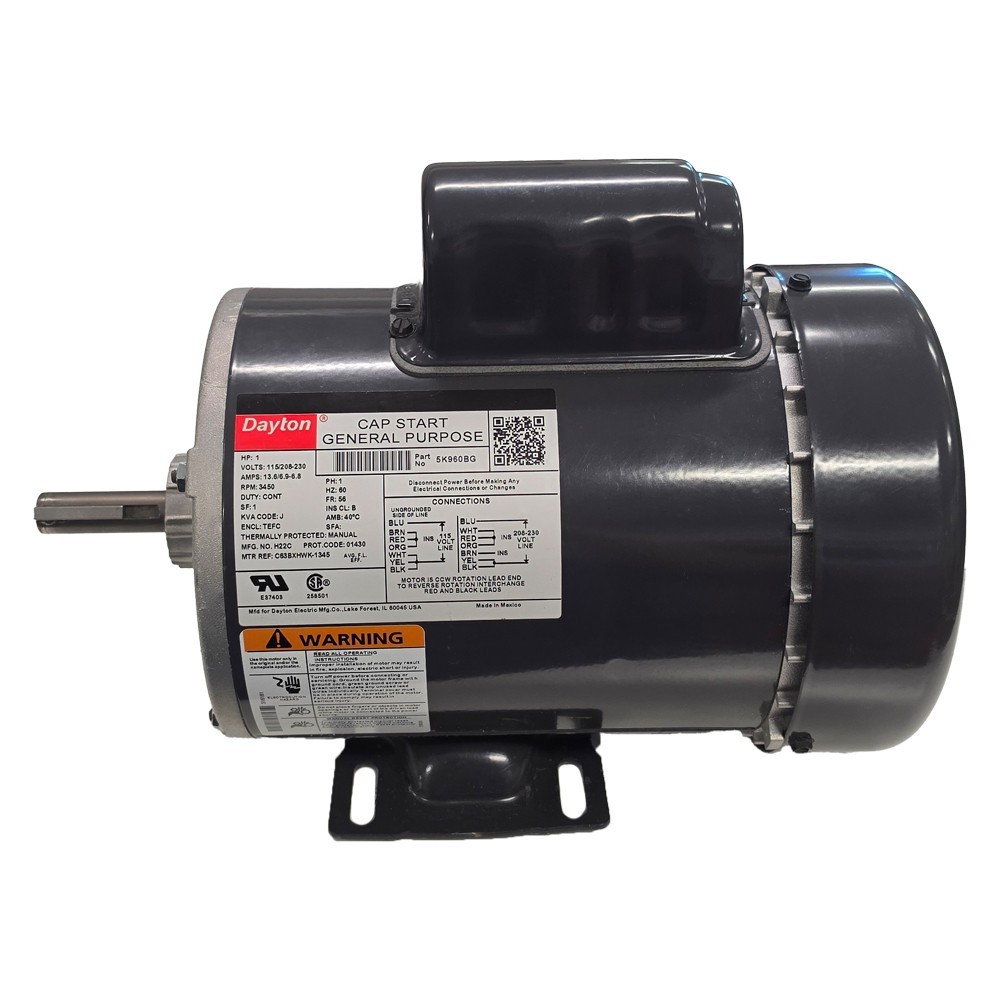

Dayton Motor # 5K960BG ( 1 HP, Volts: 115/208-230, Amps: 13.6/6.9-6.8, 1 Phase):
$195.00

This Motor is New & Still Sealed in the box.1/4 HP, 1 Ph, 115/208/230 Volt Explosion Proof Motor. Has a 48 Frame & 1/2" Shaft.
Catalog MaterialSteelFrequency60.00 HzMotor Letter TypeCap Start, Induction RunOutput @ Frequency.250 HP @ 60 HZPhase1Synchronous Speed @ Frequency1800 RPM @ 60 HZVoltage @ Frequency208.0 V @ 60 HZ
115.0 V @ 60 HZ
230.0 V @ 60 HZXP Class and GroupCLI GP D; CLII GP F,GXP DivisionDivision IAgency ApprovalsCSA
URAmbient Temperature40 °CAuxillary BoxNo Auxillary BoxAuxillary Box Lead TerminationNoneBase IndicatorRigidBearing Grease TypePolyrex EM (-20F +300F)BlowerNoneCurrent @ Voltage5.000 A @ 115.0 V
2.600 A @ 208.0 V
2.500 A @ 230.0 VDesign CodeNDrip CoverNo Drip CoverDuty RatingCONTEfficiency @ 100% Load55.0 %Electrically Isolated BearingNot Electrically Isolatedresponse DeviceNO responseHigh Voltage Full Load Amps2.5 aHeater IndicatorNo HeaterInsulation ClassBInverter CodeNot InverterIP RatingNONEKVA CodeLLifting LugsNo Lifting LugsLocked Bearing IndicatorNo Locked BearingMotor Lead TerminationFlying LeadsMotor Type3411LMounting ArrangementF1Number of Poles4Overall Length12.84 INPower Factor57Product FamilyHazardous Location MotorPulley Face CodeStandardRodent ScreenNoneService Factor1.00Shaft Diameter0.500 INShaft Ground IndicatorNo Shaft GroundingShaft RotationReversibleSpeed1725 rpmSpeed CodeSingle SpeedMotor StandardsNEMAStarting MethodDirect on lineThermal Device - BearingNoneThermal Device - WindingNoneVibration Sensor IndicatorNo Vibration SensorWinding Thermal 1Automatic Thermal OverloadWinding Thermal 1 LocationSBWinding Thermal 2NoneXP Temp CodeT3C

---

---

---

Dayton HVAC 20HN89 Electric Motor 1/70 HP 1550 RPM 120V

$32.50

---

Dayton Motor # 5K960BG ( 1 HP, Volts: 115/208-230, Amps: 13.6/6.9-6.8, 1 Phase)

$195.00

---

Dayton 6K321 Belt Drive Motor, 1 Speed, Open Dripproof, Cradle Base Mount, 1

$391.99

---
