Dayton Audio AS-1 Audio Stroboscope Woofer Analyzer 1-665Hz:
$66.93

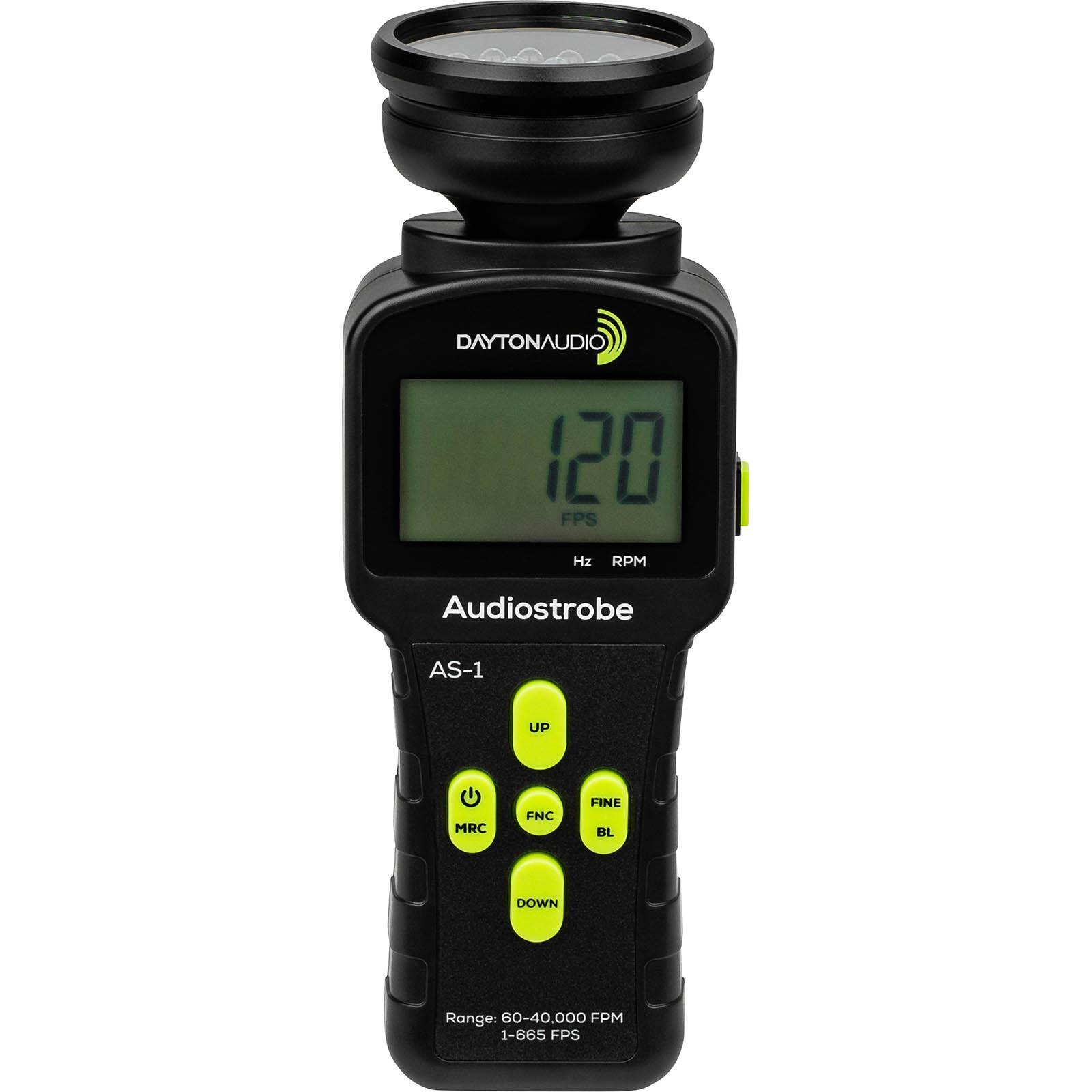

Dayton Audio AS-1 Audio Stroboscope Woofer Analyzer

By utilizing the phenomenon of persistence of vision, the Dayton Audio AS-1 can often help identify the cause of response defects and other useful information about individual drivers as well as complete loudspeaker systems by slowing down a driver's movement to see its performance in motion.

Dayton Audio’s AS-1 provides intermittent illumination of an object for visual analysis, up to a frequency of 665Hz. By adjusting the frequency of illumination, objects in vibrational or rotational movement can appear stationary or in slow motion. This optical illusion called visual persistence allows for a non-contact inspection and status of moving object surfaces well beyond the ability of the naked eye.

Watch the full instructional videoHand-Held Diagnosis

The Dayton Audio AS-1 can help identify the cause of response defects and other useful information of individual drivers. These include, but are not limited to:

Non-linearity i.e. rocking motions of the cone
Cone, Surround and dust cap deformations
Resonance modes in spider and tinsel leads
Lead deformation
Spider deformation
Phase relationships in multi-speaker systems
Tuning frequency and behavior of passive radiators
Excursion limits of active and passive Readout
The illuminated screen lets you see important information while using the AS-1 in the dark.
Glow-in-the-dark Buttons
Glowing buttons allow you to make changes to the output while using the AS-1 in the dark.
Ultra-Bright LEDs
Ultra-Bright LEDs illuminate the object in motion so the visual effect of the AS-1 is reliable
Slow Motion
The Dayton Audio AS-1 Audiostrobe was specifically designed with the loudspeaker enthusiast and professionals in mind. The typical frequency response of a loudspeaker contains peaks, nulls, and/or resonances that are undesirable. The causes of such irregularities are difficult to see however by synchronizing the flashes per second at or near the frequency of the inputted sine wave to the loudspeaker, the moving components appear motionless or in slow motion.
We Got Your Back
We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
