Dayton 1Tdn4 Rectangular Oem Blower, 3080 Rpm, 1 Phase, Direct Drive, Steel 1 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

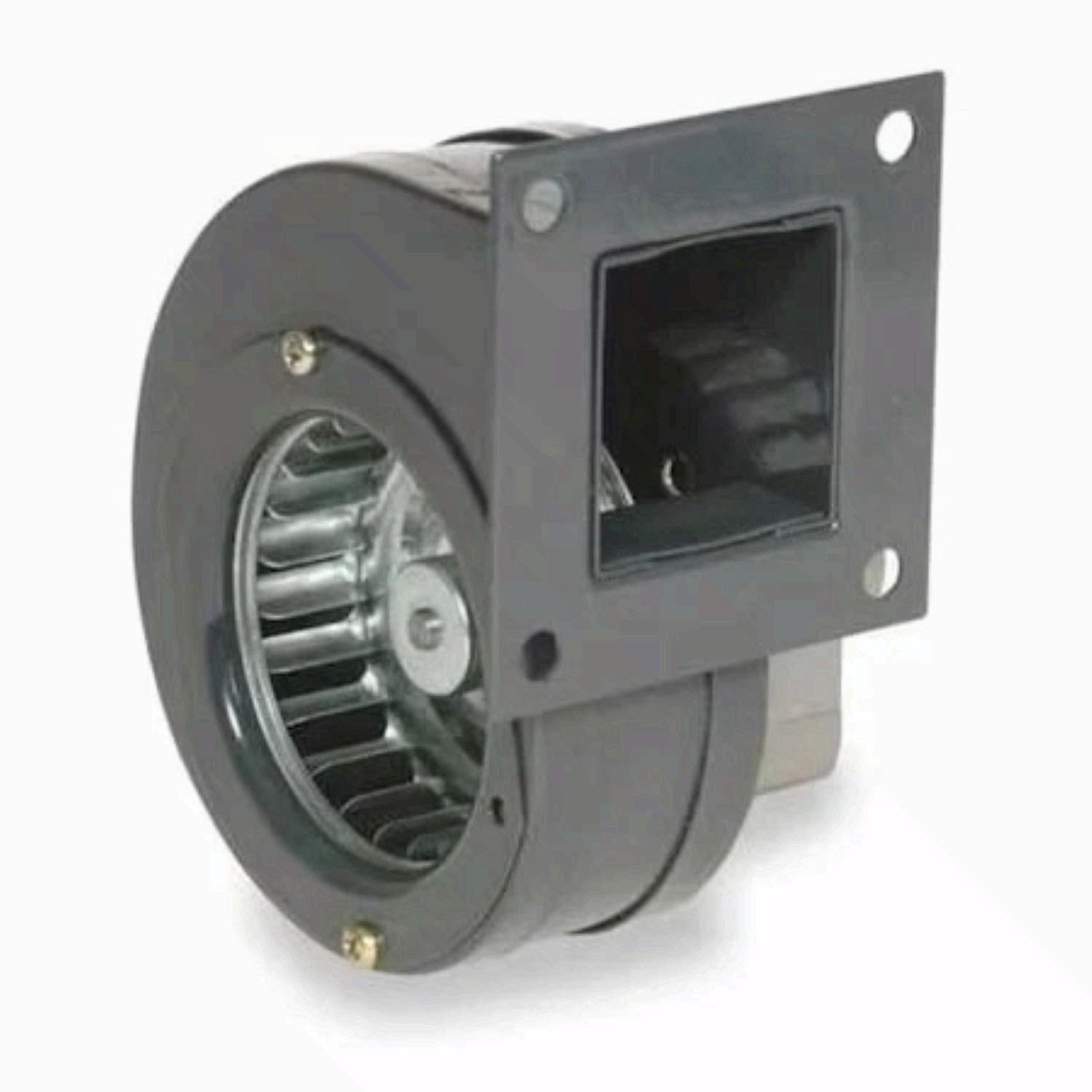

Dayton 1Tdn4 Rectangular Oem Blower, 3080 Rpm, 1 Phase, Direct Drive, Steel 1:
$60.59

DetailsMFR #1TDN4Zoro #G0744694UPC #190735146972Country of OriginTaiwan, Province of ChinaCFM @ 0.100-In. SP46Drive TypeDirect DriveFull Load Amps0.5 AHousing MaterialSteelIncludesDischarge Mounting FlangeNumber of Speeds1Phase1Blower ItemOEM Specialty BlowerBlower Outlet ShapeRectangularWith FlangeYesBlower Motor TypeShaded PoleBlower Voltage115V ACBlower Thermal ProtectionAutoBlower Conduit BoxNoMotor EnclosureOpenHz60Mounting PositionAll PositionReplaces4C761ItemOEM BlowerHousing ColorGrayAgency ComplianceCE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the BlowerCFM @ 0.200-In. SP44CFM @ 0.300-In. SP39CFM @ 0.400-In. SP30CFM @ 0.500-In. SP13Motor InsulationClass BBearing TypeBallHousing FinishEnamelRPM3080CFM @ 0.000-In. SP49Max. Inlet Temp.104 Degrees FMax. Ambient Temp.104 Degrees FWheel TypeForward-CurvedOEM ReplacementYesDischarge PositionBottom Horizontal, Down Blast, Top Horizontal, Up BlastResistance PropertiesCorrosion ResistantMount TypeAll PositionMinimum Ambient Temperature14 Degrees FMaximum Fan Speed3,080 RPMNameplate Voltage115V ACApplicationAir Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, VentilatingMotor Horsepower1/130 hpChemical ResistantNoOutlet ShapeRectangularHigh-Efficiency MotorNoMaximum Ambient Temperature104 Degrees FSpark Resistant Construction TypeNot RatedCorrosion ResistantNoMotor TypeShaded PoleMotor Speed3,080 RPMReplacement For4C761Includes MotorYesAirflow @ 0.250 in SP41 cfmFor Air TypeClean AirNumber of Inlets1Housing Material GradeSPCCFeaturesNoise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet OperationThermal Overload ProtectionYesFrequency60 HzSpeed ControllableNoMotor LocationOut of AirstreamAirflow @ 0.500 in SP13 cfmFlange TypeFlangedAirflow @ 0.400 in SP30 cfmMotor Insulation ClassBMotor Frame DesignationC-frame motorWheel Material FinishGalvanizedHousing Material Gauge0.8 mmAirflow @ 0.000 in SP49 cfmMotor IP RatingIP20Includes Mounting HardwareNoMarketCommercial, Industrial, ResidentialCompatible Speed ControlNoHousing Material FinishEnamelCurrent0.5 AFor High-Static Pressure ApplicationsNoBrake Horsepower1/130 hpMounting OrientationMultipositionMaximum Inlet Air Temperature104 Degrees FHazardous Location ApplicationNoSound LevelNot RatedStandardsCE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the BlowerAirflow @ 0.100 in SP46 cfmRotationCWMaximum Static Pressure5/8 in wcAMCA Fan ClassNot RatedAssemblyAssembledMotor Duty ClassContinuousElectrical ConnectionWire LeadsFor Ventilation TypeExhaust, Make-Up, Return, SupplyMinimum Fan Speed0 RPMFor LocationIndoorWheel MaterialSteelMountingAll PositionVoltage115
DimensionsInlet Dia.2 9/16 inOverall Height4 1/2 inOverall Width4 3/16 inBlower Wheel Diameter2 15/16 inDimension A4 1/2 inOverall Depth4 1/2 inDimension J3 7/16 inDimension M2 7/16 inDimension D2 1/8 inDimension L2 13/16 inDimension B5 5/16 inOutlet Height1 5/8 inDimension K3 1/8 inOutlet Width2 inLead Length13 inDimension C4 3/16 inDimension E4 11/16 inDimension F2 1/2 inBlower Wheel Width1 1/2 inManufacturer Warranty Length1 yr LimitedInlet Diameter2 1/2 inWheel Width1 1/2 inWheel Diameter2 7/8 inHousing Width4 3/16 inHousing Height4 1/2 inWheel Bore Diameter6 mmShaft Diameter6 mmFlange Size3 7/16 in W x 3 1/8 in HHousing Depth4 1/2 in
RestrictionsWARNING: Cancer and Reproductive Harm For more information go to Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 2 7/8 in, Airflow @ 0.000 in SP 49 cfm, Airflow @ 0.100 in SP 46 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 41 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 30 cfm, Airflow @ 0.500 in SP 13 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable
