DW833 2-in-1 Automotive Relay Circuit Tester 12V 24V 4/5 Pin LED Digital Display:
$55.00

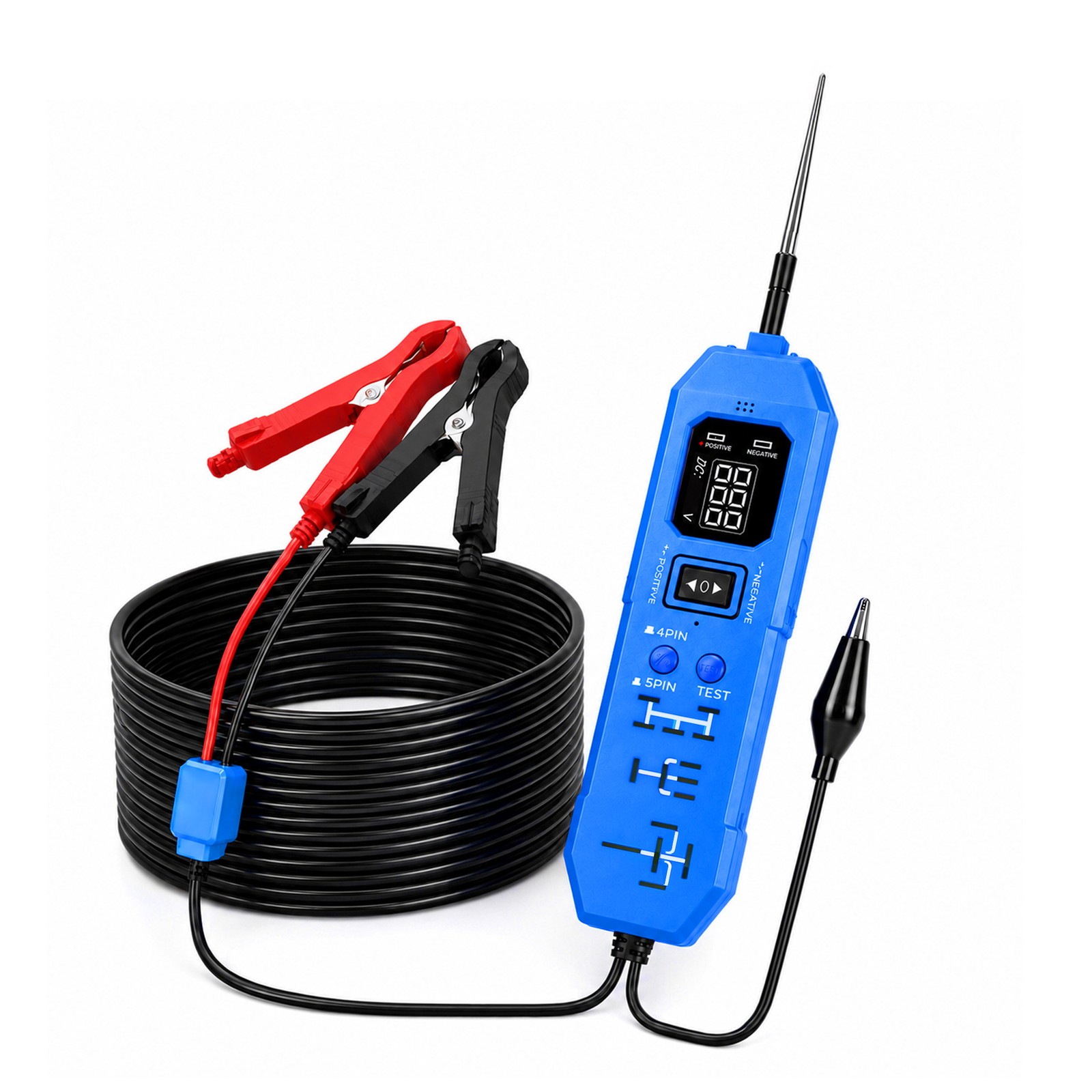

DW833 2-in-1 Automotive Relay & Circuit Tester

Stop carrying multiple diagnostic tools for auto electrical work. This upgraded compact tester combines a 3.5-36V circuit probe and a 12V/24V 4/5 pin relay tester in one device. Ideal for professional mechanics, auto electricians and DIY car enthusiasts.

Key Features

✅ 2-in-1 Multifunction: Circuit tester + relay tester in one unit, covers all common automotive electrical diagnostics
✅ Wide Test Range: Supports DC 3.5V-36V circuit testing, and 12V / 24V 4-pin & 5-pin automotive relay testing
✅ Built-in LED Work Light: Bright integrated LED illuminates dark engine bays and tight spaces for night testing
✅ Clear Digital Display: High-contrast LCD shows real-time voltage, delivering accurate and intuitive readings
✅ One-Click Output Switch: Fast toggle between positive and negative output for quick polarity & continuity tests
✅ Comprehensive Diagnostics: Tests voltage, polarity, continuity, short circuit, leakage, drive and relay engagement
✅ Universal Fit: Works on 12V passenger cars, 24V trucks, commercial vehicles and construction machinery

Full Specifications

Parameter

Details

Model

DW833

Brand

Lingxiang

Circuit Test Range

DC 3.5V – 36V (NOT for 220V AC)

Relay Test Voltage

12V / 24V

Supported Relays

4-Pin & 5-Pin automotive relays

Display

Digital voltage LCD screen

Indicator Lights

Red = Positive (+) / Green = Negative (-) / Ground

Work Light

Built-in LED

Operating Temp

-20°C ~ +55°C

Weight

Approx. 310g

Dimensions

30 × 12 × 5 cm

Easy Operation Guide

Circuit Testing (DC 3.5V – 36V)

Connect power: Red clip to battery Positive (+), black clip to Negative (-)
Select output mode with the one-click switch
Touch probe to test point — display shows voltage, indicator lights show polarity
Read results: Red = Positive, Green = Negative/Ground, No light = No voltage

Relay Testing (12V/24V 4/5 Pin)

Set switch to match 4-Pin or 5-Pin relay type
Plug the relay into the test socket on the tester
Press TEST button — automatically checks for sticking contacts, coil burnout and abnormal engagement
Visual indicators confirm if the relay is good or faulty

⚠️ Important Safety Information

DC use ONLY: Never connect to 220V AC household power — causes permanent damage and electric shock risk
Correct polarity required: No built-in reverse polarity protection. Always match Red to Positive, Black to Negative
Keep device dry. Do not use in rain or wet environments
Do not disassemble or modify — unauthorized disassembly voids warranty
Always select the correct relay mode for accurate results

Package Includes

1 × DW833 Automotive Circuit & Relay Tester
1 × Set of power clips (Red + Black)
1 × Test probe
1 × User manual
Vehicle and relays are NOT included

Service Guarantee

Fast shipping with full tracking number
30-day hassle-free money-back guarantee
24/7 responsive customer support — replies within 24 hours
Professional technical support for all product questions
