DT-338 80A 1mA Clamp-on AC/DC Current Voltage Capacitance Frequency Resistance For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

DT-338 80A 1mA Clamp-on AC/DC Current Voltage Capacitance Frequency Resistance :
$76.46

RubyElectronics DT-338 80A / 1mA Clamp-on AC/DC Current Voltage Capacitance Frequency Resistance TemperatureMeter True RMS NEW!! Product Description

This is a brand newCEM DT-338 certified digital clamp-on electrical multimeter from Ruby Electronics.Thismeter measures AC / DC current up to 80 Amps. The maximum resolution is1mA.

DT-338Professional True RMS Clamp meter provides accurate AC/DC Current and Voltagereadings regardless of waveforms. This meter should be used in most industrialand commercial applications where non-linear loads distort the Current orVoltage waveform.

This meter is CAT III 600Vrated. It also measures capacitance, frequency, resistance andtemperature. It comeswith a heavy duty carrying case to protect your device when working in the field.

*** This device is to be used by the certified technician only. All safety regulation should be observed when testing high power circuits. ***

Features

Small jaw size, 0.75"
High resolution in current measurement up to 1mA
True RMS AC clamp-on multimeter
Type K temperature function included
AC / DC current measurement up to 80 A through clamp
Designed to safety standard IEC 61010-2: CAT III 600V and pollution degree 2
LCD display count: 4000
Auto power off and data hold function
Peak hold, Min / Max hold and relative functions
Advanced functions include capacitance and frequency measurement

Specification

Function

Max. Range

Max. Resolution

Basic Accuracy

AC Current

80 A

1 mA

+/- (3% + 8 digits)

DC Current

80 A

1 mA

+/- (3% + 8 digits)

AC Voltage

400 mV - 600 V

0.1 mV

+/- (1.5% + 10 digits)

DC Voltage

400 mv - 600 V

0.1 mV

+/- (1.5% + 2 digits)

Resistance

500 Ohm - 50 M Ohm

0.1 Ohm

+/- (1.5% + 2 digits)

Frequency

10 Hz - 100 kHz

0.001 Hz

+/- (1.5% + 2 digits)

Capacitance

5 mF

0.001 nF

+/- (5% + 10 digits)

Temperature

-20 deg C ~ 760 deg C

0.1 deg C

+/- (3.0% + 5 deg C)

-4 deg F ~ 1400 deg F

0.1 deg F

+/- (3.0% + 9 deg F)

Diode Check

Test current of 0.3mA, Open circuit voltage 3.0V

Continuity Check

Threshold: 50 Ohm

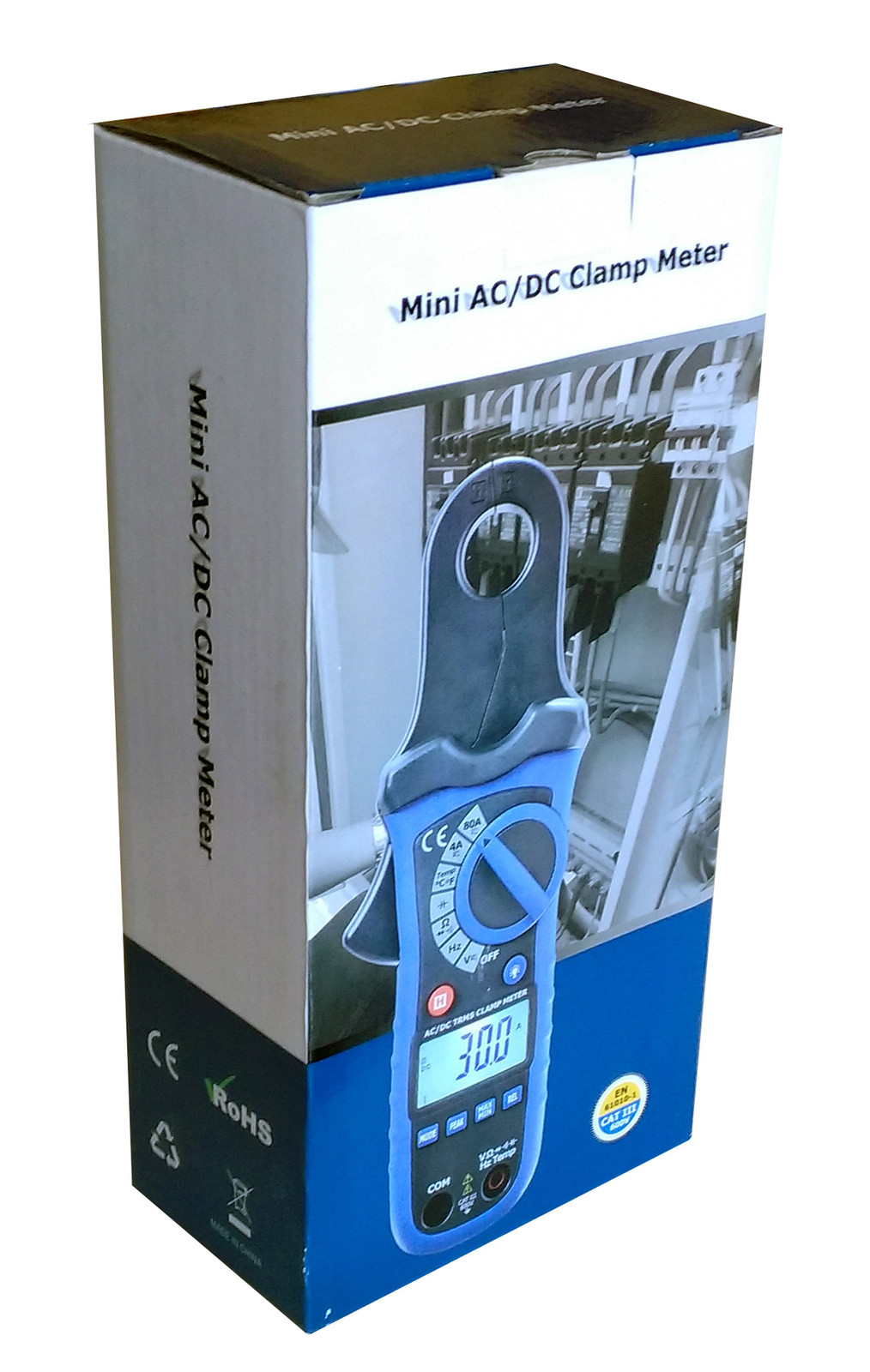

Photos

Click image to enlarge

Policy Summary

Product Condition New, guaranteed to work Manufacturer's Warranty 1 year Undernormal use; replace,repair or refund at manufacturer's sole discretion Seller's Warranty 30 days Undernormal use; replace,repair or refund at seller's sole discretion US continental shipping and handling Expedited shipping to US location Non-refundable Payment Please contact seller for payment option Due 3 days after sale close

ALL PURCHASES ARE SUBJECT TO ADDRESSVERIFICATION.

We ship to CONFIRMED ADDRESS ONLY.

Morestore policies
