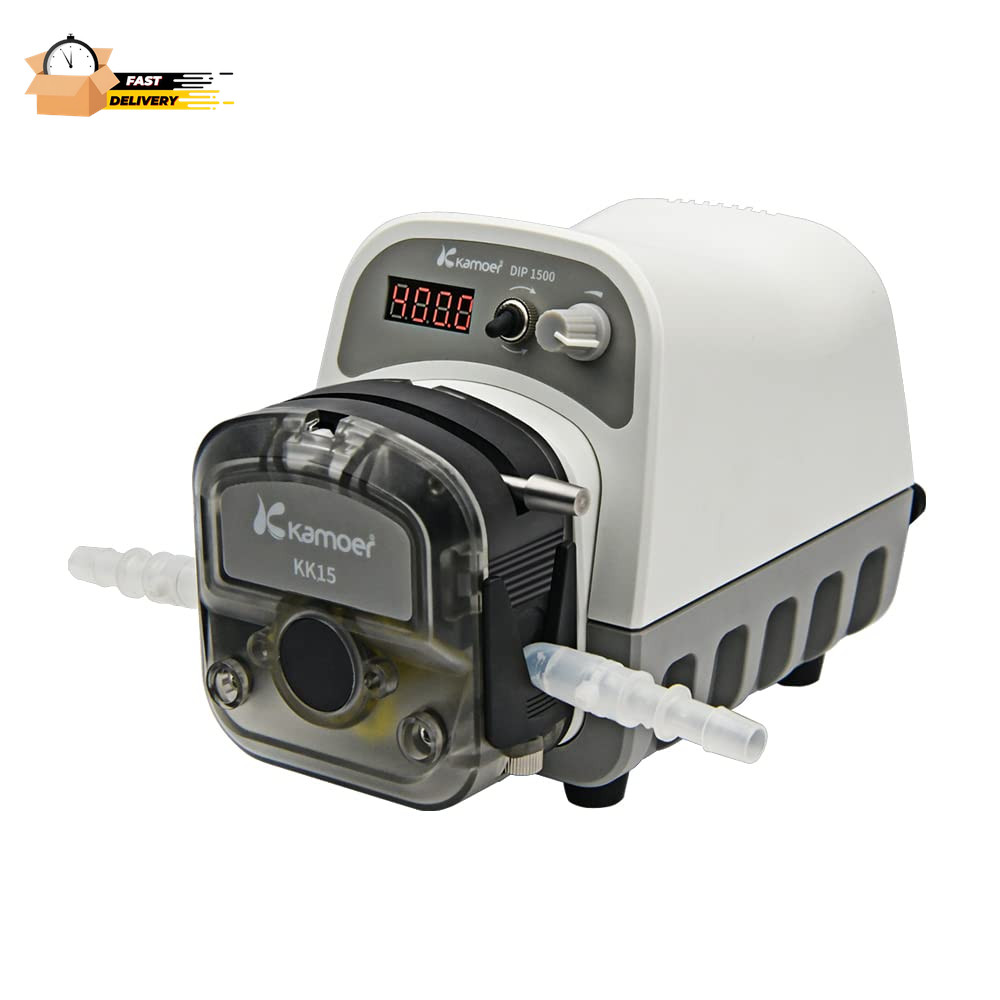

DIP1500 Peristaltic Pump 24V 1500Ml/Min High Flow Intelligent Variable S for Sale

Recent Threads

On eBay Now...

DIP1500 Peristaltic Pump 24V 1500Ml/Min High Flow Intelligent Variable S For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

DIP1500 Peristaltic Pump 24V 1500Ml/Min High Flow Intelligent Variable S:
$259.75

DIP1500 Peristaltic Pump 24V 1500Ml/Min High Flow Intelligent Variable SDescription Product Dimensions 4.72 x 8.27 x 6.12 inches Item Weight 3.74 pounds Manufacturer Fluid Tech (Shanghai) Co., Ltd. Item model number DIP1500-S183-US

Product description DIP1500 peristaltic pump 0-1500ml/min

Product Overview:

The DIP 1500 V2 is an intelligent peristaltic pump designed for applications in laboratories, industrial processes, dispensing, filling, and similar scenarios.
Driven by a stepper motor and equipped with highly elastic tubing, it delivers stable and controllable fluid transfer. Featuring a compact design and intuitive operation, the device supports multiple external control methods, facilitating seamless integration into automated systems.

Core Features/Advantages

4-digit LED display for clear readability – Real-time display of RPM, flow rate, and time ensures operational status is immediately apparent.
Dual operating modes – Supports RPM mode and flow rate mode to meet diverse fluid control requirements.
Multiple Control Methods – Rotary encoder, foot switch, external analog input (0-5V/0-10V/4-20mA), RS485 communication.
High-Precision Stepper Motor – Speed range 0.1–400 rpm, adjustment resolution 0.1 rpm, flow rate up to 1500 ml/min.
Power-off memory function – Automatically saves last operating parameters, eliminating the need for repeated setup after restart.
Back-sucking anti-drip design – Automatically reverses suction after pump stops to prevent liquid residue.
Full/semi-automatic cycling – Supports automatic operation, pause, and cycle modes, suitable for continuous operation scenarios.

Basic parameters Speed range 0.1- 400RPM Speed adjustment resolution 0.1RPM Flow range ≤1500ml/min Direction control Support clockwise and counterclockwise operation Display mode LED 4-digit digital tube Control mode Encoder, toggle switch, external analog signal control, RS485 communication control, foot switch control External analog signal control 4-20mA, 0-5V Power off memory support Working mode Fully automatic cycle, semi-automatic cycle, manual Way of working Fully automatic circulation, semi-automatic circulation, manual Support function Start and stop, forward and reverse, speed adjustment, etc. Power supply mode External power adapter Power ＜50W Features

1. Dual-Mode Operation

Speed Mode: Directly set rotational speed (rpm), suitable for applications with specific speed requirements.

Flow Mode: Directly set flow rate (ml/min) for intuitive control of delivery volume.

2. Three Operating Modes

Fully Automatic Cycle: Set run time/dosing volume + stop time for automated cyclic operation.

Semi-Automatic Cycle: Stops after single run completion, requiring manual restart.

Manual Control: Real-time start/stop and speed adjustment via encoder or foot switch.

3. Smart Features

Back-suction Function: Configurable back-suction time and speed to prevent dripping at the outlet.

Parameter Memory: Automatically saves operating status and parameters after power loss.

Flow Calibration: Built-in calibration program ensures delivery accuracy.

Direction Adjustable: Supports clockwise/counterclockwise operation to accommodate different pipeline layouts.

Integrated control port and power supply interface Multiple Control Interfaces

Rotary Encoder: Adjust parameters with intuitive operation.
Foot Switch: Standard 2-meter cable for remote control.
Analog Input: Supports 0-5V, 0-10V, 4-20mA signal control.
RS485 Communication: Supports Modbus protocol for easy integration with PLCs or host computers.

The integrated control port is a 9-core air connector, including 485 communication, external start/stop control, analog signal control 0~5V, analog signal control 4~20mA. The specific pin definitions are as follows (please refer to the diagram posted later)

(1. Spare) pin 1: leave blank

(2. 485 B) Pin 2: 485 B

(3. 485 A) Foot 3: 485 A

(4. Foot Switch+) Foot 4: Foot Switch+

(5. Foot Switch-) Foot 5: Foot Switch I

(5.0-5-) Foot 6: Analog signal 5V-

(7.0-5+) pin 7: analog signal 5V+ (8.

(8. 4-20mA-) Pin 8: Analog signal mA-

(9. 4-20mA+) pin 9: analog signal mA+

Support quick change pump tube (pump tube is a consumable), the liquid only touches the pump tube, not the pump body. Precautions for Use:

Precautions for Use:

Use the supplied DC 24V power adapter to avoid voltage mismatch.
Recommended Operating Environment: Temperature 0°C–60°C, humidity <80% RH (non-condensing).
Pump tubing is a consumable part. Regular inspection and replacement are recommended to maintain flow accuracy.
When handling special fluids, verify tubing compatibility beforehand.
Unauthorized disassembly or use of non-original accessories may affect product lifespan.

Typical Application Scenarios：

Industrial Processes and Automation: Machine tool coolant circulation, quantitative addition of lubricating oil/hydraulic oil, automatic dispensing of cleaning agents, electroplating solution transfer, chemical dosing for industrial water treatment.

Laboratory and Routine Testing: Batch dispensing of reagents, culture medium addition, sample transfer, chemical reaction feeding, wastewater sample collection.

Fine Chemicals and Manufacturing: Dispensing of adhesives and sealants; formulation of dyes and pigments; small-scale coating filling; chemical ingredient mixing and transfer.

Processing/Dispensing: Quantitative filling and addition of sauces, syrups, and fruit juices.

Note: The max flow rate in the above chart is obtained from 3 rotor equipment using 18# (7.9x11.1mm) tube type silicone tubing at room temperature conditions (approx. 25°C) and 400rpm test water, for reference only. The ambient temperature, the material and elasticity of the pump tube, the viscosity of the test fluid, and other factors will all impress the actual flow rate of the peristaltic pump.

Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 25 — 3.4 out of 5 stars 6 Price $200.00$200.00 $489.99$489.99 $299.00$299.00 Flow Rate 0-1500ml/min 0-1500ml/min 0-1500ml/min Rated Voltage DC24V AC 100V-240V AC 100V–240V Control Methods Rotary encoder, foot switch, external analog input (0-5V/0-10V/4-20mA), RS485 communication. oot Switch / RS485 / Analog Signal Touch screen, foot switch, 0~5/10V analog, RS485 communication WIFI no data ✓ ✓ Max Speed 400rpm 350rpm 350rpm

DIP1500 intelligent peristaltic pump, using high-precision long-life stepper motor, with a digital LED display to show the instant speed, flow rate.
Standard silicone tube S18#7.9mm IDx11.1mm OD(consumables,lifetime about 200H), easy to change tube, 3 rotors, speed range 0.1-400rpm, flow rate ≤1500ml/min, DC24V, 2A, power <50W, weight about 1.7KG, noise ≤65dB.
Support the functions of start-stop, reversing, speed regulation, calibration, reverse sucking back, etc. Precise control of stepper motor, speed adjustment resolution 0.1 rpm.
Multiple control methods, support rotary encoder, foot switch, external analog (4-20mA and 0-5V), 485 communication (Modbus) control.
Optional operation by speed and operation by flow, support fully automatic cycle work, semi-automatic cycle work and manual control work. With power failure memory function, it can automatically save the operation parameters when the last power failure occurred.
