On eBay Now...DDC (USA) Monobrid Synchro/Resolver-to-Digital Converter 4SDC-8920-1a-883B. For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
DDC (USA) Monobrid Synchro/Resolver-to-Digital Converter 4SDC-8920-1a-883B.:
$79.90
DDC (USA) MonobridSynchro/Resolver-to-Digital Converter4SDC-8920-1a-883BHybrid Microcircuit. The 4SDC-8920-1a-883B is a high-reliability, high-accuracy Synchro/Resolver-to-Digital Converter (SDC)hybrid microcircuit manufactured by Data Device Corporation (DDC). It is heavily used in aerospace,defense, and space applications for precise position sensing. Part Number BreakdownThe specific alphanumeric configuration of this part reveals its precise technical parameters:- 4SDC / HSDC: Synchro/Resolver-to-Digital Converter series.
- 8920: Specifies a Solid-State Resolver (Direct Input) calibrated for 400 Hz operational frequency with
- a 11.8 V Line-to-Line (L-L) signal voltage.
- 1: High-reliability military operating temperature range spanning -55°C to +125°C.
- a: Indicates High Accuracy, offering a maximum error margin of ±2.6 minutes.
- 883B: Fully compliant with MIL-STD-883 / MIL-PRF-38534 Class B screening standards for high-reliability military and aerospace microcircuits.
- Used, pulled from a working setup that was being decommissioned.

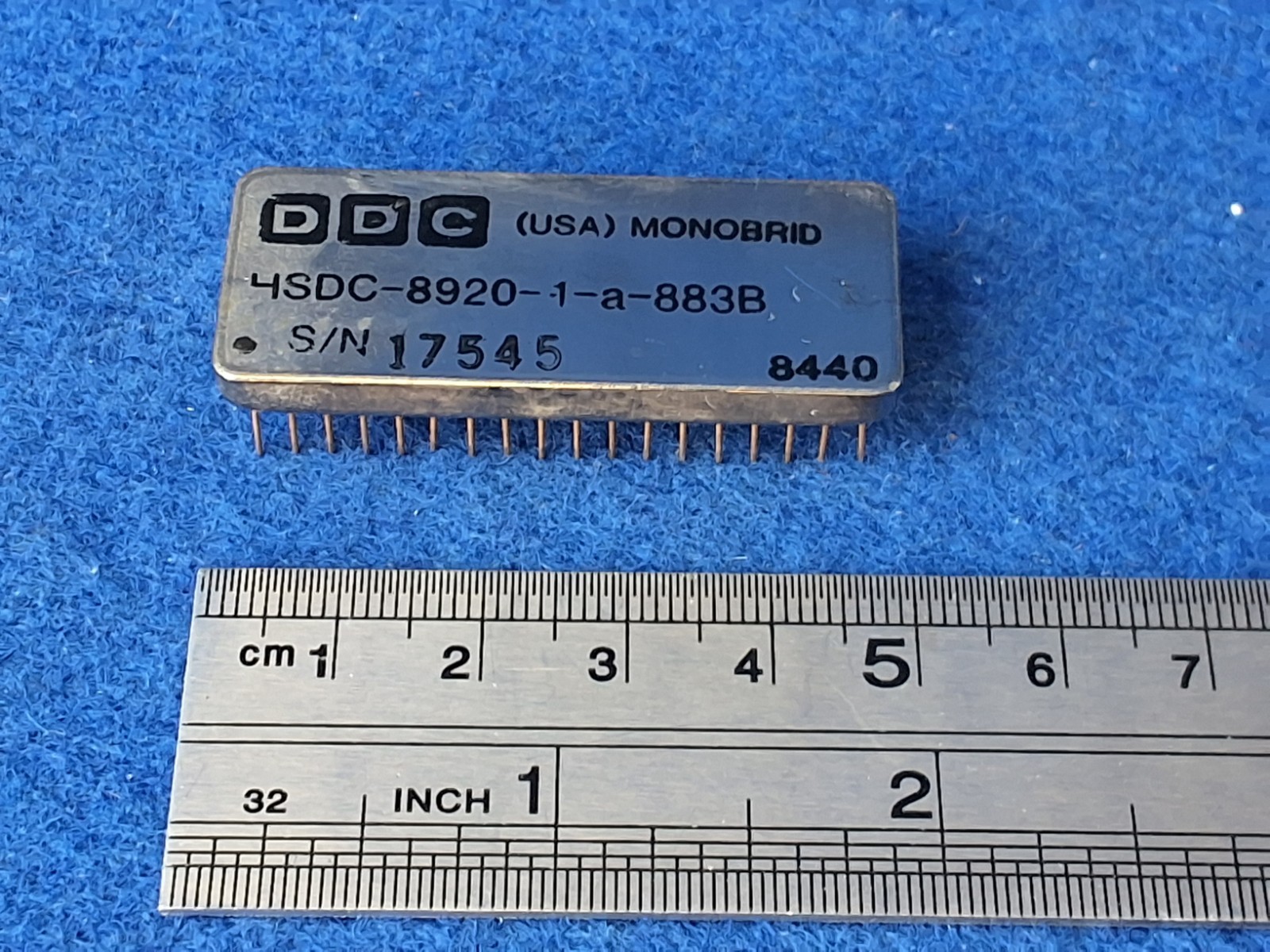

- Please see the pictures for the cosmetic condition and the components it comes with.
- Sold only that which is in the photo, does not include manuals or additional cables.
- Weight: 0.016 kg.
- Delivery by registered airmail + tracking number.
- What you see on the picture is not what you receive but is has the same condition.
DDC (USA) Monobrid Synchro/Resolver-to-Digital Converter 4SDC-8920-1a-883B.
$79.90
