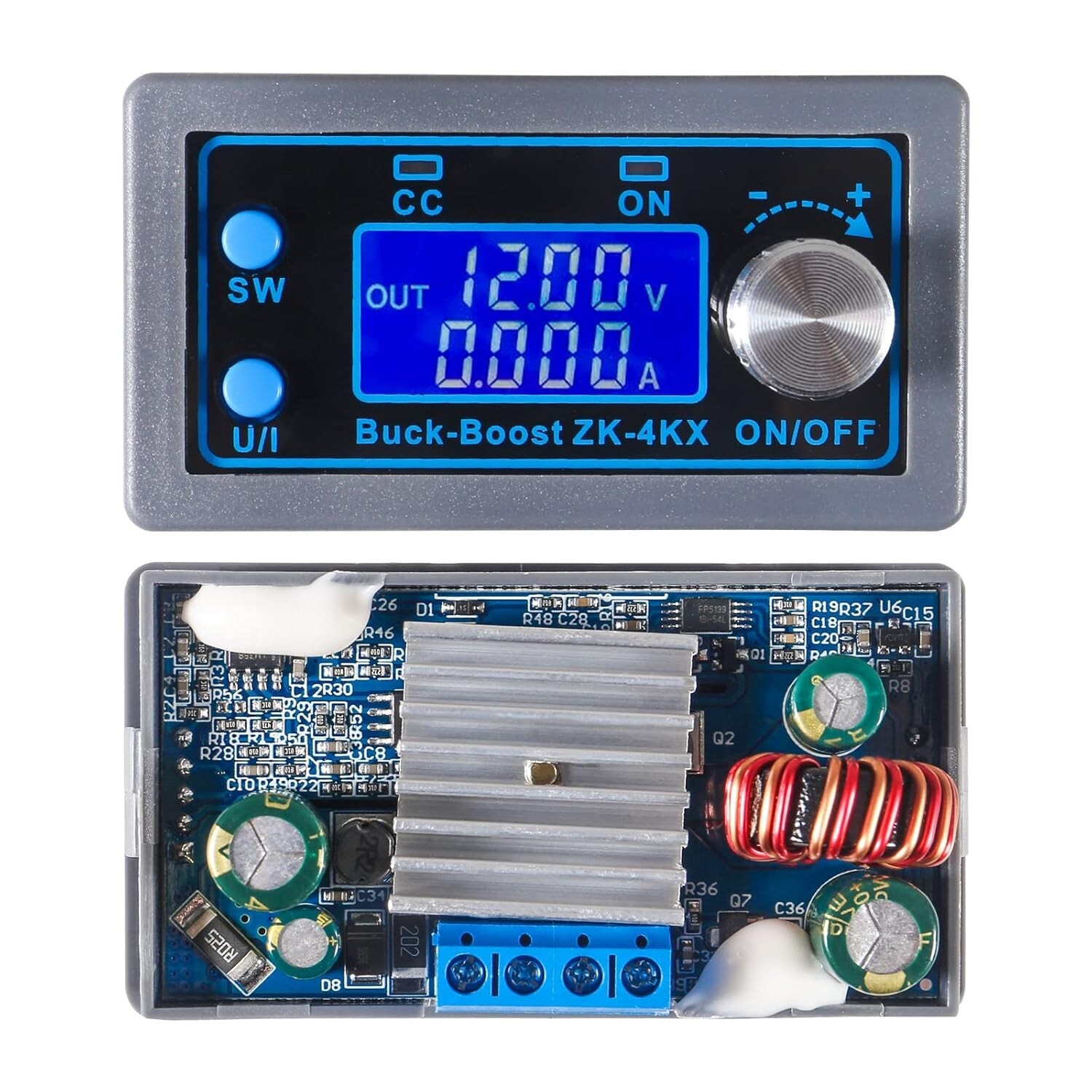

DC Adjustable Step Up Down Buck Boost Power Supply Voltage Regulator LCD Module For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

DC Adjustable Step Up Down Buck Boost Power Supply Voltage Regulator LCD Module:
$18.14

Item number:4264

Product description:

• Type Adjustable DC Buck-Boost Converter

• Material ABS+ Metal

• Color As the Picture Show

• Input Voltage 5.0-30V

• Output Voltage 0.5-30V

• Nominal Current Rating 3A

• Output Can work stably at 3A for a long time, and can reach 4A under enh

• Resolution 0.01V

• Output Voltage Rating (DC) 0.5-30V

• Conversion efficiency about 88%

• Output power Natural heat dissipation 35W, strengthen heat dissipation 50W

• Soft start Yes (with high power and load module may fail when starting)

• Product Type power converter

• Current Conversion DC to DC

• Conversion Direction Step Up Down

• Device Function voltage converter

• Features High Output Current and Power, LCD Display, Safe Protection, Wide Input/Output Voltage Range

• Application As an ordinary buck/boost module with over-current protection.

• Application 2 As a high-power LED constant current driver module or DIY solar power controller and battery charger

• Feature1 Wide Input/Output Voltage Range

• Feature 2 High Output Current and Power

• Feature3 LCD Display,Safe Protection,Versatile Applications

• Model Step Up Down Buck Boost Power Voltage Module

• • Input anti-reverse connection;

  • Output anti-reverse irrigation;

  • Input Undervoltage protection (4.8-30V adjustable, default 4.8V)

  • Output overvoltage protection (0.5-31V adjustable, default 31V)

  • Output overcurrent protection 0-4.1A (adjustable, default 4.1A)

  • Overpower protection (0-50W adjustable, default 50W)

  • Overtemperature protection (80-110℃ adjustable, default 110℃)

  • Timeout protection (0-100h adjustable, off by default)

  • Super capacity protection (0-60ah adjustable, off by style="font-family: "Microsoft YaHei";">

    Package included:

    • 1 x Adjustable DC Buck-Boost Converter

    ---

    ---



    ---
