DC Adjustable 0-32V 0-10A Lab Power Supply Variable Programmable Bench Sources For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

DC Adjustable 0-32V 0-10A Lab Power Supply Variable Programmable Bench Sources:
$52.99

GA-L series DC stabilized power supply with USB display

Product Description

The GA series products are four window dual color digital display switch DC stabilized power supplies with USB fast charging output display, which can simultaneously display voltage and current. The product is widely used in mobile phone repair, computer repair, battery charging, school teaching, and production line use. The GA series products use a coding potentiometer to continuously adjust the output voltage and output current between 0 and the nominal value, and can pre display the set value for easy use and adjustment. This device has a USB fast charging interface with output display and supports multiple fast charging protocols. Equipped with perfect short-circuit protection circuit. The stability and ripple coefficient of the power supply are very good. It has a small size, light weight, beautiful design, convenient operation, and can work for a long time at full load, which is deeply loved by users.

Product Features

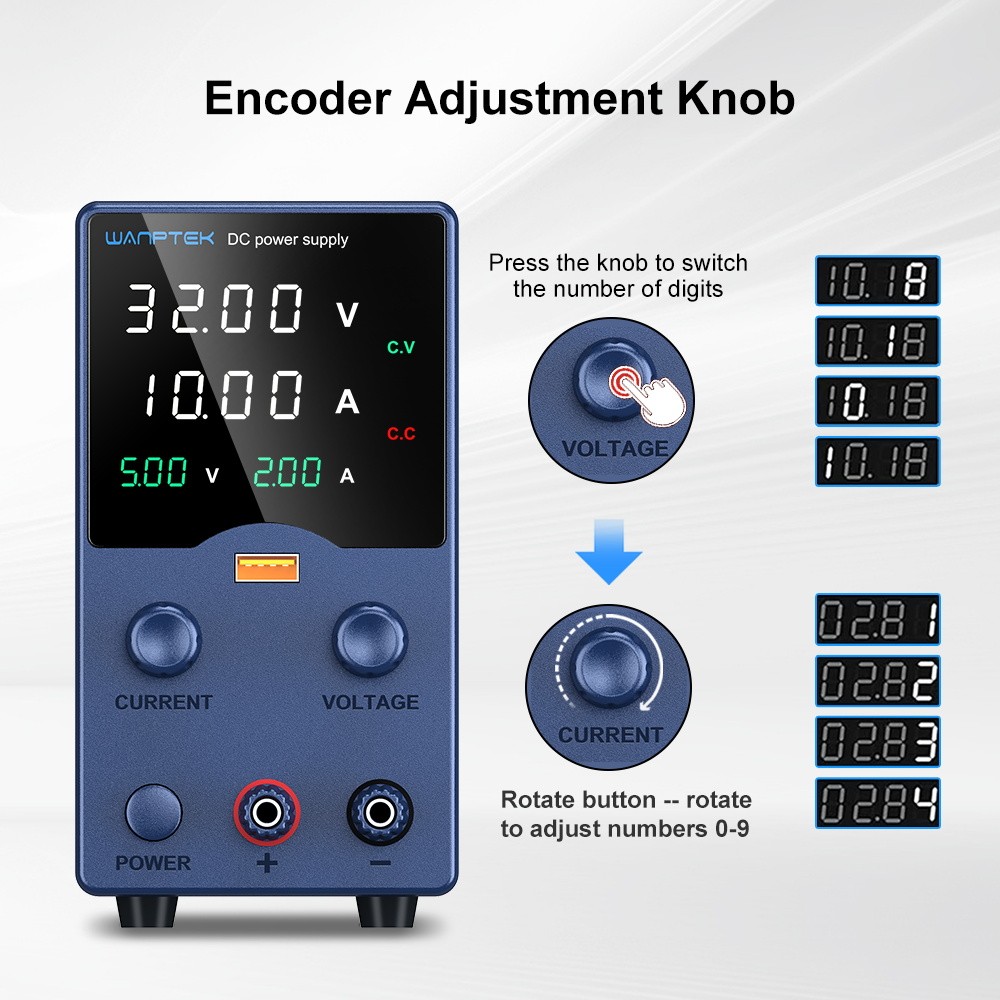

The GA series products use coding potentiometers to set voltage and current, and the set values can be displayed in advance.
USB fast charging interface with output display, supporting multiple fast charging protocols.
Small size, light weight, and sufficient power.
Automatic switching of constant voltage and current.
Voltage, current, four window dual color display with high accuracy.
Temperature controlled fan for heat dissipation, low noise, and long lifespan.

Application areas

1.Production line testing.
2. Repair mobile phones, computers, and appliances.
3. Product aging and electroplating.
4. Battery charging.
5. Laboratory, scientific research, and teaching.
6. All other occasions that require a DC stabilized power supply.

Product List

Model

GA3010L

Output Power

320W

Output voltage

0~32V

Output current

0~10A

Auxiliary functions

USB fast charging output with display, supporting multiple fast charging protocols.

Protection mode

Over voltage protection, over current protection, and over temperature protection.

working environment

Input style="text-align: left; vertical-align: middle; margin: 0pt 0pt 0.0001pt; font-family: Calibri; font-size: 10.5pt;">Working temperature：0℃～40℃;relative humidity:<80%RH

Storage temperature：-10℃～70℃;relative humidity:<70%RH

Constant voltage CV

Voltage stability：0.5%±3mV

Load stability：0.5%±3mV

Ripple voltage：≤0.5%Vp-p

0 to rated voltage continuously adjustable

constant current CC

Current stability：0.5%±3mA

Load stability：0.5%±3mA

Ripple current：≤0.5%Ap-p

Recovery time：≤500μS

Temperature coefficient：≤100ppm/℃

0 to rated current continuously adjustable

display

Two sets of 0.4 inch white light four digit digital tubes display; Two sets of 0.25 inch green light three digit digital display.

Display accuracy：0.5%±digits

Display resolution：voltage 00.01V，current 0.001A / USB: voltage 0.01V，current 0.01A

Size and weight

Product size：190(L)x80(W)x145(H)mm

Packing size：270(L)x116(W)x195(H)mm

Net weight：1.15Kg

Gross weight：1.5Kg

8sets/piece, box size:500*285*432mm,box weight:12.75kg

Random attachment

power cord x 1

Instructions x 1

Test line x 1

Machine color

Blue
