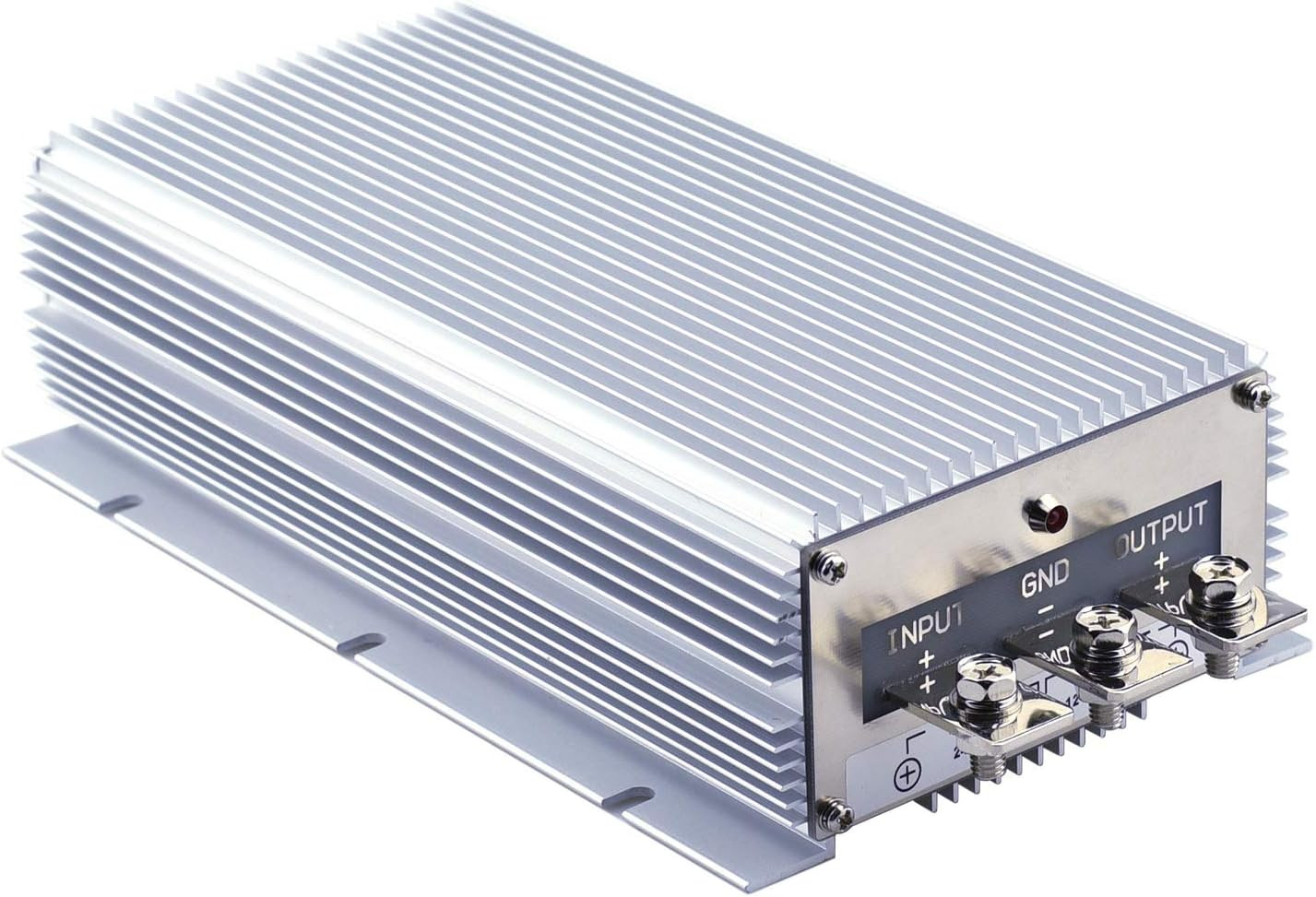

DC 24V to 12V 100A 1200W Waterproof Buck Transformer Power Supply For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

DC 24V to 12V 100A 1200W Waterproof Buck Transformer Power Supply:
$235.05

DC 24V to 12V 100A 1200W Waterproof Buck Transformer Power SupplyDescription Model Number DC2412-100 Number of Items 1 Mfr Part Number DC2412-100 Input Voltage 24 volts Output Voltage 12 volts Plug Type Barrel Connector Number of Outlets 1 Power Source Battery Powered Item Weight 4.9 pounds Color Metallic

Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to BAT-

Note:
* Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.
* Never charge the battery. Keep good air convection.
* Never reverse the polarity.
* Use the enough big cable to avoid the voltage drop. Application:
24V DC battery as input power to 12V DC appliances as output load. Specifications:
Input Rated Voltage: 24V DC
Input Voltage Range: 18-35V DC
Output voltage: DC12V 100A
Output Rated Power: 1200W
Efficiency: 97% (half load); 95% (full load)
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Weight: 2200g Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours. Package included:
1 x DC 24-12V 100A Voltage Converter Questions:
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.

Input voltage range: DC 18-35V; Output voltage: DC 12V(non-adjustable); Output current: 100A; Output power 1200W.
High conversion efficiency: Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
Wide application: Large trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, motor, electronic systems and DIY etc.
