Combo of Lathe Knurling Tool Attachment (USA FULFILLED):
$25.64

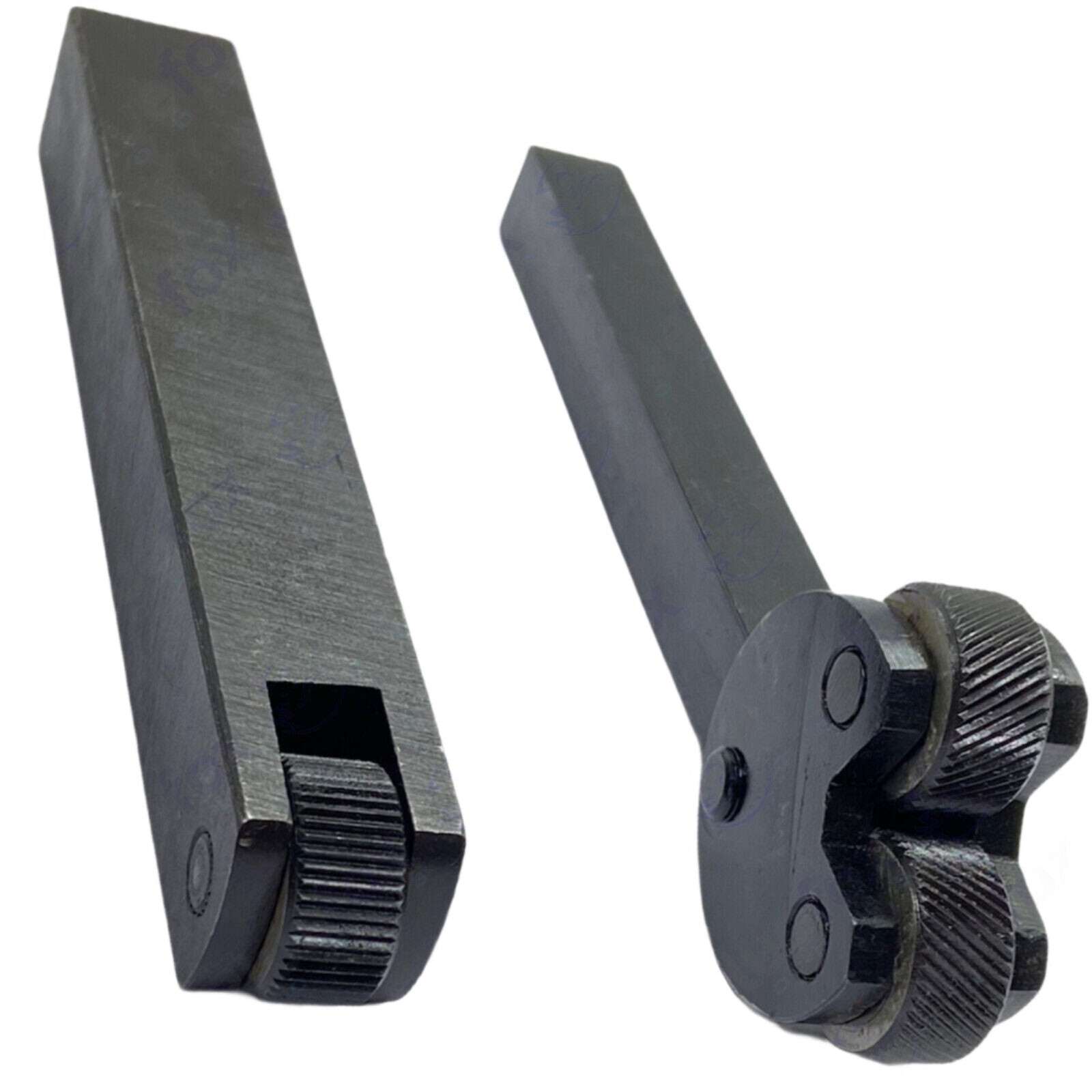

Combo of Lathe Knurling Tool AttachmentSingle Knurl - Linear Pitch - 1/2" x 1/2" x 4"

Made of Tool Steel - Holder Size : 1/2" x 1/2" x 4" (12.7 mm x 12.7 mm x 100 mm)
Knurl Dimension: 3/4" x 1/4" x 1/4" (19 mm x 6.35 mm x 6.35 mm)

Single Knurl - Linear Pitch - 3/4" x 3/4' x 5"

Made of Tool Steel - Holder Size : 3/4" x 3/4" x 5" (19 mm x 19 mm x 127 mm)
Knurl Dimension: 3/4" x 3/8" x 1/4" (19mm x 9.52mm x 6.35mm)

Double End Wheel (Linear Pitch)

Holder Size (In Inches): 1/2 x1/2 x 5" Holder Size (In mm): 12.7 x 12.7 x 125 mm
Knurl Dim. (In Inches) : 3/4 x 1/4 x 1/4 " Knurl Dim. (In mm) : 19 x 6.35 x 6.35 mm

Pivot Head-2 Wheel

Holder Size : 1/2 x 1/2 x 4-1/2" Inch ( 12.7 x 12.7 x 115 mm), Knurl Dimensions: 3/4" Diameter x 3/8 Width x 1/4" (Hole) Inches (19 x 9.52 x 6.35 mm)
Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31

H Type Knurling Tool 2" Inch/ 50 mm

Adjustable H Type Spring loaded clamp type knurling tool. Maximum Capacity- 2" ( 50 mm) Shank size 3/8" Square x 3-1/8" Inch Long II Knurl Dimensions- 3/4" (Diameter) x 3/8" (Wide) x 1/4" (Hole) Inches
A spare smaller rod with an extra spring is to reduce the capacity of the knurling tool by re-bolting the knurling arms in the lower inner holes.

Knob Knurling Tool (3-25 mm)

Holder Size (Inch) : 3/8" x 3/8" Square Holder Size x 3" Long Tail Holder Size in MM : 16 x 9.5 x 75 mm.
Knurl Dim.(mm) : 19 x 9.5 x 6.35 mm Knurling Capacity (mm) : 3-25 mm. Pitch: Medium
Clamp Type Knurling Tool with knob. This design helps reducing the load on the lathe spindle bearings compared to any other standard knurling tool

V Knurling Tool (5-20 mm)

Holder size : 3/8" x 3/8" x 2 -1/4" Paired with LH & RH diagonal lines to form a Diamond Pattern.
Hardened EN31 Grade Tool Steel Knurls of size - 3/4" x 3/8" x 1/4" bore.
Can be clamped in Standard Holder of the Quick change tool post on the lathe.
Quality Tool Steel Spring Action Clamp Type Knurling Tool Capacity 5-20 mm

6 Wheel -Multi Pitch Pattern

Holder Size : 3/8 x 7/8 x 5-1/2" Inches ( 9.5 x 22 x 140 mm ). Knurl Size : 3/4" x 3/8" x 1/4" (Bore)
This knurling tool has 3 set of knurl pair of different pitches which gives different pattern as required
Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31

Combo 1- (Set of 2) 1 Wheel and 2 Wheel Pivot Head

This combo contains one single wheel knurling tool (3/4" x 3/4" x 5") and tool and 2 wheel pivot head knurling tool

Combo 2- (Set of 2) Pack of 2 Pc with Spare Knurls

This combo contains H-Type clamp knurling tool 2" Inch/ 50 mm and V-Type clamp knurling tool with spare 4 knurls

Combo 3- (Set of 3) 1 Wheel + 2 Wheels Knob + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Clamp Type Knurling Tool with an adjusting knob and 6 Wheels multi Head lathe Knurling Tool

Combo 4- (Set of 3) 1 Wheel + 2 Wheels Pivot Head + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool and 6 Wheels multi Head lathe Knurling Tool

Combo 5- (Set of 4) 1 Wheel + 2 Wheels Pivot Head +2 Wheels Knob + 2 Wheel H-Type + V-Clamp Type + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool

Combo 6- (Set of 6) 1 Wheel + 2 Wheels Pivot Head + V-Clamp Type + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool, Clamp Type Knurling Tool with an adjusting knob, Adjustable H Type Spring loaded clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool

Welcome to Buyohlic, your premier destination for precision machining tools. Introducing our flagship product, the Single Wheel Knurling Tool — the epitome of craftsmanship and engineering excellence.

Designed for the discerning machinist, our knurling tool is a testament to innovation and reliability. Crafted from tool steel and engineered to perfection, it seamlessly integrates into your machining process, delivering flawless knurling results with every operation.

Versatility meets precision with our single wheel design, allowing for intricate patterns and unparalleled control. Whether you're working with metals, plastics, or other materials, our knurling tool ensures consistent, professional-grade finishes, elevating the quality of your workmanship.

Experience the difference in performance and efficiency with BuyohlicJoin countless professionals who trust our tools to exceed their expectations, revolutionizing their machining experience one knurl at a time.

Elevate your craftsmanship. Elevate your results. Choose Buyohlic for precision without compromises.
