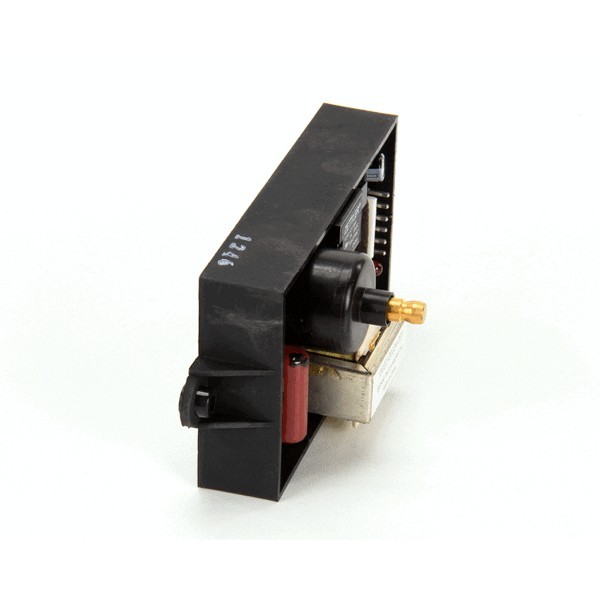

Cleveland KE603774-1 Ignition Module Direct Spark 9.25\" x 7.75\" Non-Stock OEM:
$274.79

Product Description

This item for Cleveland KE603774-1 is an ignition module designed for direct spark ignition systems. It is essential for reliable performance in HVAC applications.

• Compatible with various heating systems.
• Ensures efficient ignition with minimal energy usage.
• Utilizes CSA certifications for safety and quality.

Product Highlights

This module provides the necessary spark to ignite the fuel in gas appliances.

Product InformationStandard Information

• Unit of Stock: EA
• Category: Non-Stock OEM

Technical Specifications

• Weight: 0.775 lbs
• Length: 9.25 inches
• Width: 7.75 inches
• Height: 2.6 inches

---

---

---

Cleveland KE603774-1 Direct Spark Ignition Module / Benni Maxliter DXM 9302-1R4

$76.00

---

Cleveland KE603774-1 Ignition Module Genuine OEM Direct Spark

$119.85

---

Cleveland KE603774-1 Ignition Module Direct Spark 9.25" x 7.75" Non-Stock OEM

$274.79

---
