Clarostat RA30 LASB 100 OHM Wirewound Industrial POT For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

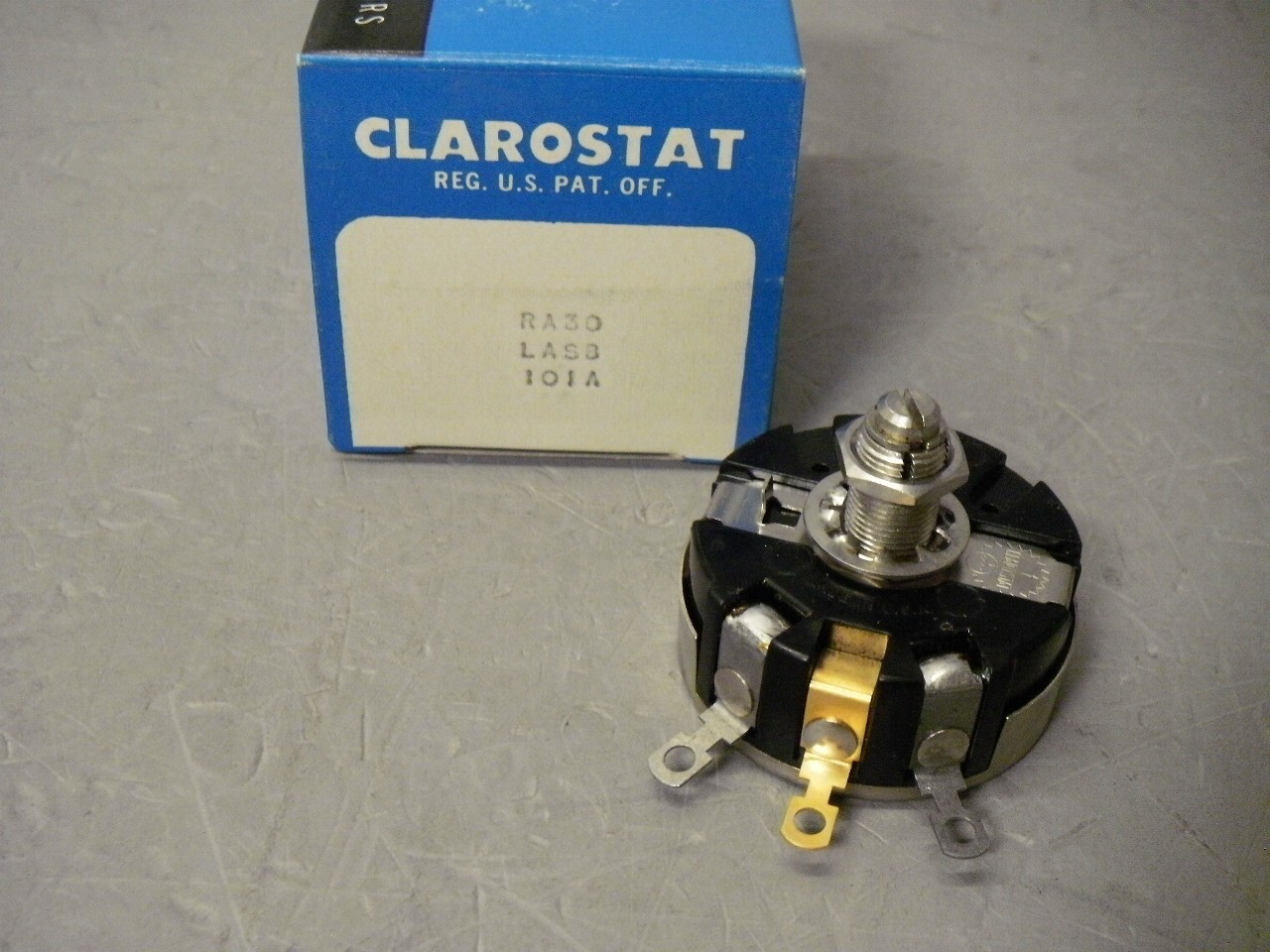

Clarostat RA30 LASB 100 OHM Wirewound Industrial POT:
$14.95

<img is for 1-POT.
The RA30 Series is a military qualified potentiometer made in accordance to MILR-
19 specifications. It offers a 4 watt power rating and a wirewound element.
FeaturesRobust nickel-plated brass shaft andbushingsWirewound elementLinear taperVery stable over the operatingtemperatureLocking style bushingMeets MIL-R-19 standards
Potentiometer Type = IndustrialElement Type = Wire WoundTerminal Type = Solder lugPower Rating = 4 WResistance Value = 100 OhmResistance Tolerance ±10 %Linearity ±5 %Bushing Thread 9,53 mm [0.375 in] x 32 NEF-2ABushing length 12,7 mm [0.5 in]Bushing Type LockingShaft Diameter 6,35 mm [0.25 in]Shaft length 15,88 mm [0.625 in]Shaft Ending SlottedBody 42.93 mm [1.69 in] diameter, ± 0.79mm [0.031 in], except at terminalstandoff
Please request combined shipping when buying multiple items.

---

---

---
