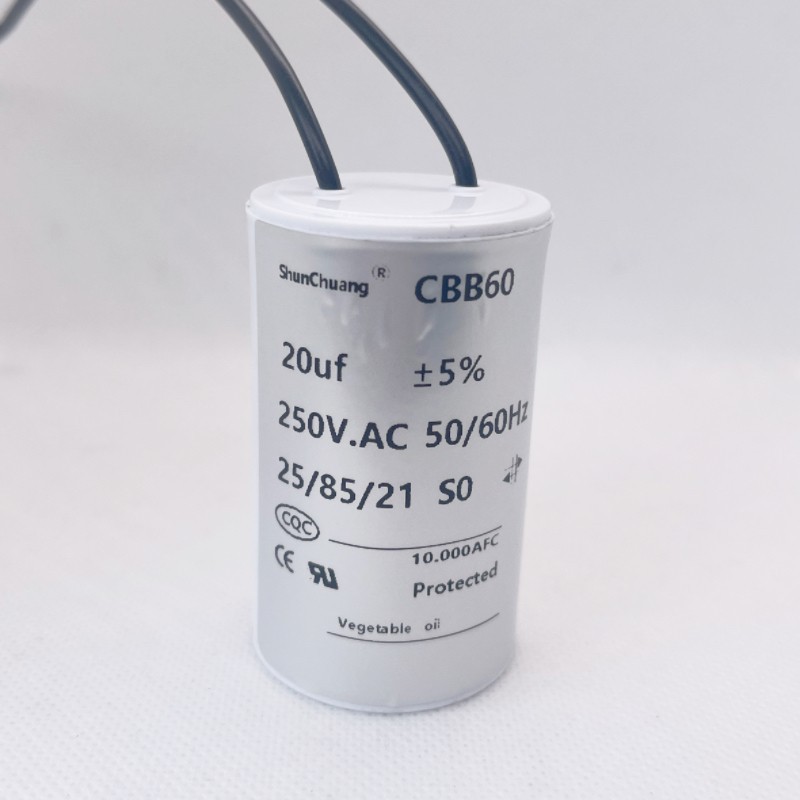

CBB60 START RUN MOTOR CAPACITOR 20-70 uF 250VAC 250V Capacitor (Wire):
$14.32

CBB60 START RUN MOTOR CAPACITOR 20-70 uF 250VAC 250V Capacitor (Wire)View more great items

Product Description:

✅ White cylindrical plastic shell, sealed and oil‑filled

✅ Capacitance tolerance: ±5%

✅ Rated Voltage: 250V AC, 50/60Hz

✅ Good self‑recovery property, low dissipation factor

✅ Built‑in safety protection for long‑hour continuous duty

✅ Two‑wire output, optional U‑type terminal connectors

✅ Widely used for water pump, washer, fan and single‑phase motors

Product Specification:

40-70uf:

Height: 100mm

Diameter: 50mm

30-35uf

Height: 70mm

Diameter: 38mm

20-25uf

Height: 60mm

Diameter: 38mm

Tolerance:±5%

Working temperature:-25 degrees to 70 degrees

Packing list:1pcs

Made of metallized polypropylene film dielectric, featuring reliable self‑healing performance, low power loss and stable capacitance with tolerance ±5%.Rated 250V AC, 50/60Hz, climate category 25/85/21. Built‑in over‑pressure explosion‑proof safety structure, service life up to 10,000 AFC cycles.Equipped with two‑wire lead‑out, available with bare wire ends or U‑shaped spade terminals for quick wiring installation.Perfectly suited for single‑phase AC motors, water pumps, washing machines, small compressors, exhaust fans and other household & light‑industrial motors for continuous running operation.
