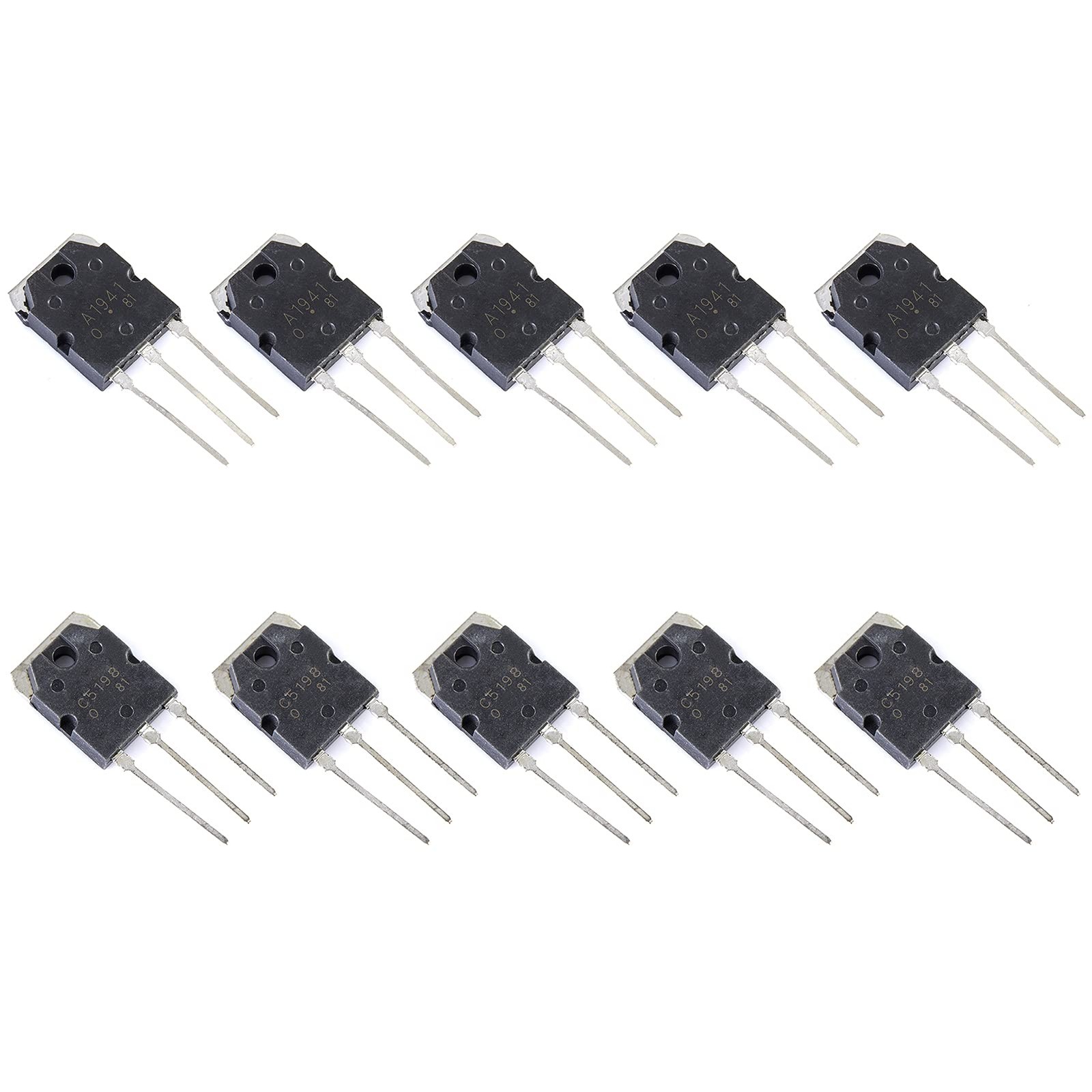

Bridgold 10pcs(5pcs 2SC5198+5pcs 2SA1941) C5198 A1941 Power Amplifier Transistor For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Bridgold 10pcs(5pcs 2SC5198+5pcs 2SA1941) C5198 A1941 Power Amplifier Transistor:
$13.49

Product Page Bridgold 10pcs(5pcs 2SC5198+5pcs 2SA1941) C5198 A1941 Power Amplifier Description:

Nature: low frequency or audio amplification (LF)_HIFI_ output pole (E)Package form: in-line packageLimit working voltage: 140VMaximum current allowable value: 10AMaximum operating frequency: 30MHZMaximum power dissipation: 100WPackage

Features:

• High breakdown voltage: VCEO = 140 V (min)
• 2SA1941, 2SC5198 complementary
• Suitable for use in 70-W high fidelity audio amplifier’s output stage
• Collector current reaches 10A
• NOTE:Exposure to absolute maximum rating conditions for extended periods may affect device reliabilit

---

---

---
