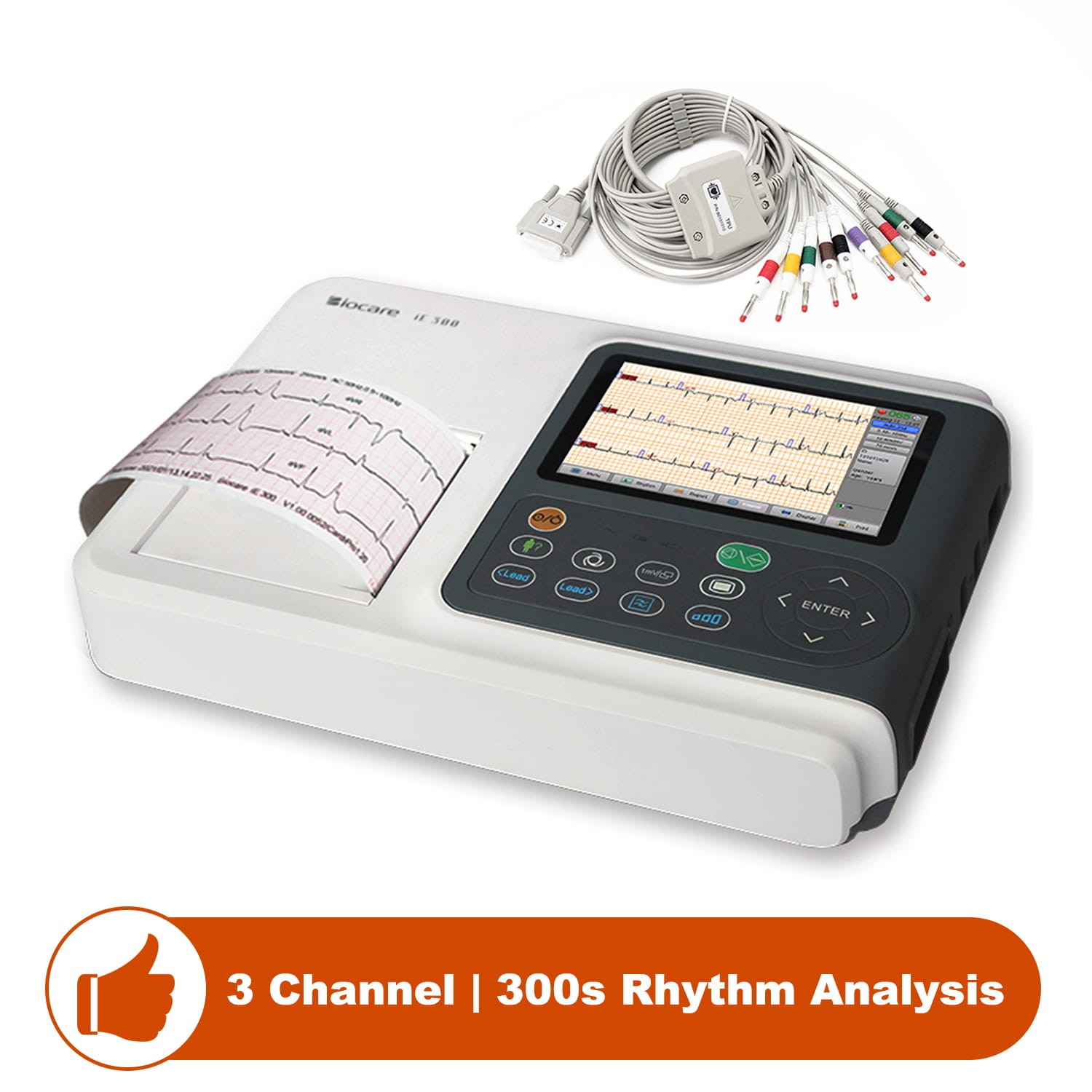

Biocare 12 Lead 3 Channel ECG Machine with CardioPro™ Printer 300s Rhythm HRV，US for Sale

Recent Threads

On eBay Now...

Biocare 12 Lead 3 Channel ECG Machine with CardioPro™ Printer 300s Rhythm HRV，US For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Biocare 12 Lead 3 Channel ECG Machine with CardioPro™ Printer 300s Rhythm HRV，US:
$689.00

About the item

3 Channel ECG Sheet：Print directly in 3 channels of data at a time.
Auto-analysed Result：300-second rhythm analysis, to help find arrhythmia easier.
Adults & Pediatrics：Support ECG tests and analysis for adults & children.
Easy Patient Management：Share in PDF, DICOM, DML format, eay transmit patient reports to hospital network.
Voice Reminder：Voice and visual reminders for lead-off, low-battery and paper runouts.
15 Language Settings：Multi-language options for operation: English, French, Spanish, Italian and more.
Compact & Portable：Light in weight. Handle for carry.

Accuracy and reliability in ECG interpretation

Biocare CardioProTM ECG analysis program, proven by CSE/AHA/MIT database
12-lead simultaneous acquisition
Complete digital filters and self-adapting filtering
Up to 300 seconds of rhythm analysis for easier in arrhythmia locating
Applied the latest Minnesota code

Technical Specifications

Physical Info
Device Dimensions：11.1'' x 7.5'' x 2.3'' (281mm x 191mm x 59mm)
Weight：2.9lb / 1.3kg
Display：5.0'' TFT LCD full-view display
Model：Biocare iE300
Tech Spec
Acquisition Mode：Simultaneous standard 12-lead
Lead Mode：Standard 12 leads
HRV：Heart Rate Variability acquisition and review
Patient Type：
Adults (older than 12 years old);
Pediatrics (age: 29 days - 12 years old);
Neonates (infants born less than 28 days)
Heart Rate Range：30 bpm~300 bpm
Acquisition Time：10~24 seconds
Sampling Rate：8,000 samples/second/channel
Frequency Response：0.01Hz～250Hz
Alarm Prompt：Patient Cable/Print head/Paper, lead off, AC interference, EMG interference, Baseline wander, and Data overflow, etc.
Common Mode Rejection Ratio (CMRR)：>115dB
ECG Interpretation：Biocare CardioPro ECG analysis program for adults and pediatrics
Measurement Parameters：Ventricular Rate, PR Interval, QRS Time Limit, QT/QTC Interval, P/QRS/T Axis, RV5/SV1 Amplitude and RV5+SV1 Amplitude
Rhythm Analysis：30～300 seconds
Waveform Freeze：Up to 300 seconds
Recorder：Thermal Dot Matrix Word Printing System
Recording Paper：80mm x 20mm, rolled paper
Record Format：1 x 12, 1 x 12 + 1R, 3 x 4, 3 x 4 + 1R, 3/2
Record Mode：Auto, Manual, Upload
Papwr Speed：(5, 6.25, 10, 12.5, 25, 50) mm/s ±5%
Power Supply
DC Power Supply：Rechargeable lithium battery, 11.1V, 2600mAh
Battery Running Time：3-hour continuous operating
Battery Charging Time：4 hours
AC Power Supply：100V-240V, 50Hz/60Hz, 80VA
Input & Output
Communication with Biocare ECG-1000 software on PC with Microsoft Windows XP/Win7/Win8/Win10 operating systems, Vista in 32/64 bits.
Input：Support external scanner
Data Storage：1500 records
Data Format：ECG, XML, JPEG, DICOM, PDF
USB Port：USB2.0 drive ONLY
