Belden 8446 6 Cond Control Audio Cable 500ft 4x22AWG + 2x18AWG Unshielded NOS For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Belden 8446 6 Cond Control Audio Cable 500ft 4x22AWG + 2x18AWG Unshielded NOS:
$299.00

Full 500 ft spool of Belden 8446 multi-conductor control and audio cable.

Specs:

• 6 conductors total: 4 × 22 AWG + 2 × 18 AWG

• Stranded tinned copper

• PVC insulation

• Chrome/gray PVC jacket

• Unshielded

• UL Type CMG / AWM Style 2576

• 150 V, 80 °C

• Suitable for low-voltage control, audio, instrumentation, and panel wiring

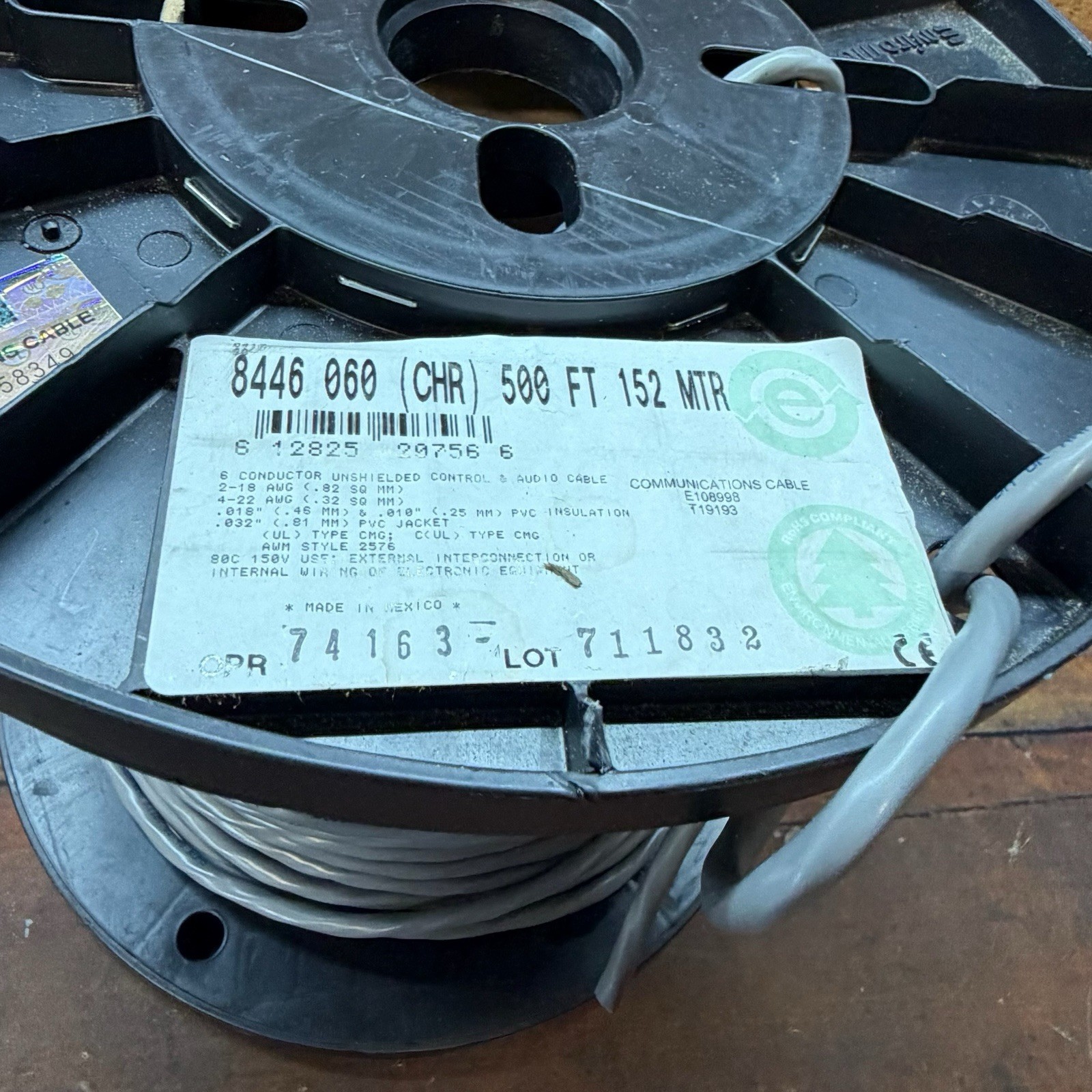

Original Belden spool, labeled 8446 060 (CHR) 500 FT / 152 MTR.

Made in Mexico, Lot 7118332.

Appears full and unused.

Ships carefully packed (this is a heavier spool). Local pickup available in the Summerville / North Charleston, SC area if preferred.

---

---

---
