BOJACK 10 Uf ±6% 10 MFD 370V/440V CBB65 Oval Run Start Capacitor For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

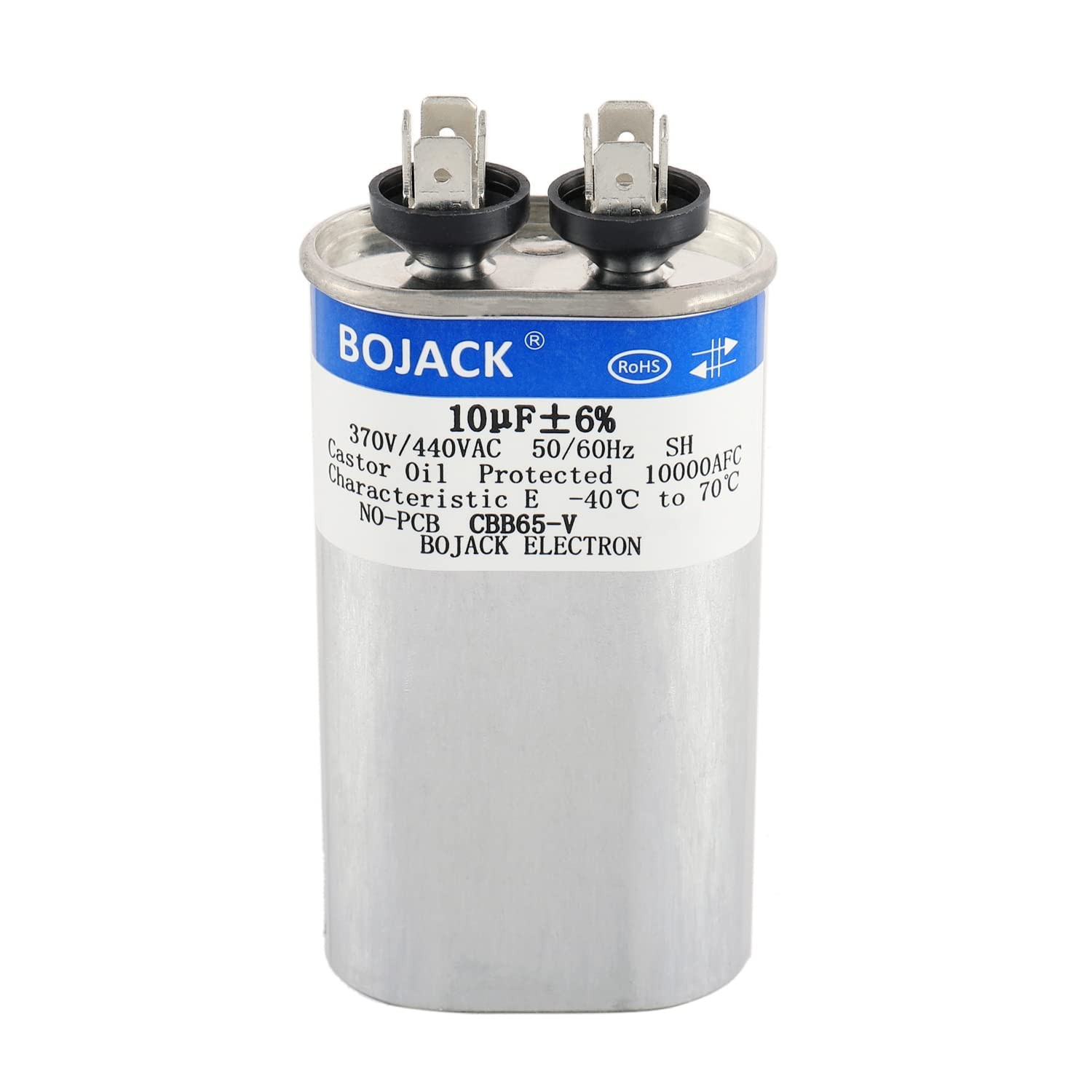

BOJACK 10 Uf ±6% 10 MFD 370V/440V CBB65 Oval Run Start Capacitor:
$17.99

BOJACK 10 Uf ±6% 10 MFD 370V/440V CBB65 Oval Run Start Capacitor

Fast Shipping!

Product Description:

BOJACK 10 uF 370V/440V CBB65 Oval Run start capacitor Model: CBB65（Universal model）
Shell material: Case Material Aluminum, Cover Material Steel
Dielectric Material: metallized polypropylene film
Capacity: 10 uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Length<2.03 inch>,Wide<1.22 inch> Height <4.13 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ This capacitor is used for a compressor motor and a fan motor
start-up and operation of AC motors with frequency of 50Hz/60Hz
such as Industrial Grade Replacement forCentral Air-Conditioners,
Heat Pumps, Condenser Fan Motors, and Compressors.It is small
in size, lightweight, heat resisting and anti-explosion. Oval run capacitor can be used to substitute round shape one with the
same MFD and volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.

• BOJACK 10 uf MFD 370V/440VAC Oval Run Start Capacitor
• Operating Temperature Range -40 ℃ to +70 ℃/ -104℉ to +158℉
• This Capacitor Will Run Compressor And Fan Motor
• UL Recognized(E187356),Engineered For Safety 10 000 AFC Anti Explosion Pressure Switch
• Replacement for :HC91CA010D , HC91CA010 , HC90AB010 , HC96AC010 , 97F9002 , 97F9002s , Z97F9002 , 97F9002BZ3 , 27L669 , TOCF10 , CR10X370 , TT-CAP-10/440 ,TP-CAP-10/440 style=\"color: rgb(0, 0, 0); font-family: "Times New Roman"; font-size: medium; text-align: center;\">31K POSITIVE REVIEWS!!FAST SHIPPING!!!!

  100% AUTHENTIC PRODUCT OR YOUR MONEY BACK GUARANTEE!

  100% satisfied customers. It says it all.
  Thank you for shopping with us!

  ---

  ---



  ---
