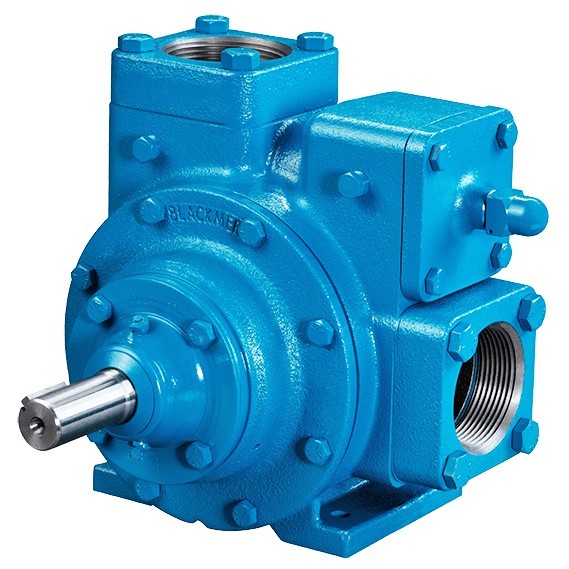

BLACKMER TX1.5-PO 1.5\" Sliding Vane Truck Pump FKM Viton Seals 56 GPM For Sale

$BLACKMER TX1.5-PO 1.5\$
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

BLACKMER TX1.5-PO 1.5\" Sliding Vane Truck Pump FKM Viton Seals 56 GPM:
$4302.00

Item SeriesPump TypePositive Displacement Sliding Vane PumpPump Size1.5\"Shaft ConfigurationSingle-EndedRotationLeft Hand / CounterclockwisePort Size1.5\" FNPTPort ArrangementSide Inlet / Top OutletBody ConstructionCast IronVanesDuravaneSeal TypeSingle Mechanical SealElastomers / O-RingsFKM / Viton (Fluorocarbon)Nominal Flow56 GPM / 212 LPMSpeed Range200–800 RPMMaximum Differential Pressure125 PSI / 8.6 barMaximum Working Pressure175 PSI / 12.1 barViscosity Range1–4,250 cPIntegral Relief ValveYesRelief Valve Spring76–100 PSIBearingsExternal Ball BearingsPump OnlyPO configuration

Blackmer\'s current TX specifications confirm the TX1.5\'s 56 GPM nominal capacity, 125 PSI differential-pressure limit, 175 PSI MAWP, cast-iron construction and 200–800 RPM operating range.

Key Features

Industrial Blackmer sliding-vane technology
Single-ended drive shaft
Left-hand / counterclockwise rotation
Heavy-duty cast-iron pump construction
1.5\" female NPT inlet and outlet
Durable Duravane vanes
FKM/Viton-compatible seals and O-rings
Single mechanical shaft seal
Integral pressure-relief valve
76–100 PSI relief-valve spring
External ball bearings
Up to 56 GPM nominal flow
Handles fluids up to approximately 4,250 cP
Designed for smooth, non-pulsating positive-displacement transfer
Sliding vanes compensate for wear to help maintain pump performance
Compact truck-mountable design

The exact configuration code is also commercially listed as a standard TX1.5 pump with Duravane vanes, single-ended LH/CCW shaft, FKM components, integral relief valve and 1.5\" FNPT ports.

Complete Description

BLACKMER TX1.5-PO 1.5\" TX Series Sliding Vane Truck Pump – FKM/Viton Seals

The Blackmer TX1.5-PO is a heavy-duty positive-displacement sliding vane pump engineered for truck-mounted and industrial liquid-transfer applications.

This configuration features a single-ended, left-hand/CCW drive shaft, durable Duravane vanes, FKM/Viton elastomers, a single mechanical seal, external ball bearings and 1.5\" FNPT inlet and outlet connections. An integral pressure-relief valve equipped with a 76–100 PSI spring provides additional system protection.

The TX1.5 delivers a nominal capacity of approximately 56 GPM (212 L/min) and is rated for up to 125 PSI differential pressure and 175 PSI maximum working pressure. Blackmer\'s current specifications give this model an operating speed range of 200–800 RPM.

Blackmer TX Series pumps are designed for demanding transfer applications where reliable self-priming, consistent flow, and long service life are important.

Typical Applications

Suitable applications, subject to seal and fluid compatibility, include:
