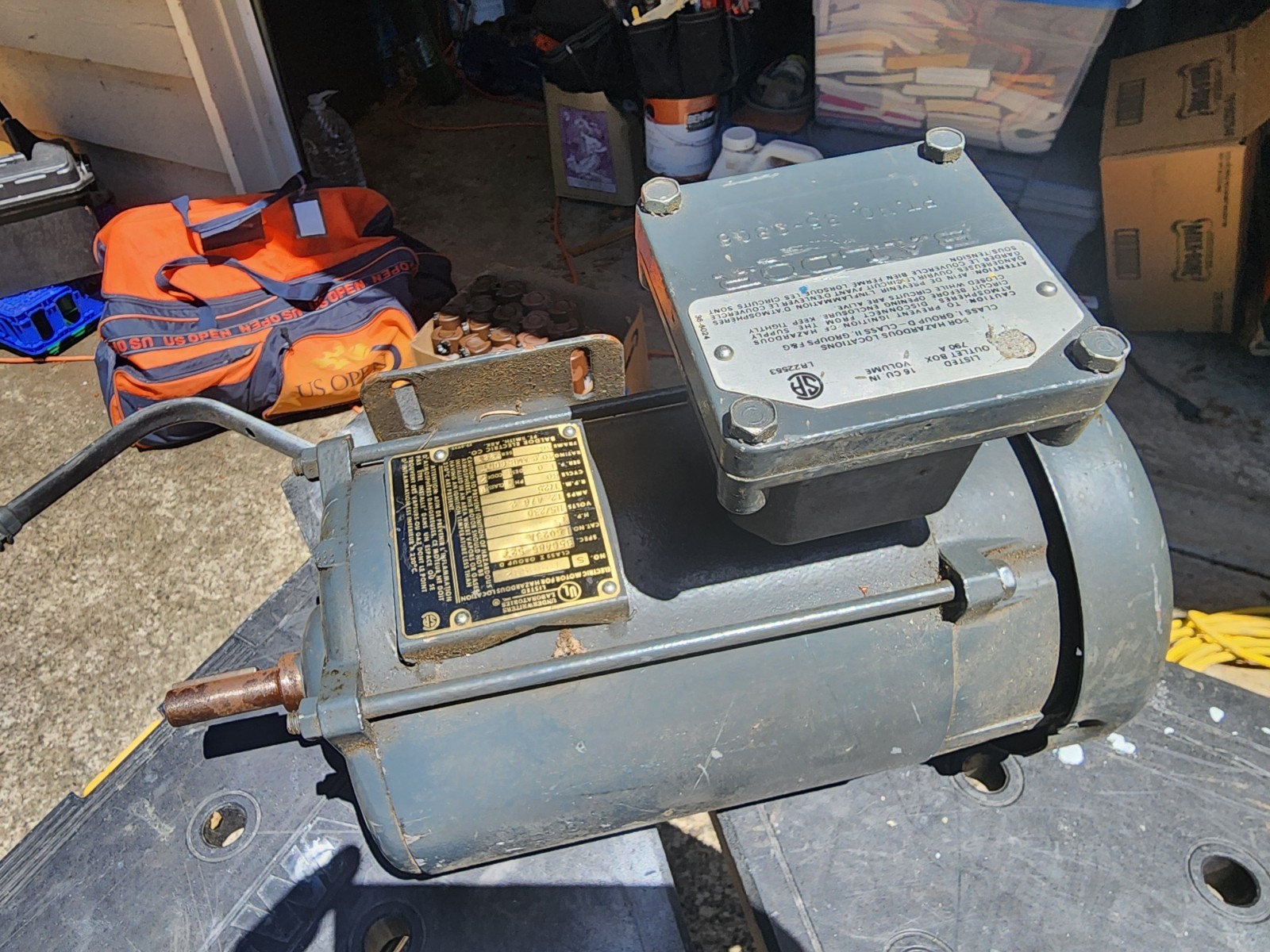

BALDOR Hazardous Environments MOTOR 1 HP MODEL L5023A 1725 RPM:
$495.00

The Baldor-Reliance L5023A is a 1 HP, 1725 RPM, single-phase electric motor designed for hazardous environments. It features an explosion-proof (XPFC) enclosure, operates on dual-voltage (115/230V), and is built into a rigid 56-frame. It is ideal for pumps, conveyors, and fans handling combustible dusts or vapors. [1, 2, 3, 4]

Key Specifications

Horsepower: 1 HP

Speed: 1725 RPM

Voltage: 115/230 V (60 Hz)

Full Load Amps: 13.0 A at 115V, 6.5 A at 230V

Frame Size: 56 (Foot/Rigid Mount)

Enclosure: XPFC (Explosion-Proof Fan Cooled)

Phase: Single

Weight: ~48 lbs [1, 2, 3, 4]

Hazardous Location Ratings

Approval: UL and CSA listed

Class & Group: Class I, Group D / Class II, Group F & G (suitable for specific combustible gases and dusts)

Thermal Protection: Equipped with automatic thermal overload

Product Status: This motor is largely listed as discontinued by the manufacturer, but some suppliers still carry stock or new-condition models. [1, 2]
