AutomationDirect CLICK PLC C0-00DR-D CPU Unit w/ C0-01AC Power Supply 24V TESTED For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

AutomationDirect CLICK PLC C0-00DR-D CPU Unit w/ C0-01AC Power Supply 24V TESTED:
$150.00

Koyo CLICK C0-00DR-D Basic PLC with C0-01AC AC Power Supply // UNIT_ID: C0-00DR-D + C0-01AC Koyo CLICK C0-00DR-D Basic PLC + C0-01AC AC Power Supply Koyo CLICK C0-00DR-D C0-01AC 8 DC In / 6 Relay Out 24 VDC 2x RS-232 Used > Overview

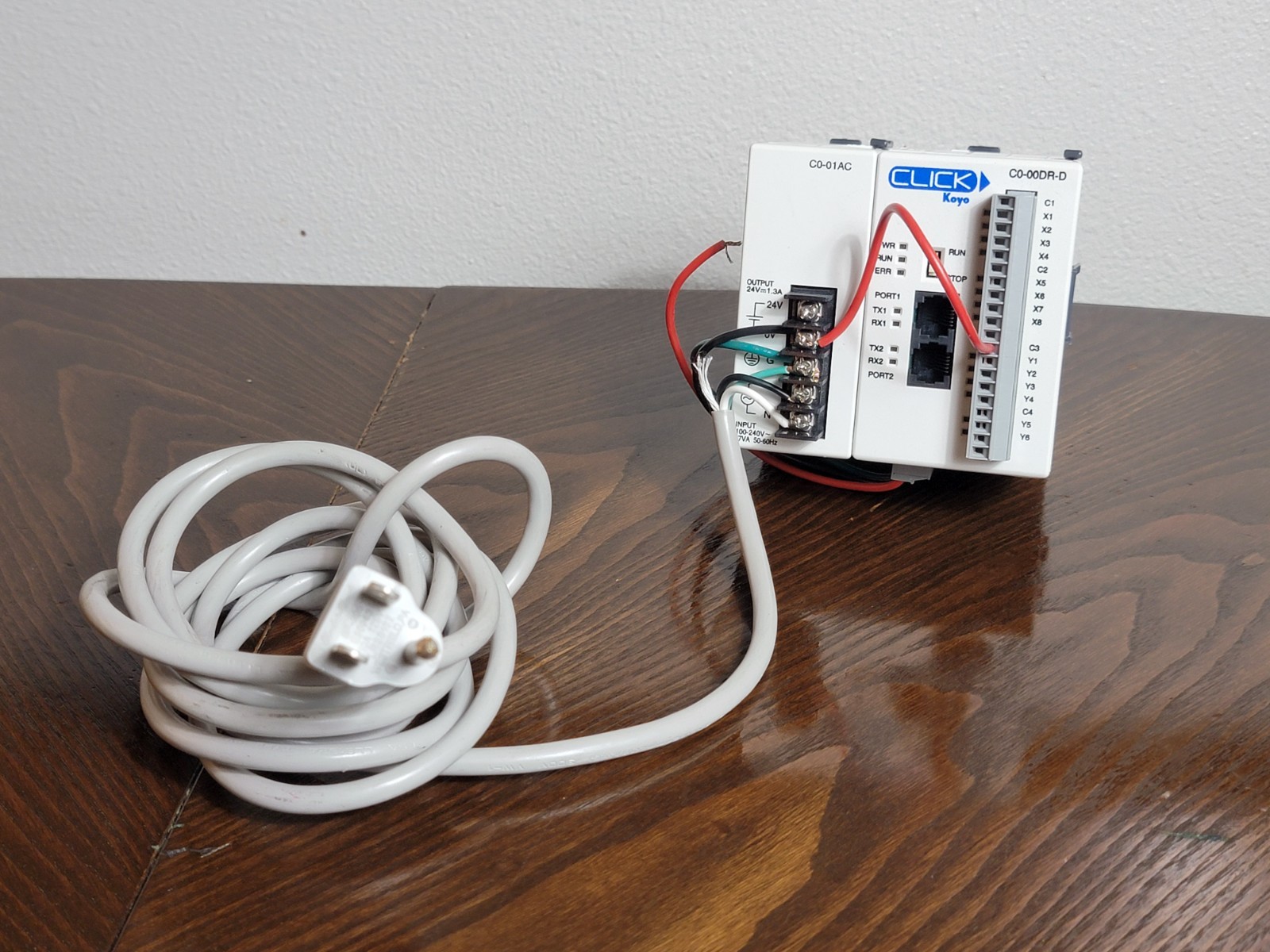

Koyo CLICK micro PLC bundle: a C0-00DR-D Basic PLC unit (8 DC inputs, 6 relay outputs, two RS-232 RJ12 serial ports, removable terminal block) paired with a C0-01AC AC power supply (100–240 VAC in, 24 VDC 1.3 A out). The PLC requires 24 VDC power, and the C0-01AC provides it directly from AC mains, so this pair is a complete, compact controller for a bench or small machine. Programmed with the free CLICK programming software. Both units are shown side by side with bench-test wiring attached, exactly as pictured.

> Specifications Brand / SeriesKoyo CLICK PLC ModelC0-00DR-D (Basic PLC) PLC Power Required24 VDC Discrete Inputs8 points, 24 VDC sinking/sourcing, 2 isolated commons (C1, C2), 4 points each Discrete Outputs6 points, Form A (SPST) relay, 6–240 VAC / 6–27 VDC, 1 A per point, 2 isolated commons (C3, C4) Serial Ports2x RS-232 (RJ12): Port 1 programming/monitoring; Port 2 Modbus RTU master/slave and ASCII in/out; up to 115.2k baud Ladder Memory8k steps Terminal BlockRemovable, screw-clamp I/O terminal strip Power Supply ModelC0-01AC Power Supply Input100–240 VAC, 50–60 Hz Power Supply Output24 VDC, 1.3 A > Condition Used — Bench-Wired as Pictured Both housings are clean with no cracks or damage observed on visual inspection. Labels, LED windows, RUN/STOP switch, RJ12 ports, and terminal blocks are intact and legible. The units are sold with the temporary bench-test wiring shown in the photo: a power cord with stripped wire ends terminated directly in the C0-01AC terminal block, plus red and black jumper leads (one loose stripped lead end) between the power supply and the PLC. This is test wiring, not a certified power cord, and should be inspected and rewired per the CLICK hardware manual before permanent installation. Review all photos closely. > What's Included

1x Koyo CLICK C0-00DR-D Basic PLC unit, as pictured
1x Koyo CLICK C0-01AC AC power supply, as pictured
Attached bench-test power cord and jumper wiring, as pictured

> Not Included

No programming cable, software disc, DIN rail, or manuals included

LOCAL PICKUP: Vancouver, WA — Cash or Venmo. Review all photos closely, as they are part of the item description. Message with questions before purchase.
