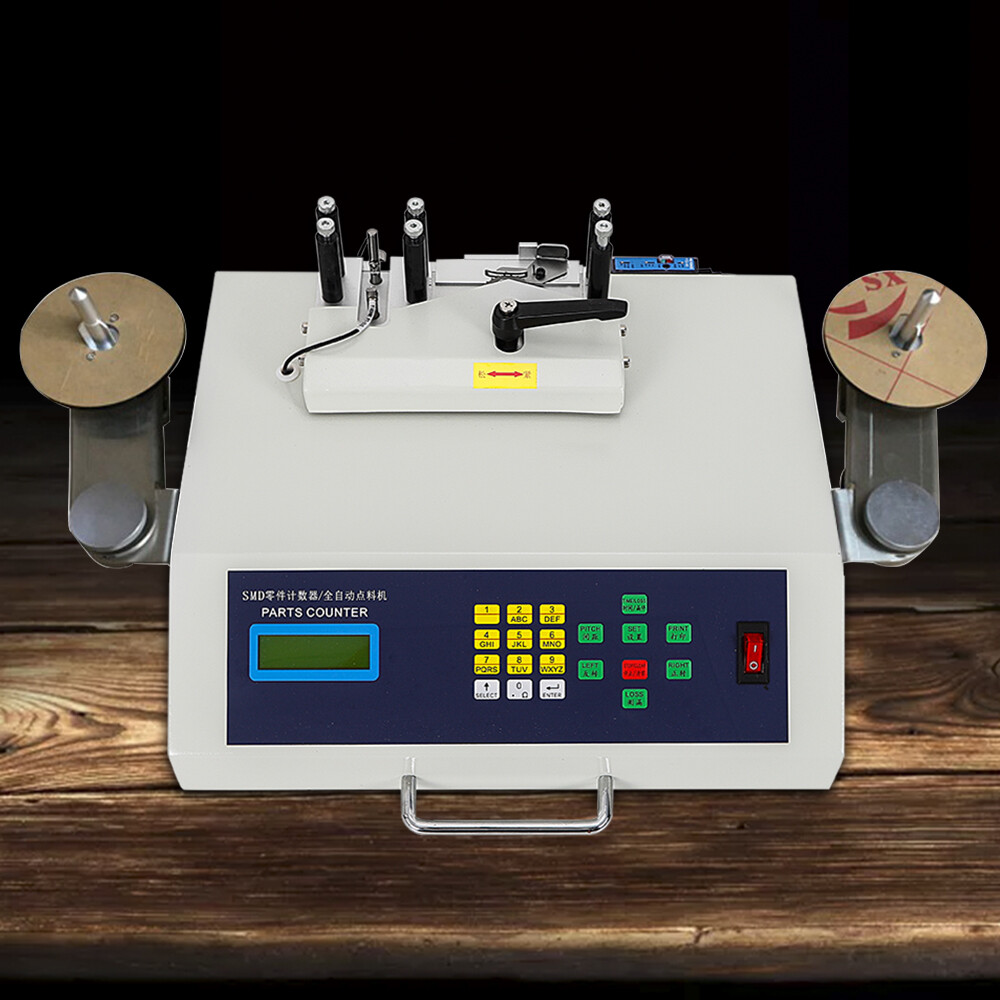

Automatic Counting Machine SMT SMD Parts Component Counter +Leak-detection NEW:
$343.94

SpecificationColor: WhiteShape: Rectangle Style: ModernDisplay: 3-digit LCDPower Cord Length: 1.5m/ 4.9 ftAssembly Required: YesNumber of Items: 1Power Supply: AC110V,60HZ Power: 25WCounting Range: -99999~99999PCSMaterial: Aluminum, SteelProcess: Laser Cutting ( Gear Sheet ), Powder Coating ( Surface ), Computer Gong Production Process ( Machined Parts )Pitch: 2mm/ 0.04in, 4mm/0.07in, 8mm/ 0.16in,10mm/ 0.31in, 12mm/ 0.47in, 16mm/ 0.63in, 24mm/ 0.94in, 32mm/ 1.26in, 44mm/ 1.73in, 56 mm/ 2.2inWidth: 4mm/0.07in, 6mm/ 0.24in, 8mm/ 0.16in, 12mm/ 0.47in, 16mm/ 0.63in, 24mm/ 0.94in, 32mm/ 1.26in, 44mm/ 1.73in, 56mm/ 2.2in Package Included1 * SMT/SMD Components Counter1* Power Cord1* Mirror1* Chinese and English ManualAll Accessories for AssemblyAutomatic Counting Machine SMT SMD Parts Component Counter +Leak-detection NEWWelcome to Zshinhpy 😘

Operation Methods:

Connect the power cord to the host and connect the AC110V power supply.
Turn on the POWER switch of the machine panel, and the LCD panel will shine.
Press PITCH to set the spacing of parts to be counted and press \"ENTER\". Place the parts to count on the left side tray.
Manually pull out the material belt and clamp it between the material plate and counting gear, and align the intermediate hole of the first part and blank space to the middle line of the material plate.
Press the \"STOP/RESET\" button for 2 seconds to return the number to zero. Note: when pulling the material belt, the counting gear will rotate and count.
Press the \"SETTING\" button to switch to manual and automatic mode. If you choose automatic mode, you must input the quantity you want to count. Otherwise, press \"FORWARD\" and the motor will not rotate.
Pull the material belt by hand and wind it to the empty material plate. Press \"FORWARD /RIGHT\" to count.
The motor will stop when the quantity arrives. Due to the inertia principle, the number of counts may be more or less than the set value of about 1, which can be manually rotated to the LCD display set value in the direction of the material disk, that is, the number of parts.
After counting, press the \"REVERSE /LEFT\" tape and then roll it back to the original LEFT panel, and then stop rotating.

Installation

Mirror Installation

Use the hexagonal plate hand to screw out the two hexagonal screws behind the pointing machine.
Align the mirror with the hole of the dispenser and then screw on the screws.

Pallet Installation

Use the screwdriver to screw up the 2 screws on the rotating shaft.
Align the tray with the hole of the shaft and lock the screws.

Application

It is suitable for belt elements made of SMD material and for pulleys of any diameter, and widely used for counting the quantity of SMD materials such as resistors, magnetic beads, capacitors, diodes, ICs, various chips, and LED beads. It can be applied in the electronic product manufacturing industry, SMT processing factory, EMS professional electronic manufacturing service factory, SMD parts manufacturer, SMD parts supplier, parts counter, and tape packaging manufacturer for fully automatic IQC incoming inspection, counting of tape packaging and checking of missing parts, inventory management, and other operations.

Specification

Color: White

Shape: Rectangle

Style: Modern

Display: 3-digit LCD

Power Cord Length: 1.5m/ 4.9 ft

Assembly Required: Yes

Number of Items: 1

Power Supply: AC110V,60HZ

Power: 25W

CountingRange: -99999~99999PCS

Material: Aluminum, Steel

Process: Laser Cutting ( Gear Sheet ), Powder Coating ( Surface ), Computer Gong Production Process ( Machined Parts )

Pitch: 2mm/ 0.04in, 4mm/0.07in, 8mm/ 0.16in,10mm/ 0.31in, 12mm/ 0.47in, 16mm/ 0.63in, 24mm/ 0.94in, 32mm/ 1.26in, 44mm/ 1.73in, 56 mm/ 2.2in

Width: 4mm/0.07in, 6mm/ 0.24in, 8mm/ 0.16in, 12mm/ 0.47in, 16mm/ 0.63in, 24mm/ 0.94in, 32mm/ 1.26in, 44mm/ 1.73in, 56mm/ 2.2in

Product Size: 76.5*30*19cm/ 30.12*11.8*7.48 in

Net Weight: 9.5kg/20.9 lbs

Gross Weight:10 kg/ 22.05 lbs

PackageIncluded

1 * SMT/SMD Components Counter

1* Power Cord

1* Mirror

1* Chinese and English Manual

All Accessories for Assembly
