Atlas Sound APF-15T 15W Loudspeaker - Gray For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Atlas Sound APF-15T 15W Loudspeaker - Gray:
$60.00

Atlas Sound / AtlasIED APF-15T Omni-Purpose 15-Watt Flanged Paging Horn Loudspeaker
The APF-15T is a commercial paging and intercommunication horn speaker with a built-in transformer for 25V, 70.7V and 100V distributed speaker systems. Its seven-position Vari-Tap selector allows the installer to select the appropriate wattage and impedance for the connected amplifier system.
Features include a high-efficiency compression driver, double re-entrant horn design, weather-resistant metal construction and gray baked-epoxy finish. The unit may be flange mounted or recessed into a compatible wall, ceiling, panel, baffle or enclosure.
Specifications:
• Maximum continuous power: 15 watts• Frequency response: 600 Hz to 14 kHz nominal• Sensitivity: 104 dB at 1 watt / 1 meter• Dispersion angle: 95 degrees• Speaker-line compatibility: 25V, 70.7V and 100V• Operating temperature: -40°C to 70°C• Flange diameter: 6-15/16 inches• Body diameter: 5-5/8 inches• Depth: 5-3/16 inches• Unit weight: approximately 2.6 pounds• Color: gray
This is a passive commercial distributed-audio loudspeaker. It does not connect directly to household AC power and is not represented as an 8-ohm consumer stereo speaker. A compatible commercial paging amplifier and proper transformer-tap selection are required.
Weather-resistant does not mean waterproof or submersible. Grilles, enclosures, mounting rings, wiring and mounting hardware are not included unless they are visible in the photographs.

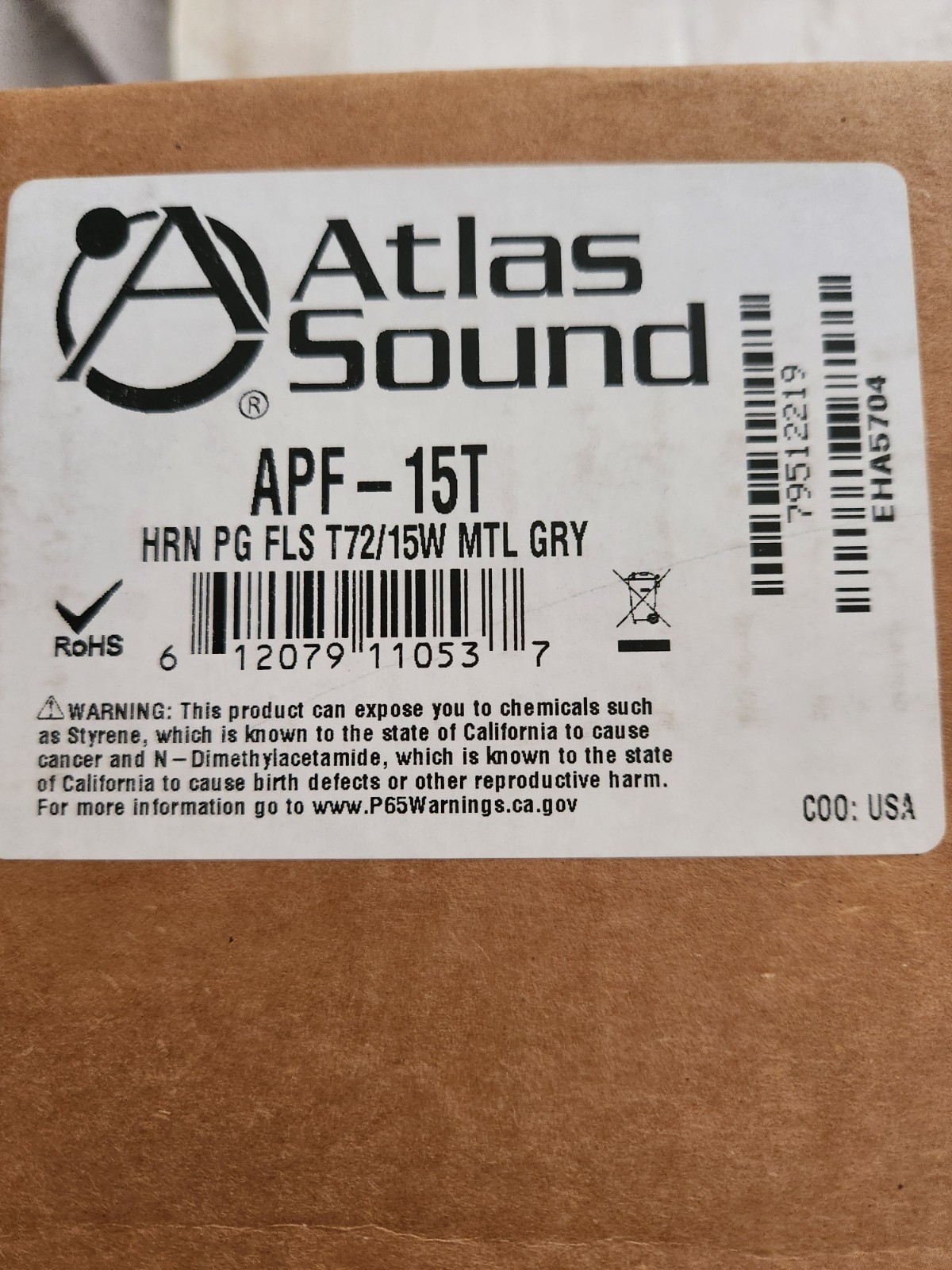

Please carefully review all photographs. You will receive only the item and accessories or packaging shown. Buyer is responsible for confirming compatibility with their amplifier, speaker line voltage, enclosure, and mounting hardware.
