Arcolectric C1522BA ,C1522AAbb, Momentary (ON)OFF(ON) Rocker Switch MOM For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

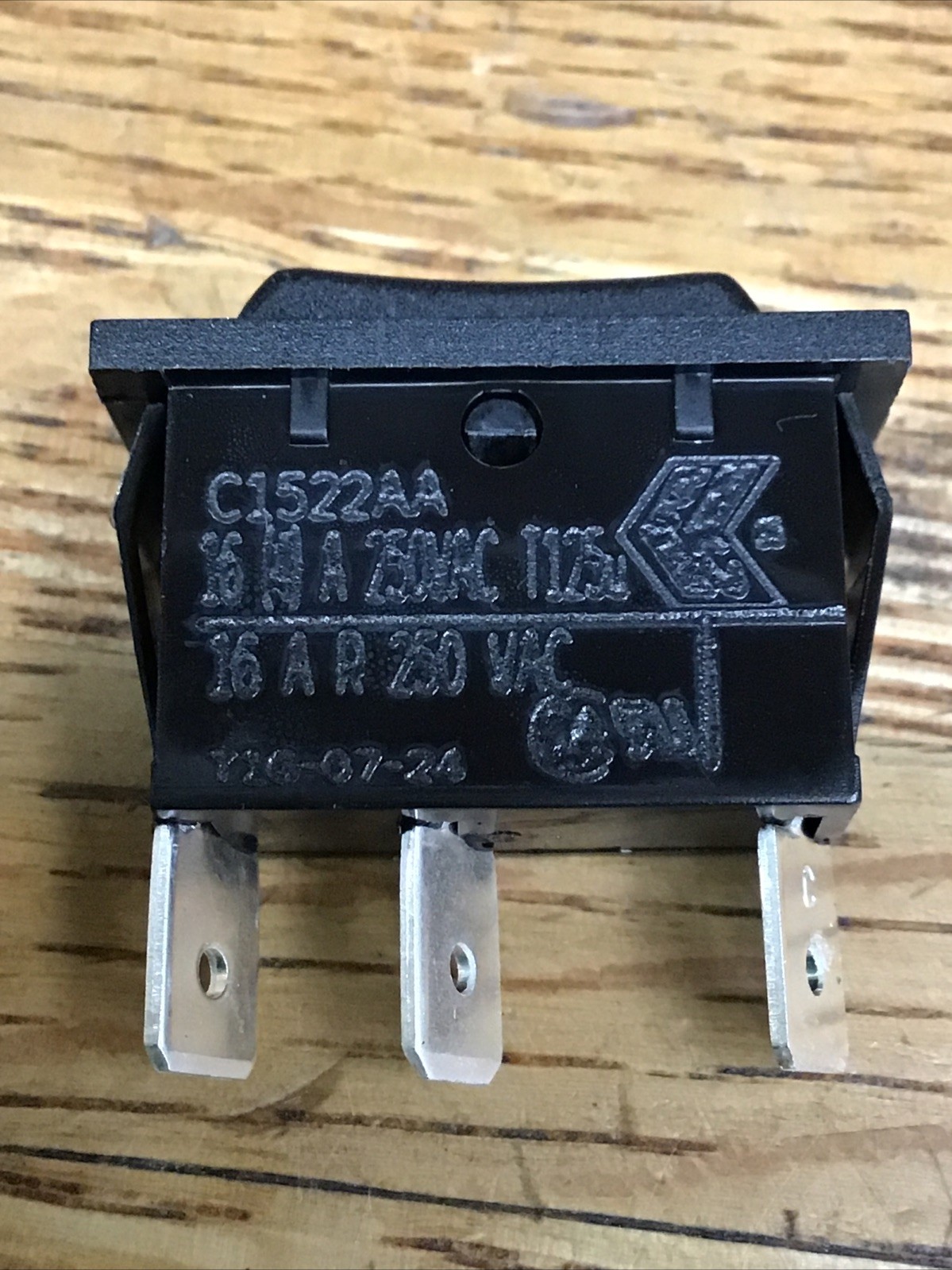

Arcolectric C1522BA ,C1522AAbb, Momentary (ON)OFF(ON) Rocker Switch MOM:
$11.80

New black Matt in color fits standard 1/2” x 1-1/8” hole.metric sizes are 27.3 by 12.3 cut out hole dimensions. The order # for this exact switch is C1522AABB or c1522AAAA all are the same switch,common usage is R V awning , up-down or in-out of most anything . Switch rests at center position momentary on in up or down position.Ships normally same or next day from Huntington Beach,California.

---

---

---

Arcolectric C1522BA ,C1522AAbb, Momentary (ON)OFF(ON) Rocker Switch MOM

$11.80

---

Lot Of 2 Arcolectric C1522BA C1522AAbb Momentary (ON)OFF(ON) Rocker Switch MOM

$22.00

---

(10) Arcolectric C1522BA C1522AA Momentary (ON)OFF(ON) Rocker Switches M.O.M.

$97.40

---
