Antique Vintage American Optical M603B Lensometer Brass Optometry Instrument For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Antique Vintage American Optical M603B Lensometer Brass Optometry Instrument :
$359.00

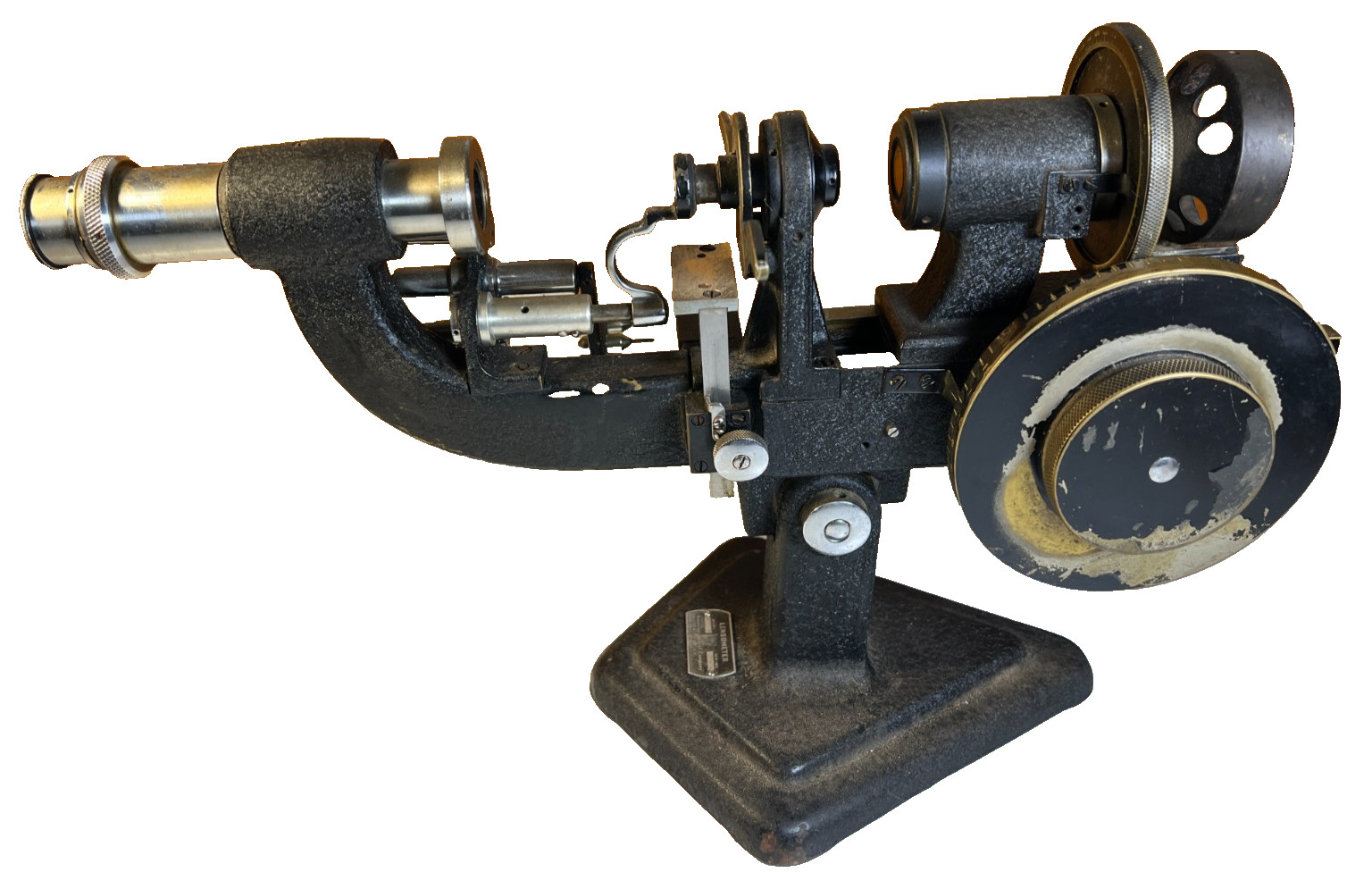

Vintage American Optical M603B Lensometer — Brass Details, Heavy Construction & Wonderful Machine Age Character

A substantial piece of American optical history, this American Optical Company Model M603B Lensometer combines precision mechanical construction with outstanding industrial display appeal. Weighing approximately 25 pounds and measuring 17¼\" long × 11½\" tall, it features a dramatic arrangement of optical tubes, oversized adjustment wheels, finely knurled controls, and exposed mechanisms.

The textured black finish contrasts beautifully with silver-colored fittings and numerous brass components. Golden brass shows along the machined slides, graduated wheel, and worn edges, highlighting the craftsmanship of an instrument built for professional service.

One of its most compelling details is the broad arc of wear around the large adjustment dial. Repeated handling has worn through the dark finish, exposing the metal beneath—a tangible record of years spent at an optical workbench. That wear gives this instrument a character that a pristine example simply would not have.

What It Was Used For

A lensometer was an essential tool in an optician’s office or optical laboratory, used to measure spectacle lenses and verify that their optical properties matched the intended prescription.

An operator placed a lens against the central measuring opening, secured it with the holder, and looked through the eyepiece at an illuminated target. Turning the large power wheel brought the target into focus, allowing the lens power to be read from the instrument’s scale. Additional adjustments helped determine the axis of an astigmatic correction.

This allowed optical professionals to check newly made glasses or determine the prescription in an existing pair. The visible three-point marking mechanism was used to place alignment marks on a lens, helping establish its position for subsequent finishing and mounting.

The Maker & Its History

American Optical traced its origins to William Beecher’s spectacle-making business in Southbridge, Massachusetts, in 1833. Organized as the American Optical Company in 1869, the business became a major manufacturer of eyeglasses, lenses, scientific instruments, and ophthalmic equipment.

AO introduced its first commercially successful Wellsworth Lensometer in 1921. The later 603 / Junior Lensometer family appeared in 1938, continuing the development of an instrument that became a familiar fixture in optical practices.

This example is tentatively dated to the 1940s–1950s, although the design remained in production over an extended period and its exact manufacturing year has not been established.

The instrument is clearly marked Made in U.S.A. American Optical’s historic headquarters were in Southbridge, while related instruments were manufactured through its Spencer/AO operation in Buffalo, New York. Buffalo is a likely manufacturing location for this example, although its identification plate does not specify a American Optical Company

Instrument: Lensometer / manual spectacle lensmeter

Model: M603B

Estimated period: Circa 1940s–1950s; exact year unconfirmed

Origin: Made in U.S.A.

Length: Approximately 17¼\"

Height: Approximately 11½\"

Weight: Approximately 28.13 pounds

Heavy cast-metal construction with numerous brass components

Textured black finish with contrasting silver-colored fittings

Large graduated adjustment wheel and finely knurled controls

Viewing eyepiece, central lens holder, adjustable spectacle rest, and three-point marking mechanism

Electrical plate marked 115 volts AC–DC, 10 watts

Lamp specification marked 10-watt lamp, catalogue age and use wear, including finish loss, scratches, surface discoloration, and wear to the exposed metal fittings. The large adjustment wheel has particularly pronounced handling wear, as shown in the photographs. The maker’s identification plate and electrical specification plate remain present and legible.

Operational condition and calibration have not been verified. Offered as an untested vintage instrument for collection, display, restoration, or parts. No claim is made regarding measurement accuracy or completeness. Please examine all photographs carefully for the components included and their condition.

An impressive addition to a scientific-instrument collection, an optometrist’s office display, or a room furnished with industrial antiques. Its substantial weight, exposed brass, and beautifully worn controls give it the unmistakable presence of a precision tool that earned its place on the bench.
