Analog Devices ADSP-21020 EZ-LAB Evaluation BoardRev D DSP ADSP-2111 AD1849 1992:
$129.99
Analog Devices ADSP-21020 EZ-LAB Evaluation BoardRev D DSP ADSP-2111 AD1849 1992

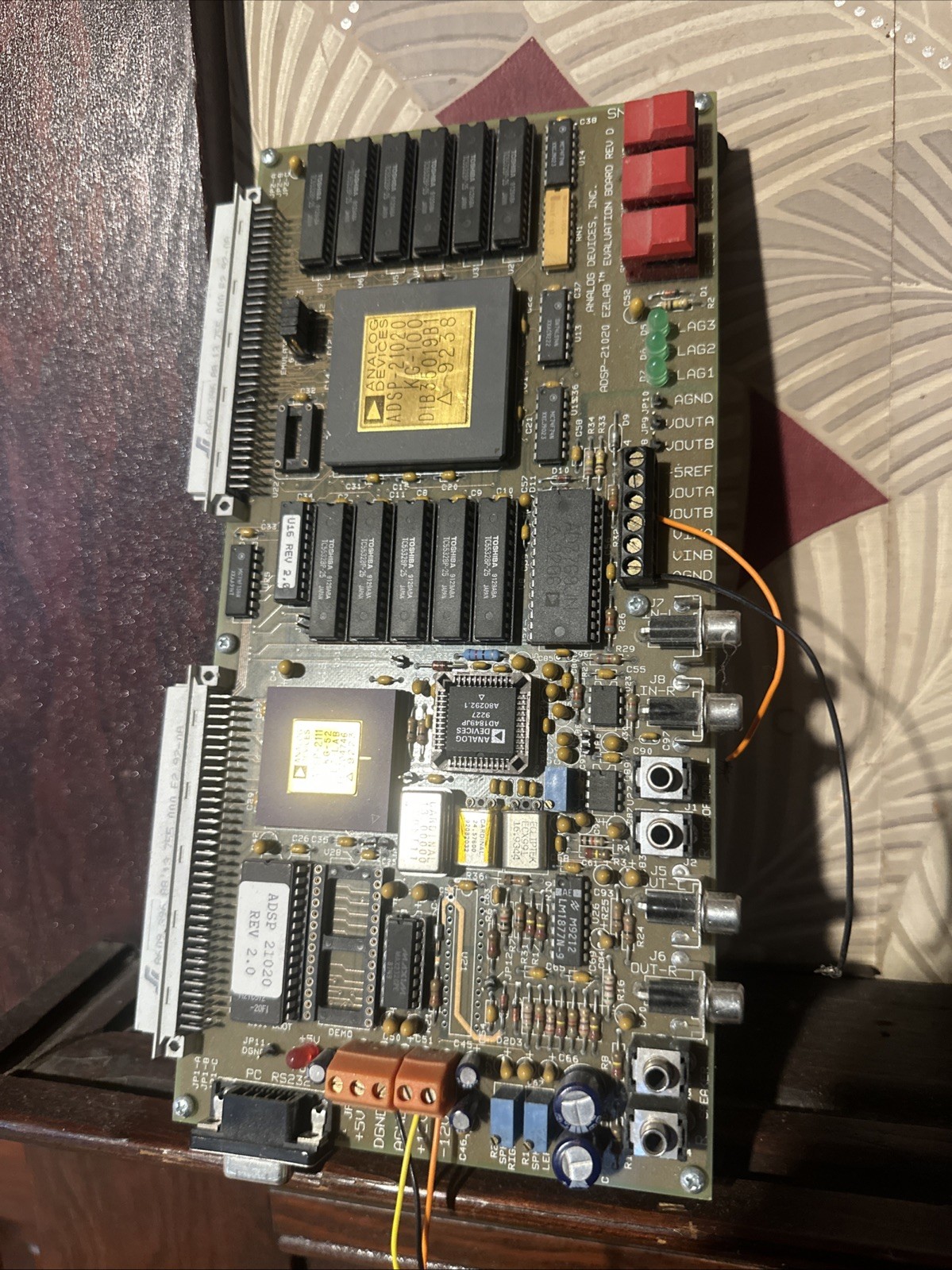

Vintage Analog Devices ADSP-21020 EZ-LAB evaluation board (Rev D), circa 1992, tested and working. The ADSP-21020 was Analog Devices' first 32-bit floating-point DSP and the predecessor to the SHARC family. A rare piece for DSP collectors, engineers and vintage hardware enthusiasts.
Key components
• Analog Devices ADSP-21020 KG-100 32-bit floating-point DSP (ceramic PGA, gold lid, 1992)
• Analog Devices ADSP-2111 EZ-LAB host processor (ceramic PGA, gold lid, 1992)
• Analog Devices AD1849JP SoundPort stereo audio codec
• National LM1877 dual audio power amplifier
• Toshiba SRAM (program/data memory)
• Socketed EPROMs labeled "ADSP 21020 REV 2.0" and "U16 REV 2.0"
I/O & features
• Stereo audio in/out (RCA) plus additional jacks and speaker outputs
• Analog VIN/VOUT screw terminals
• PC RS-232 port
• Emulator port
• 2x 96-pin DIN expansion connectors
• 3 flag LEDs, 3 push-button switches
• Screw-terminal power input (+5V, ±12V)
Condition
• Tested and working
• Board only. No power supply, cables, software or manuals included.
• Normal age-related wear. Please see photos.
Shipping: Ships via UPS, carefully packed in protective anti-static/bubble wrapping inside a sturdy box to make sure it arrives safely.
Please review all photos carefully. Feel free to message me with any questions!
