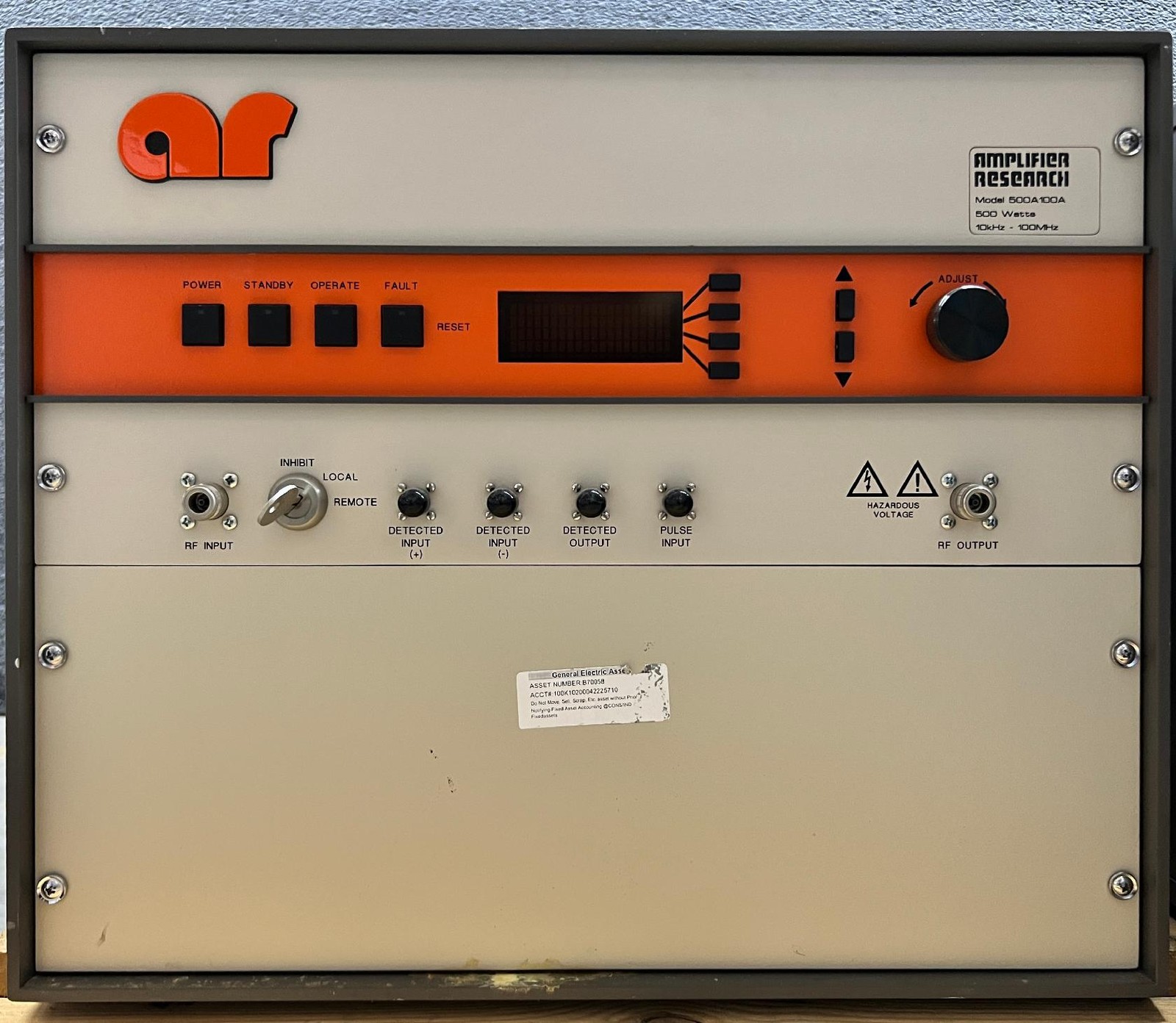

Amplifier Research 500A100A Solid State Amplifier, 10 kHz - 100 MHz, 500 W:
$3500.00
Amplifier Research 500A100A Solid State Amplifier, 10 kHz - 100 MHz, 500 WItem- Make: Amplifier Research
- Model: 500A100A
- Options: AS-IS
SOLD AS-IS, UNIT DOESN'T WORK
Sold AS-IS, For Parts.
No output. Slight burn smell. Broken key.
- Disassembled and checked power supply.
- 38VDC power supply ok.
- 28VDC power supply bad.
- Removed power supply from unit.
- 28 volt power supply was found to be installed with bottom connector bent over and mating pins bent.
- Straightened all pins upright and bent the 28v modules connector back into place.
- Now we get the 28VDC.
- The power amp unit was reassembled and setup for test.
- No output from unit and a slight smell of something burnt.
