On eBay Now...Allmotion：High Resolution Stepper Motor Drive ,2A10-40VDC，EZHR17EN(V7.05F1) For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

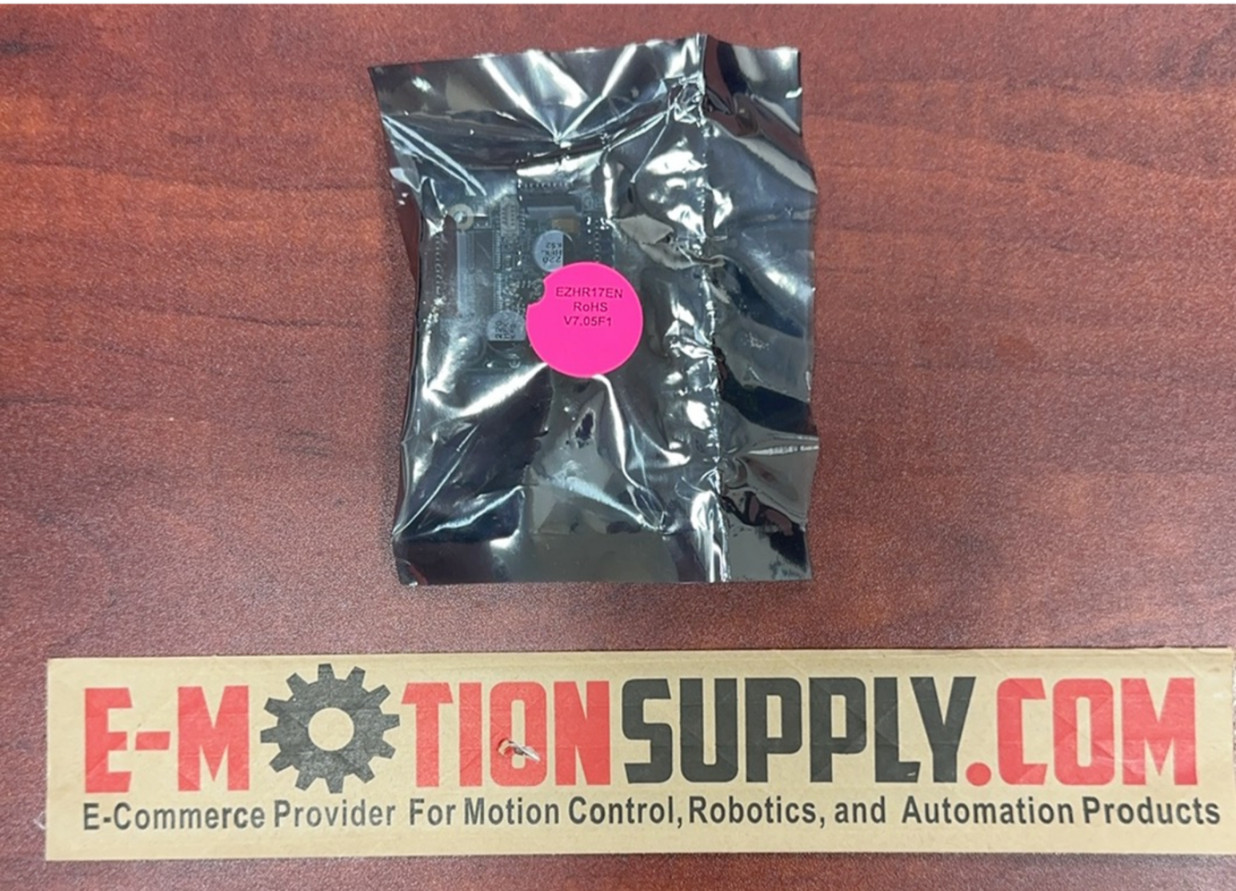

Allmotion：High Resolution Stepper Motor Drive ,2A10-40VDC，EZHR17EN(V7.05F1):
$307.00
AllMotion: High Resolution Stepper Motor Driver Controller EZHR17ENFeatures
- Single 4 wire bus linking up to 16 stepper motor controllers
- 2 Amp Chopper (PWM) Driver
- Dual Encoders, position maintain mode
- Selectable step resolution from 1/2 to 1/256th step
- Up to 20 million Microsteps / second
- Operates from 12V to 40V
- RS232, RS485 or USB based Communications
- On Board EEPROM For User Program storage
- Standalone operation with no connection to a PC
- Execution Halt/Branch pending switch closure
- Pre-wired for OptoSwitch inputs (see wiring diagram)
- Fits on the back of a size 17 stepper motor
- Industry standard communications protocol
- Homes to an Opto or Switch closure with a single command
- Fully programmable ramps and speeds
- Four Digital I/O and two 1 Amp Power On/Off Drivers included
- Switch selectable address
- Software selectable "Move" and "Hold" currents
- Hold Current automatically selected upon move completion
- Optional Second Stepper on Miniature Daughter card
- Optional offerirectional DC Driver on Miniature Daughter Card
- 4 ADC Inputs, Branch Halt on ADC Value
- RoHS compliant
Allmotion：High Resolution Stepper Motor Drive ,2A10-40VDC，EZHR17EN(V7.05F1)
$299.00
Allmotion：High Resolution Stepper Motor Drive ,2A10-40VDC，EZHR17EN(V7.05F1)
$307.00
