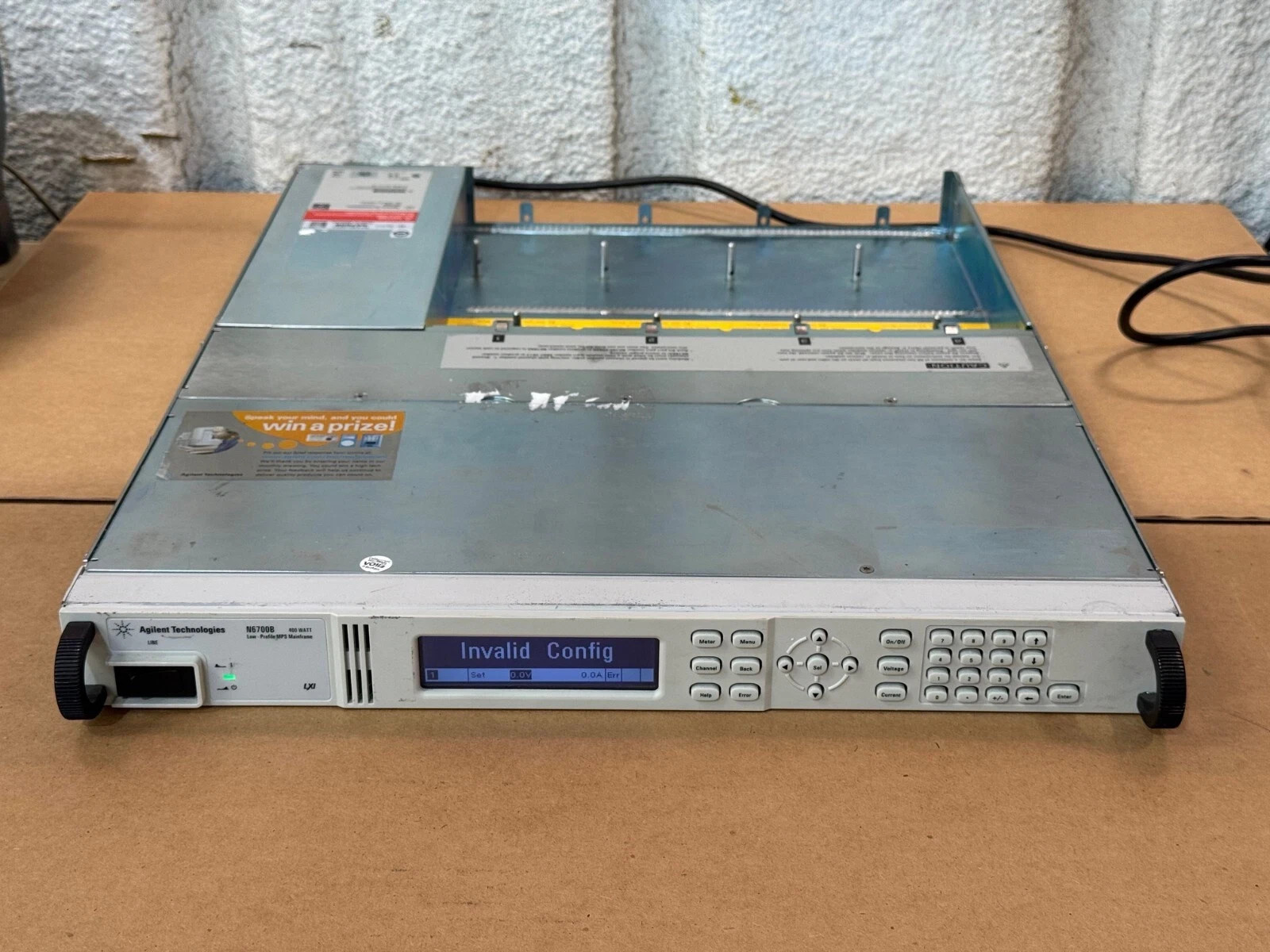

Agilent N6700B Modular Power Supply Mainframe – Tested & Working For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Agilent N6700B Modular Power Supply Mainframe – Tested & Working:
$439.99

The Agilent/Keysight N6700B is a low‑profile modular power mainframe (1U) that accepts up to four interchangeable DC power modules and provides a flexible, ATE‑friendly platform with up to 400 W total available output power (mainframe dependent on installed modules), remote control via GPIB/LAN/USB and LXI compliance.

Technical description — overview

The N6700B Modular Power System (MPS) mainframe is a low‑profile (1U) chassis designed to host up to four hot‑swappable DC power modules, enabling flexible multi‑output configurations in a single rack unit. The mainframe provides the backplane, control logic, and remote interfaces while the installed N67xx family modules supply the actual DC outputs.

Electrical and modular capabilities

Total available output power: 400 W (mainframe rating; actual usable power depends on installed modules and their combined ratings).
Module family: supports a range of N6731B–N6786A / N67xx modules (value and performance classes) so you can mix voltage/current/power characteristics per slot to optimize cost and performance.
Hot‑swap: modules are hot‑swappable for rapid reconfiguration in ATE environments.

Control, interfaces, and software

Remote control: GPIB, LAN (LXI), and USB interfaces are supported for instrument control and integration into automated test systems.
LXI compliance: the mainframe is LXI Class C compliant, simplifying networked control and discovery in modern test racks.

Mechanical and environmental

Form factor: 1U rack mainframe suitable for bench or rack mounting; compact footprint for multi‑supply racks.
Thermal/throughput: designed for ATE throughput with fast command processing and output speed; ensure rack ventilation when operating near aggregate power limits.
