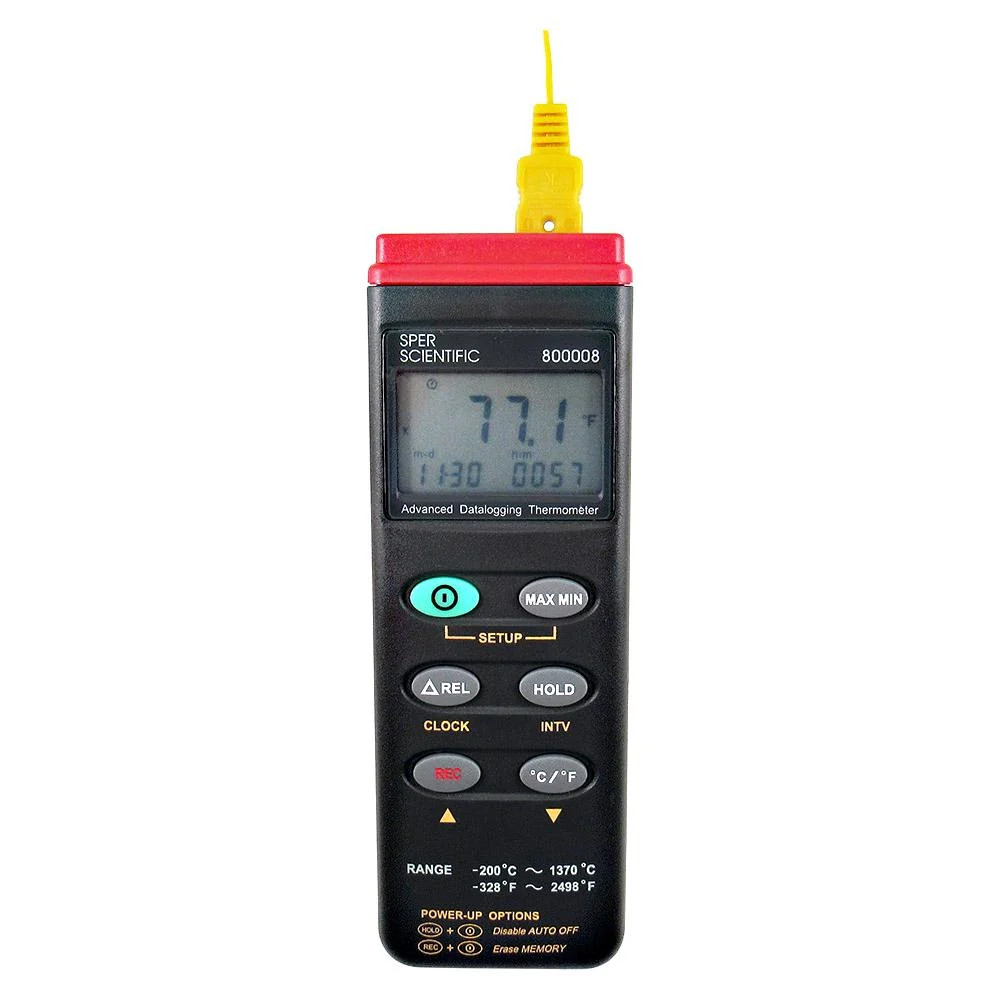

Advanced Thermocouple Datalogger:
$263.00

Automatically records up to 16,000 data points in the field.

These can later be downloaded to a computer via the meter’s computer port and the results viewed instantly on the ThermoLog Software which is downloadable on our website. The software also enables real-time data logging directly from the thermometer to the computer. Maximum Interval Setting Time is 60 minutes in Datalogger Mode. Also features min/max/average, relative temperature, auto power off, and hold functions.

This well-made unit is extremely accurate and has fast response times. Has a large easy to read 3½\" LCD screen and accepts any Type K thermocouple probe. Comes ready to use in a protective foam-lined carrying case complete with free downloadable software, RS232 computer cable (adapter cable also available), beaded wire probe (Ambient Type K probe 800077), and a 9V battery. Can also be used with optional AC Adapter (800003).

N.I.S.T. traceable Certificate of Calibration available.

Dimensions: 7¼\" × 2½\" × 1¼\" (184 × 64 × 32 mm) Weight: 7.4 oz (210 to 200°C

0.1°C

±(0.2% reading + 1°C)

200°C to 400°C

1°C

±(0.5% reading + 1°C)

400°C to 1370°C

1°C

±(0.2% reading + 1°C)

-328°F to -200°F

1°F

±(0.5% reading + 2°F)

-200°F to 200°F

0.1°F

±(0.2% reading + 2°F)

200°F to 2498°F

1°F

±(0.3% reading + 2°F)

Temperature Coefficient:
For ambient temperatures from 0°C to 18°C and 28°C to 50°C, for each °C ambient below 18°C or above 28°C add the following tolerance into the accuracy spec: 0.01% of reading + 0.03°C (0.01% of reading + 0.06°F)
