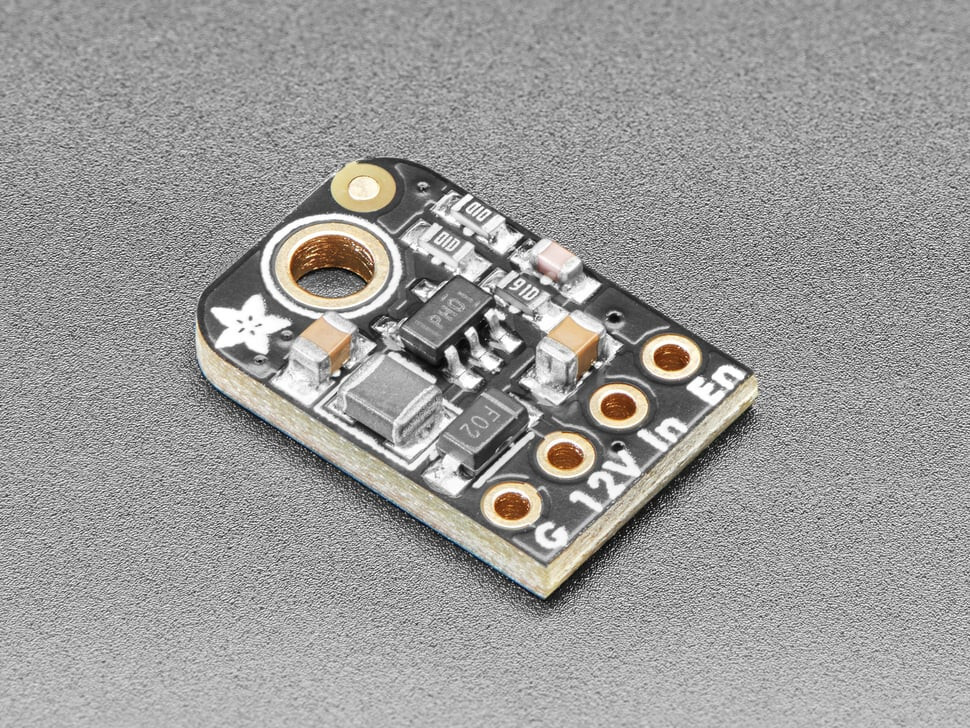

Adafruit 12V Bias Voltage Boost Converter - TPS61040 Ada# 5644:
$8.99
TheAdafruit 12V Bias Voltage Boost Converteruses our new favorite mini-booster, theTI TPS61040, to generate a 12V DC from as little as 3V input. We use this chip a ton in our OLED boards, to generate the 12V bias voltage needed for the displays to function. But there\'s probably many other times and reasons you may want a high-ish voltage, such as driving an LED string backlight or re-programming FLASH or EEPROM memories.
Note that this boardisn\'tgood for high power driving, like solenoids or motors or long analog LED strips. You can get about 40mA out max. But definitely easier than getting a separate 12V supply when just a small amount of current is needed and you\'ve already got 3.3or 5V on the board.
You get one fully assembled breakout with a TPS61040 and required passive components, and a small bit of header. Give 2 to 6V DC on theINandGround pins. Then you\'ll have 12V on the 12V output pin. TheEnable pin can be pulled low to disable the output.
Adafruit 12V Bias Voltage Boost Converter - TPS61040 Ada# 5644
$8.99
