AOK Volvo Penta Hartmann F49 Trim Limit Switch AQ200 AQ250 AQ270 AQ275 AQ280 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

AOK Volvo Penta Hartmann F49 Trim Limit Switch AQ200 AQ250 AQ270 AQ275 AQ280:
$33.95

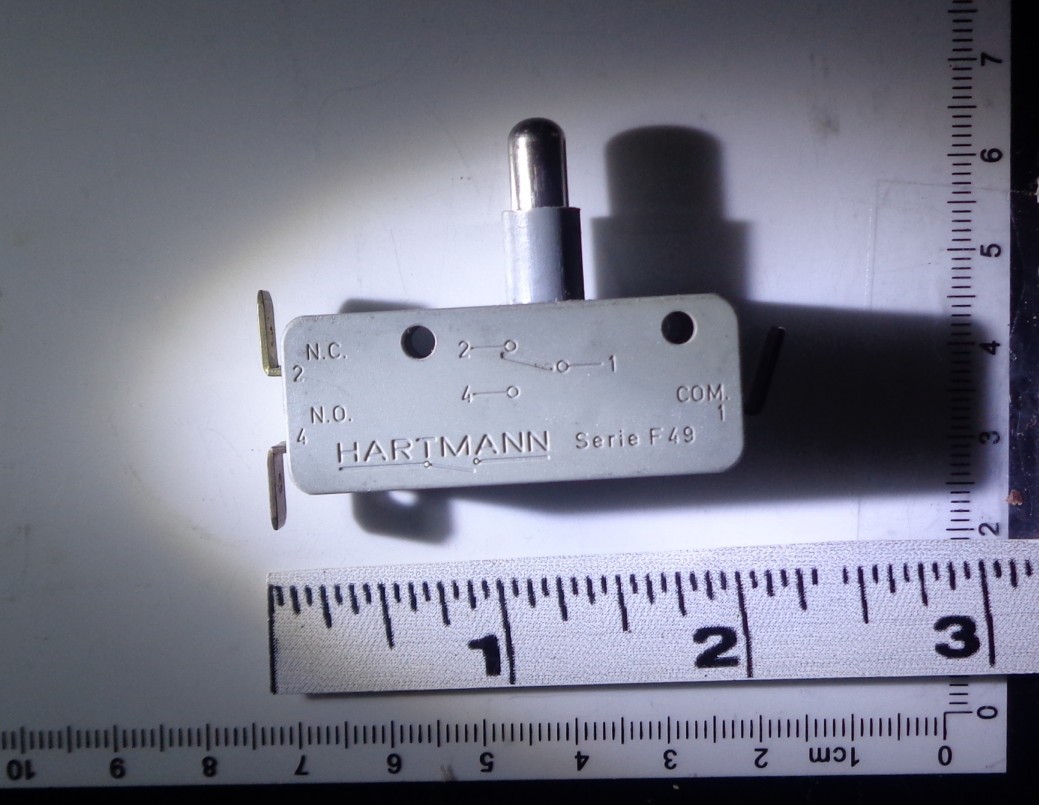

AOK Volvo Penta Hartmann F49 Trim Limit Switch AQ200 AQ250 AQ270 AQ275 AQ280
The side w single tab contact is power.Plunger out position - sends power to one of the two other terminals, Plunger depressed: switches the power to the other terminal.Handy for weight sensing automation, \"occupied\" signs. power indicators, automatic shears, punches and drill presses, safety doors and covers, jet canopy and door latch sensing/warning systems, throttle governors, clutch and brake sensing systems.Later P/N 897848

---

---

---

AOK Volvo Penta Hartmann F49 Trim Limit Switch AQ200 AQ250 AQ270 AQ275 AQ280

$33.95

---
