ANZAC AM-108 RF Amplifier 5-300 MHz 28dB Gain SMA -20VDC TESTED WORKING:
$58.00

ANZAC AM-108 RF amplifier module, 5–300 MHz, 28 dB gain, SMA (F-F-F) connectors, -20VDC bias. This unit has been tested and confirmed working.

Specs (per ANZAC datasheet):

• Frequency range: 5–300 MHz

• Gain at 25°C, 50 MHz: 28.5 ±0.5 dB

• Frequency response: ±2.5 dB max

• Maximum RF input: +19 dBm

• Impedance: 50 ohms nominal

Notes:

• Used, with light cosmetic wear. Fully functional, tested and working.

• No power supply or cables included.

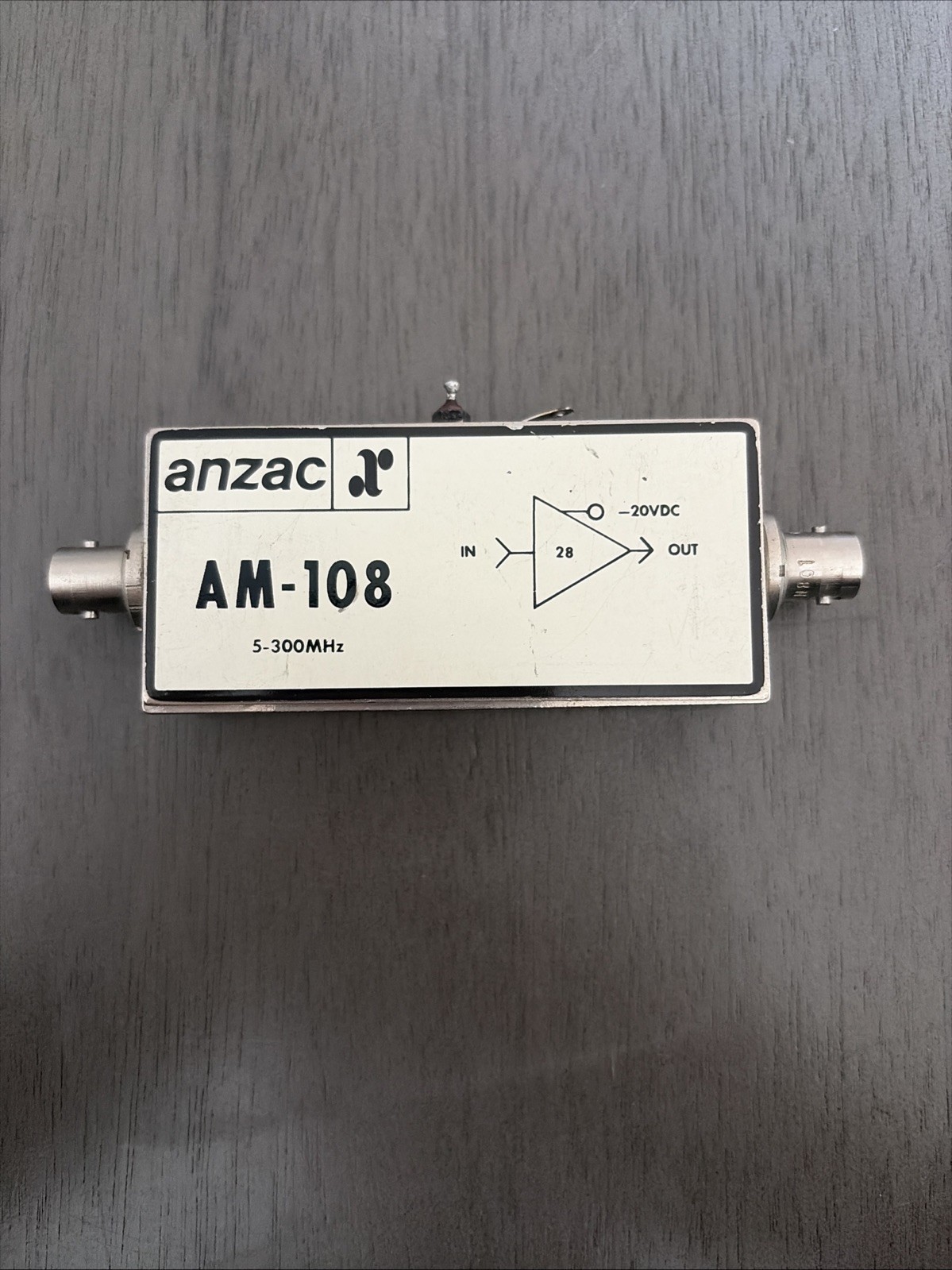

• Photo shows the actual unit. Sold as-is.

---

---

---
