AHP 200 Amp Alpha-TIG 203Xi TIG / Stick Welder For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

AHP 200 Amp Alpha-TIG 203Xi TIG / Stick Welder:
$700.00

Features:

AC/DC TIG and AC/DC Stick
High visibility LCD screen
Digitally controlled functions and features
Rapid Set Function for TIG and Stick(Synergic Type Feature)
Water Cooler power outlet on rear panel
Powerful 200 amp AC/DC TIG welder
Adjustable AC TIG and Stick frequency
Capable of handling most welding applications
High Frequency and Lift TIG start
Powerful 140 Amp output on 120v
200 Amp TIG/ 160A Stick output on 240v
60% duty cycle at 200 amps
Pulse frequency 0.5 to 250Hz, DC and 150Hz, AC
2T/4T function

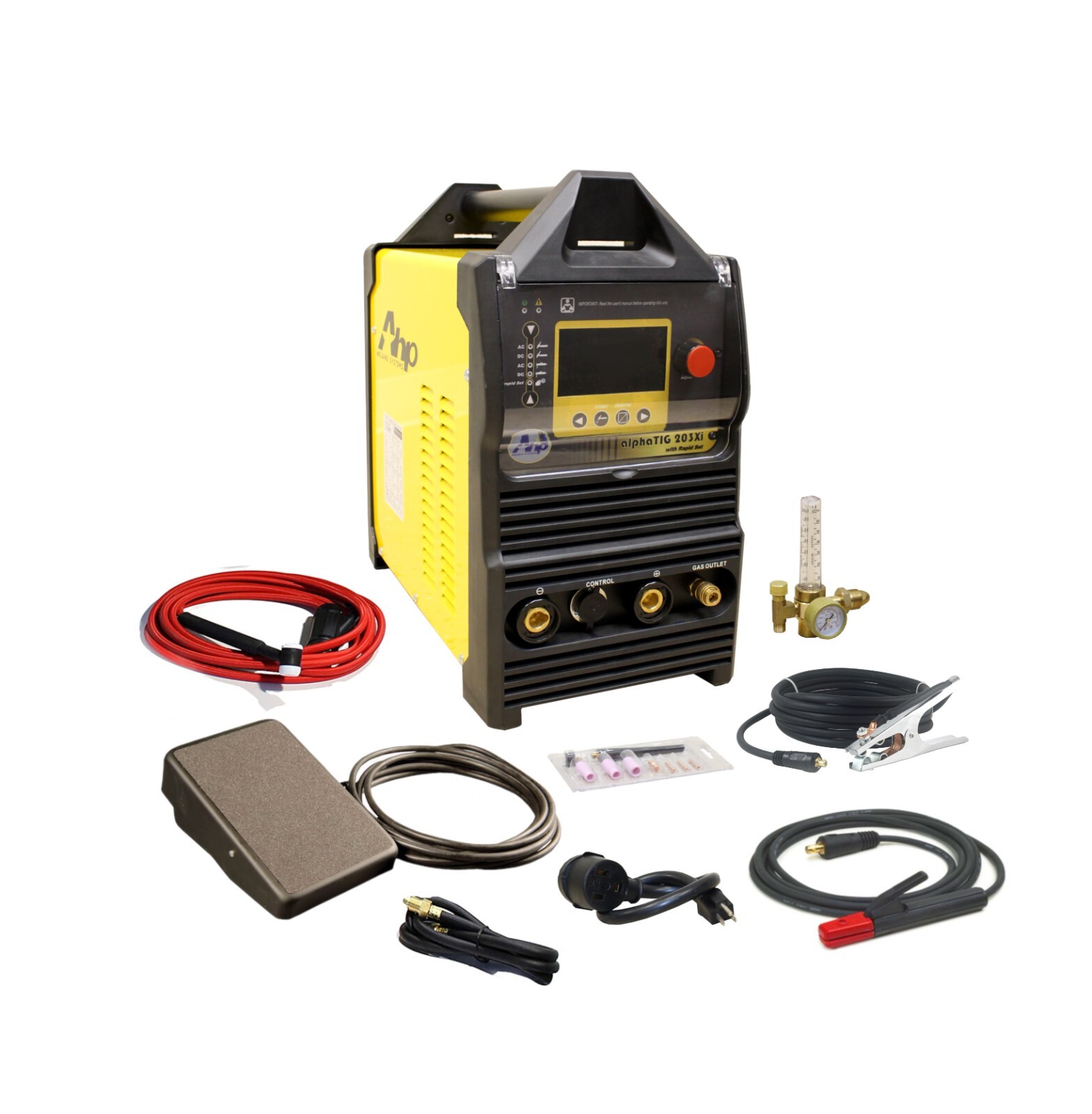

What\'s in the Box:

Alpha TIG 203XI Power Source
Nova Rotaflex9/17 TIG Torch (12.5ft, 35-70 DINSE Connection, 9mm Quick Connect)
250A Stick Electrode Holder (9ft)
Work Clamp (6ft)
Nova Foot Pedal (25 ft Cord)
Floating Ball Type Billet Brass Argon Regulator
240V to 120v Plug Adapter (NEMA 6-50R to NEMA 15-5P)
Basic Consumable Kit (does not include :AC and DC TIG with pulse in AC and in DC, AC and DC StickRated Electrical Input:120/ 240v 50/60 HzMinimum Amp Start On DC/AC:5A/20ATIG(GTAW) Duty Cycle (240V):200 A, 18 V @ 60% Duty Cycle @ 40° CTIG/Stick Open Circuit Voltage (OCV):75VSTICK (SMAW) Duty Cycle (240V):200 A, 28 V @ 35% Duty Cycle @ 40° CMAX Inrush Amps: 120V: 29A, 240V: 34A
Effective Rated Amps:120V: 25A, 240V: 24AFoot Pedal:Nova long life, 25 ft. cableTIG Start type:High Frequency and Lift Start (non live trigger/pedal actuated)2T/4T Torch Trigger Panel Control Sequencer:YesStart Amps(2t/4t Trigger Function):5(20)-200AEnd Amps(2t/4t Trigger Function):5(20)-200APre Flow Time for Gas:0-10 SecondsPost Flow Time for Gas:0-10 SecondsUp-Slope Time (Ramp Up):0-10 SecondsDown Slope Time (Ramp Down):0-25 SecondsAC Balance Control:20-80% of Electrode PositiveAC Frequency Control:20-200 HzPulse Frequency Range:AC: .5-150Hz; DC: .5-250HzPulse Amp Control:5-95% of Welding AmpsPulse Time ON/ Pulse Width Ratio:10-90% of Pulse AmpsWeight:40 lb
Dimensions:22 in × 9.25 in × 17.5 in
Description:
The new 200 Amp AlphaTIG 203XI, features digital control boardtechnology coupled to a large, high visibility LCD color display. The AlphaTIG203XI delivers pro-level features in an economical package that out performssimilarly equipped models from competitors. The AlphaTIG 203XI features includefully adjustable AC frequency and AC balance settings which improvepenetration, tungsten life, arc cone and etching width. It also includespulse in AC and DC modes, which allows the user to minimize warping from heatdistortion and to control puddle width and melt through. The newRapidSetfunction is a valuable tool for both professionals andnovices alike by providing a pre-programmed range of Amperage for aparticular job based off the tungsten size and metal thickness provided by theuser. Rapid Set functions in Stick mode as well. Simply choose the classof welding electrode (E6011, E7018 etc.) rod and diameter and a preset rangeamps will automatically be provided. The 2T/4T Sequencer function allows theunit to be used with a remote switch, enabling it tocontrol and cycleprogrammablefunctions such as pre/post flow control, and start/end ampswithout the use of a foot pedal. This is especially helpful for weldingout of position or wherever a foot pedal may not be useful. The newAlpha TIG 203XI is an excellent choice for the for the professional fabricatoror novice welder. It features the performance demanded by theprofessional, but delivers it on a budget of a beginner.Don\'t forget the industrial standard 3 year parts and laborwarranty.
