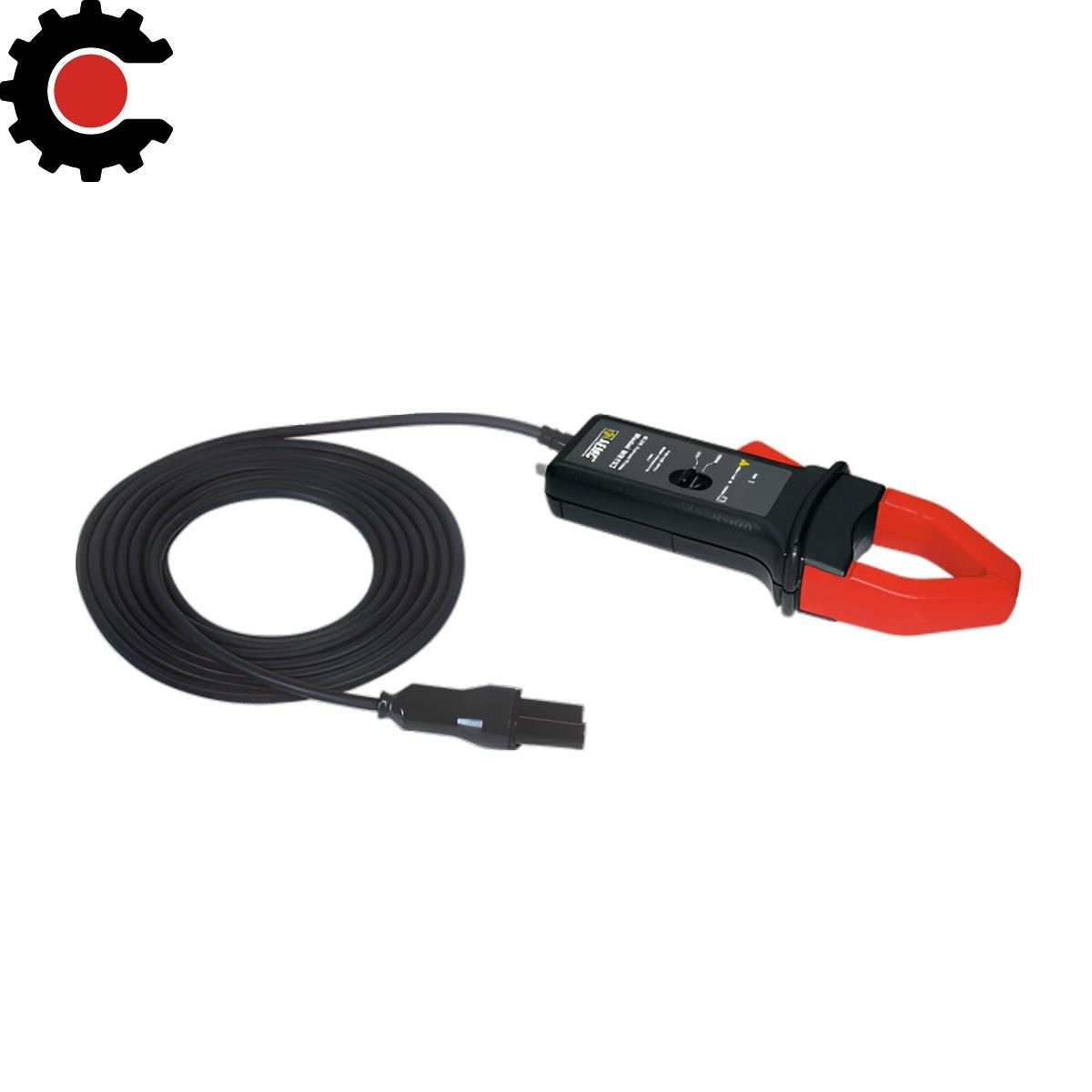

AEMC MR193BK AC/DC Current Probe for PowerPad & PEL For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

AEMC MR193BK AC/DC Current Probe for PowerPad & PEL:
$588.50

Click on the image below to get zoomed view of the Item ⚡ IN STOCK AEMC MR193BK AC/DC Current Probe for PowerPad & PEL SPECIAL OFFER: $508.25

AEMC MR193-BK AC/DC Current Probe: 1–1300A, 10ft CA lead, Ideal for PowerPad & PEL series items — accurate, high-capacity power and energy monitoring.

Detailed Overview

The AEMC MR193-BK AC/DC Current Probedelivers accurate and reliable current measurements for professionals needing robust performance in power quality analysis. Designed to seamlessly integrate with AEMC PowerPad and Power & Energy Logger instruments, this probe offers a versatile solution for both AC and DC current monitoring.

Key Features:

Wide Measurement Range: Supports AC currents from 1 to 1000A and DC currents up to 1300A.
Compatibility: Works with multiple PowerPad II/III analyzers and Power & Energy Logger models.
Durable Design: Compact and lightweight with a 10-foot lead terminated by a proprietary connector.
Accurate Performance: Typical accuracy of ±2.5% ensures reliable data collection.
Long Battery Life: Powered by a 9V alkaline battery lasting up to 100 hours.

Benefits:

Versatile Application: Suitable for various industrial and field power quality measurements.
User Convenience: Long cable and proprietary connector allow easy setup and secure connections.
Reliable Data: High accuracy enhances the quality of power system analysis and troubleshooting.
Portable and Lightweight: Easy to carry and use in diverse environments.

Upgrade your power quality testing with the AC/DC Current Probe MR193-BK — a dependable tool for accurate current measurement.

Key Benefits

✓ Fully Tested & Certified
✓ 30-Day Risk-Free Returns
✓ 1-Year Full Warranty
✓ Professional Calibration Services
✓ Trade-In Program Available
✓ Fast & Reliable Delivery

What\'s in the Box

AC/DC Current Probe Model MR193-BK

Technical Specifications BrandAEMCModel NumberMR193-BKClamping DiameterOne 1.6” (42mm) or two 0.98” (25mm), or two bus bars 1.96 x 0.19” (50 x 5mm)Current Range1000AAC / 1300ADCMeasurement Range1 to 1000AAC & 1 to 1300ADCLead Length10 ft (3m)Output TerminationProprietary connectorAccuracy (Typical)±2.5%Power Source9V alkaline batteryBattery Life100 hours (typical)CompatibilityAEMC PowerPads and PELsDimensions (L x W x H)11 x 11 x 11 inchesWeight8 lbsOperating Temperature14° to +131°F (-10° to +55°C); 10 to 85% RHStorage Temperature-40° to +158°F (-40° to +70°C); 10 to 90% RHPollution Degree2ProtectionIK 04, IP40 (jaws closed), IP30 (jaws open)Safety ComplianceIEC 61010-1, IEC 61010-2-032, 600V CAT III, 300V CAT IV Full Warranty Protection 1 Year Comprehensive Coverage
