AD5140 12.5984” O.D. , 9.1071” I.D. 3.5” (National 7602-0212-88) For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

AD5140 12.5984” O.D. , 9.1071” I.D. 3.5” (National 7602-0212-88):
$1450.00

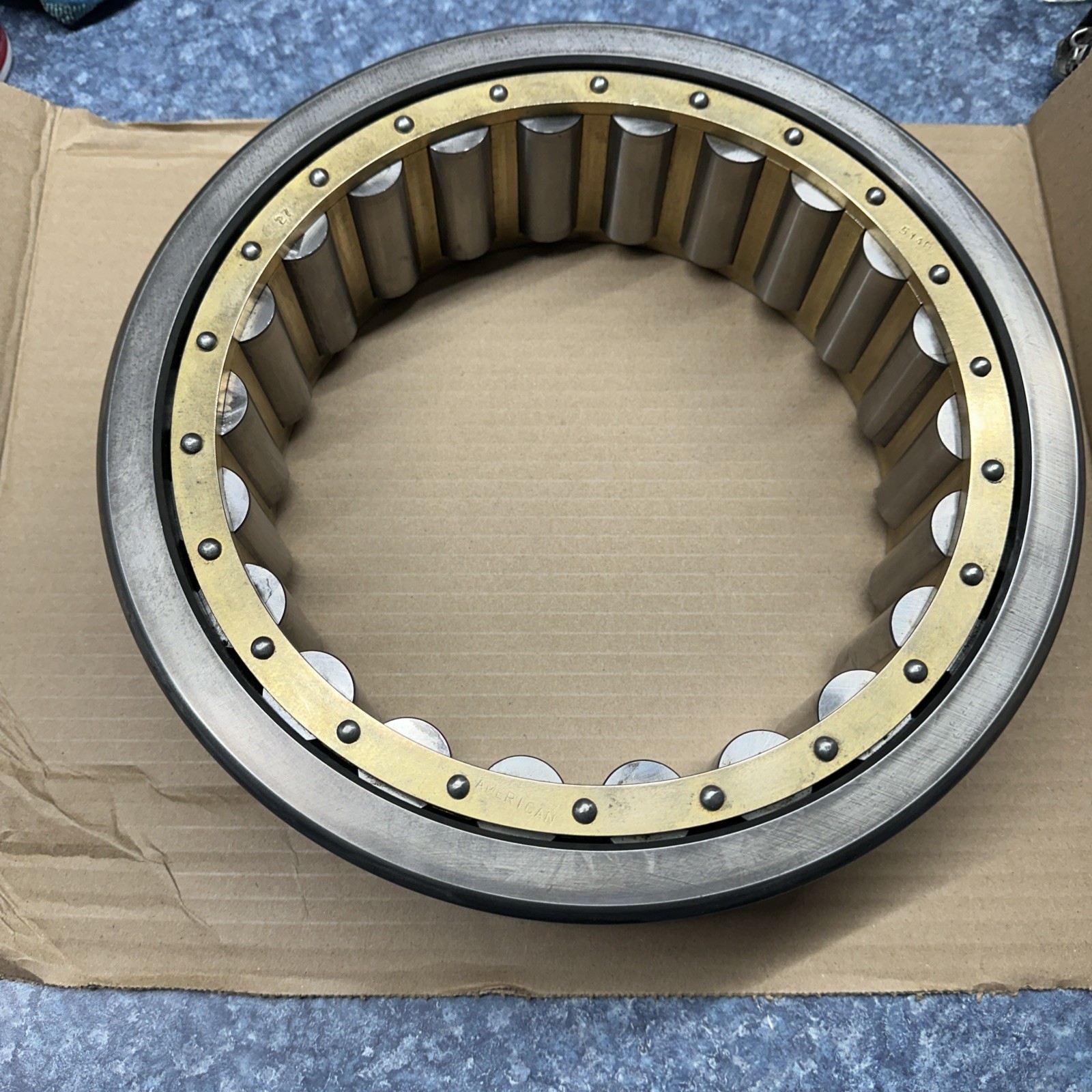

New - American Uk AD5140 Single row roller bearing

I.D. 9.1071" O.D. 12.5984" Width 3.500"Bearing weight - 63.93LBS Dynamic Capacity - 232,003LBS Static Capacity - 365,090LBS.

Detailed parameters and installation dimensions:

Reference From American AD5140 , Mud pump bearings , Cylindrical Bore, Size: 7.874 in d x 12.598 in D x 3.5 in B;

Rows NO.: 1 Rows ;

Bore: Cylindrical Bore;

Bearing Type: Cylindrical Roller Bearings, Single Row ;

Dimension Inside-d Φ: 7.874 inch;

Dimension Outside-D Φ: 12.598 inch;

Dimension Width - B: 3.5 inch;

Dimension r1(min): 0.083 inch;

Manufacturer Part Code: AD5140, AD-5140;

Bearing Interchange: National 7602-0212-88 , RBC NU76643 , Timken(Torrington) 200RU91 R3 , FAG 510616A , American AD5140 , Rollway E-5140-UMR , Scheerer RU-5140 , FAG 510616 , Timken(Torrington) 200-RU-91 , SKF TNU-05040 , American AD-5140, NU 3040X3 M/C4, FAG Z-510616.01.ZL ;

Basic Dynamic Load Rating Cr: 206599 lbf;

Basic Static Load Rating C0r: 337213 lbf;

Weight: 29.3 kg | 64.6 lb;

Pump Manufacturer: Emsco (NOV) ;

Pump No.: F1000 ;

Position: Pinion ;

Application: Bearings for Oil Production & Drilling, Oil Field Bearing, Mud pump bearings(WIRTH TPK, DRILLMEC, LEWCO, OILWELL, Brewster, IDECO, BOMCO, EMSCO (NOV), EWECO, OPI, LS NOV, Gardner Denver, Weatherford, Canrig, Tesco) ;
