AC MOTOR, 2HP, 1725RPM, 3PH, 206-230V/460V, 56C/TEFC, WITH BASE For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

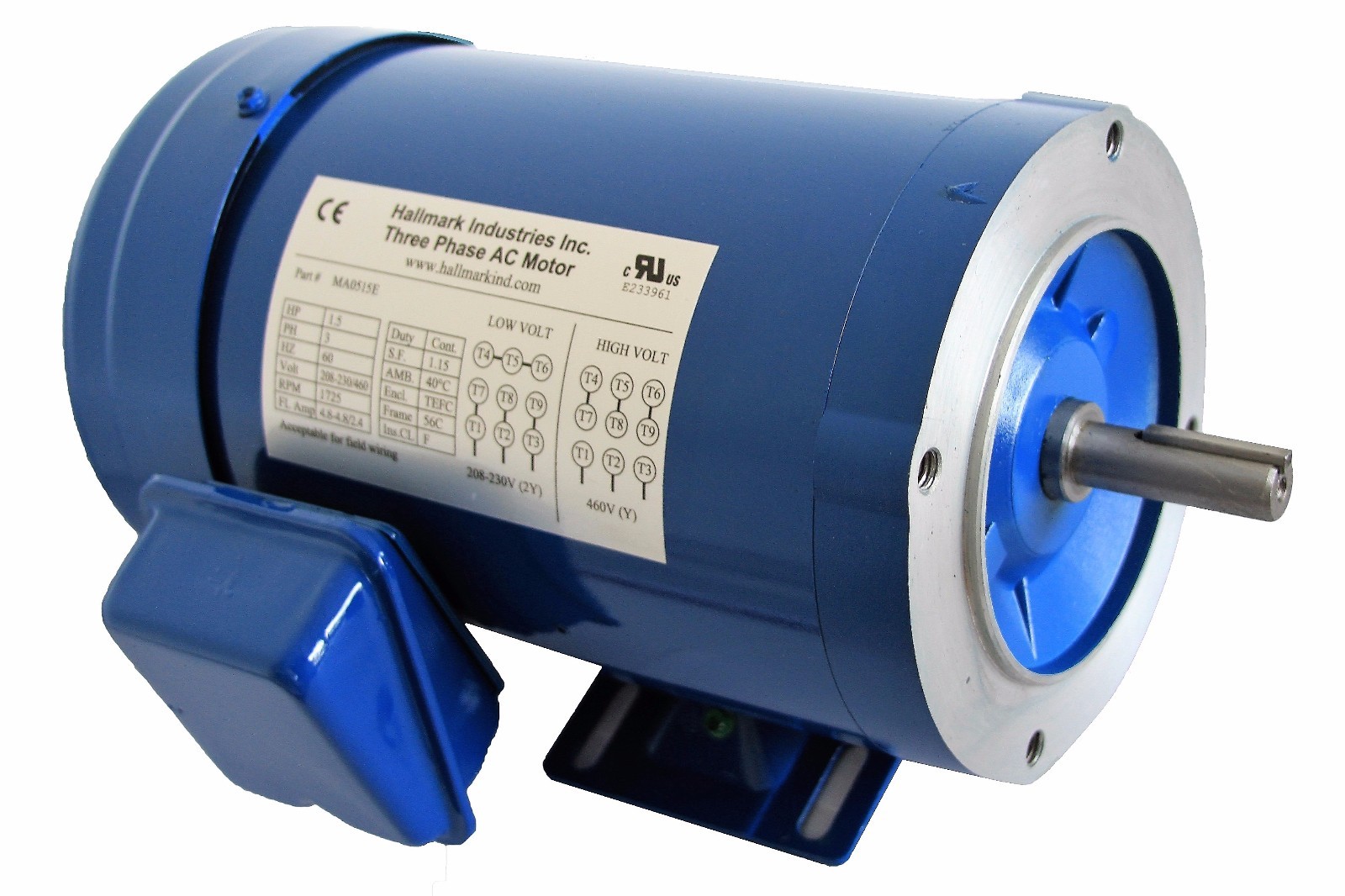

AC MOTOR, 2HP, 1725RPM, 3PH, 206-230V/460V, 56C/TEFC, WITH BASE:
$224.75

This motor is for 3 phase,206-230V/460V
General purpose, AC Motor, 2HP, 1725RPM, 3PH/60HZ, 460V, 56C/ TEFC, F Insulation (for inverter duty), with removable foot, 1.15 Service Factor, Rolled Steel Frame, Reversible Rotation, 10:1 Variable Torque Rating, 2:1 Constant torque Rating.30 days worry free return policyWarranty: 12 months
Dimension SheetFeatures

• Totally Enclosed Fan Cooled (TEFC) enclosure
• Dual mounting with NEMA 56C and removable base
• Class F winding insulation

• Inverter duty

• Rolled steel shell frame / cast aluminum end bell
• Removable base / bolt-on/bolt-off mounting feet
• Large all-metal capacitor cover with rubber gasket
• Large easy-to-wire junction box with rubber gasket
• Heavy duty oversized ball bearings
• High tensile strength steel shaft
• Electrically reversible
• NEMA design B
• Service Factor: 1.15

---

---

---
