A.A. Lab Systems A-304 High Voltage Amplifier & Modulator +/-400V 100mA Tested For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

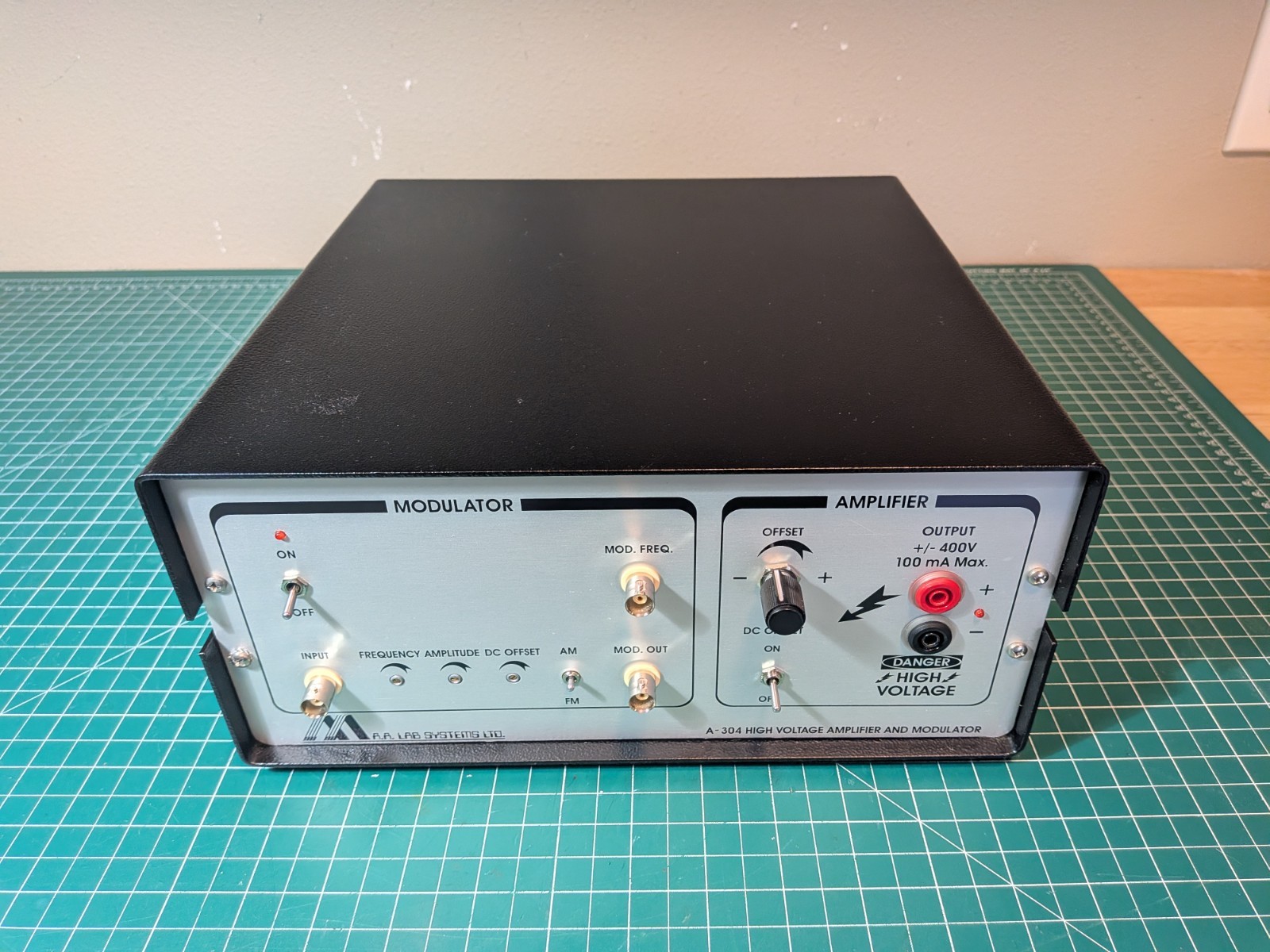

A.A. Lab Systems A-304 High Voltage Amplifier & Modulator +/-400V 100mA Tested:
$850.00

Did a basic amplifier test on the unit where I put in a 100mVpp sine wave at 1kHz. It came back out at 40Vpp 1kHz which looks to be the proper 40x gain value for it. I did not check the modulator section or the offset but overall everything looks to be in good condition. If you have any questions feel free to ask.

---

---

---

A.A. Lab Systems A-304 High Voltage Amplifier & Modulator +/-400V 100mA Tested

$850.00

---
