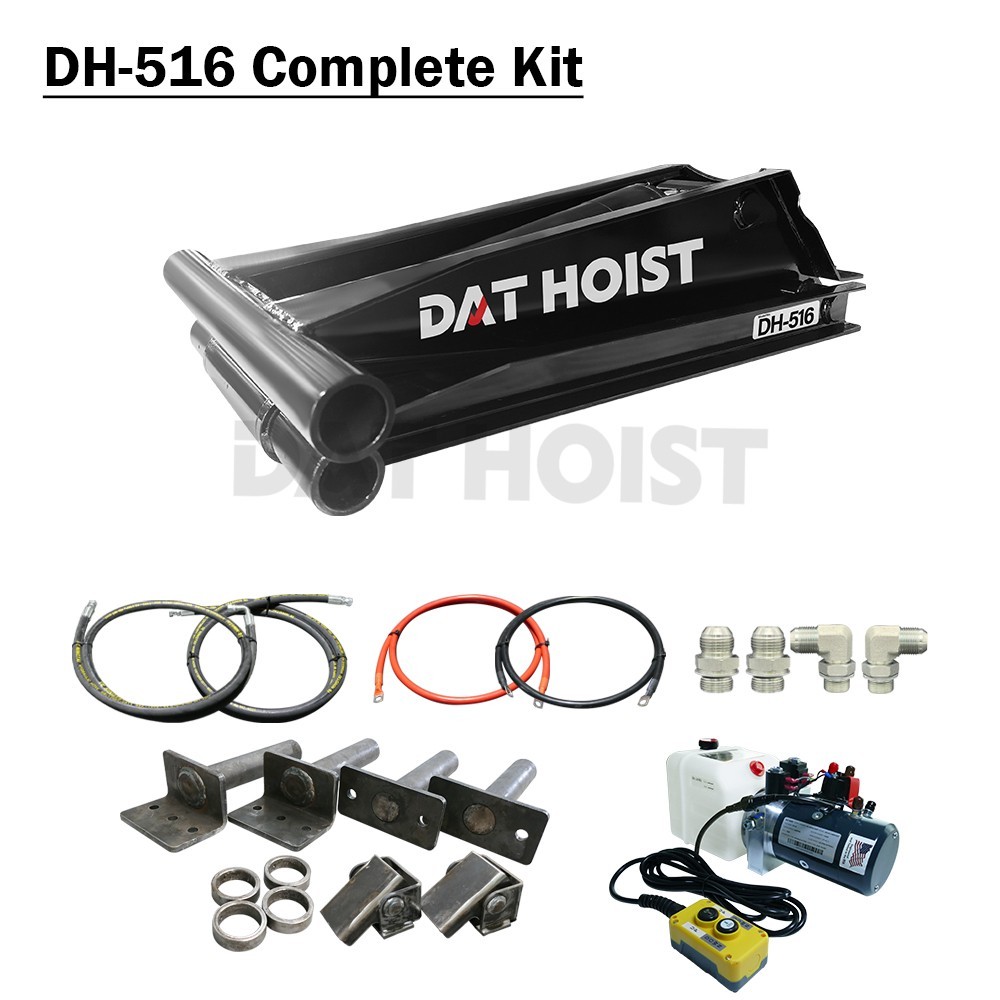

8 Ton Hydraulic Scissor Hoist Kit | DH-516 for Trailer | Fits 10-14' Dump Body

FAQ

Q: What is the difference between this model and the standard DH-516?
A: This version features a shorter lower arm, allowing easier installation on narrow frame dump beds while maintaining the same 8-ton lifting capacity.

Q: What size dump bed is this hoist kit designed for?
A: The DH-516 Short Lower Arm is designed for 10-14 ft dump beds.

Q: Is a hydraulic power unit included with this kit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.

Q: Is this hoist kit suitable for dump trailers?
A: Yes. It is ideal for dump trailers, landscape trailers, and utility dump bodies, especially where frame width is limited.

Why Choose DAT HOIST

DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance.

The DH-516 Short Lower Arm Hydraulic Scissor Hoist Kit is designed for operators who need full 8-ton lifting capacity with easier installation on narrow frames, backed by proven engineering and dependable warranty coverage — featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.

Installation Guide

For Power Unit and Hoist Installation guides, please download the full PDF documentation from the link below:

📄 Click Here to Download Installation Guide – [link removed by ]

8 Ton Capacity | Complete Kit with 12V Power Unit | Short Lower Arm | Fits 10-14 ft Dump Bodies | 24-Month Warranty

The DH-516 Short Lower Arm is an 8-ton hydraulic scissor hoist kit designed for 10-14 ft dump beds, featuring a shorter lower arm for easier installation on narrow frame dump bodies.

Engineered by DAT HOIST for strength and reliability, this heavy-duty hoist kit delivers powerful lifting performance and smooth, controlled operation under demanding loads. Built for long-term durability and daily commercial use, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the included hydraulic power unit is covered by a limited 1-year manufacturer warranty.

Key Features

8 Ton Lifting Capacity – Handles heavy loads with confidence for commercial applications
Short Lower Arm Design – Simplifies installation on narrow frame dump beds
Fits 10-14 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
Reinforced Stress Points – Reduces flexing and increases service life
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
15 ft Wired Remote Control – Allows safe and convenient operation from a distance

Technical Capacity8 TonDump Bed Length10-14 ftHoist TypeHydraulic Scissor HoistSpecial FeatureShort Lower ArmOperationDouble ActingPower Unit12V Hydraulic Power UnitMotor Power1.6KWControl Type15 ft Wired RemoteMaterialStructural Limited Hoist / 12-Month Power UnitWhat's IncludedPart NumberComponentQtyHF-516SAHoist Frame Short Lower Arm1CY-516Hydraulic Cylinder1DH-G2-ACC-002516/520 Heavy-Duty Ring Collar4DH-G2-ACC-003516/520 Heavy-Duty Upper Lifting Arm2DH-G2-ACC-004516/520 Heavy-Duty Lower Mounting Arm2H-500Five Series Dump Hinges2DH-DA-1.6KW-4QT-15FTDouble Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control1HH-C-038-S-8FTHydraulic Hose, 3/8" US, Straight Ends, 8 ft 2.44 m1HH-C-038-SE-6FTHydraulic Hose, 3/8" US, One Straight & One 90° Elbow, 6 ft 1.83 m1HF-LIC3M-FL-916Hydraulic Fitting, 3/8" Male 37° LIC Flare, 9/16"-182HF-JIC3M-EL-06Hydraulic Fitting, 3/8" Male JIC 37° Elbow2BC-0012 AWG Battery Cable, Red & Black, 1.5 m1Note

This kit includes all major components required for installation
Minor mounting hardware may vary depending on application
Professional installation is recommended to ensure safe operation and optimal performance

Pickup DetailsShipping InformationWarranty CoverageReturnsContact UsPickup Details

Local Pickup Only – San Bernardino, CA 92410
Loading Assistance Available at our facility

Shipping Information

FREE DELIVERY to commercial addresses within commercially zoned areas that have a freight dock or forklift for unloading.

Important Notes:

Deliveries to residential, rural, or farm addresses may incur additional fees
Please confirm delivery address type to avoid unexpected charges
Contact us if you're unsure — we're happy to help

✅ All kits are securely palletized for safe and reliable transport

Warranty Coverage

Hydraulic Cylinder & Hoist Frame:
Protected by a Limited 2-Year (24-Month) Manufacturer Warranty
Hydraulic Power Unit:
Protected by a Limited 1-Year Manufacturer Warranty

📌 Warranty covers parts only. It does not cover labor, incidental costs, damage from misuse or modification, or exceed the original purchase price.
