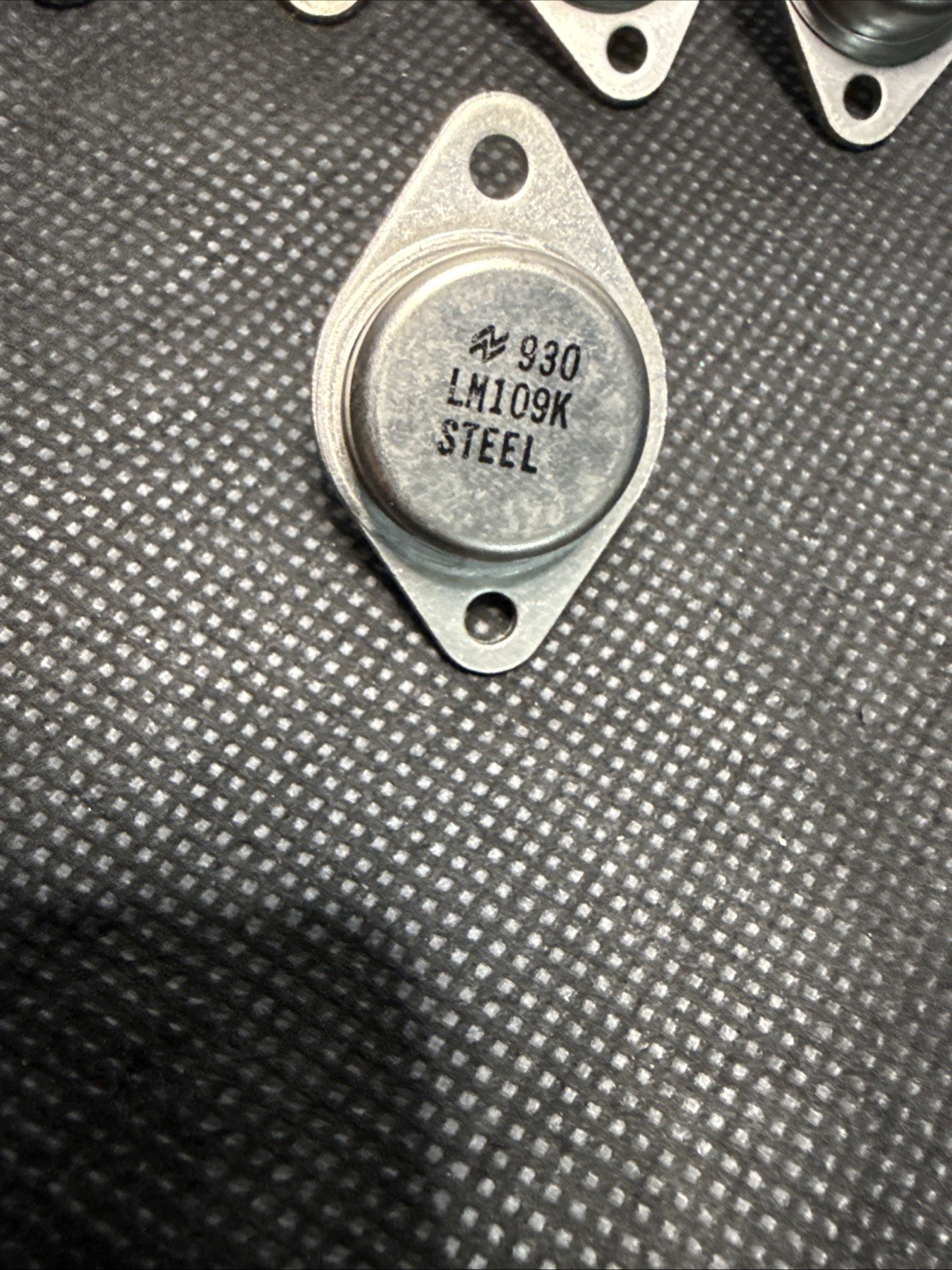

7x National Semiconductor LM109K STEEL TO-3 Voltage Regulator NOS Vintage:
$119.00

Lot of 7 National Semiconductor LM109K STEEL Voltage Regulators

New Old Stock (NOS) vintage electronic components from old distributor inventory.

Details:

* Brand: National Semiconductor

* Part Number: LM109K

* Marking: LM109K STEEL

* Package: TO-3

* Quantity: 7 pieces

* Vintage New Old Stock (NOS)

* From old Hamilton/Avnet distributor stock

• These components have been stored for many years and have not been recently tested. Due to their age, functionality is not guaranteed.

• Please review all photos carefully for exact markings, cosmetic condition, and everything included. You will receive the exact 7 pieces shown in the photos.

Sold together as one lot of 7. Carefully packaged for shipping.

---

---

---
