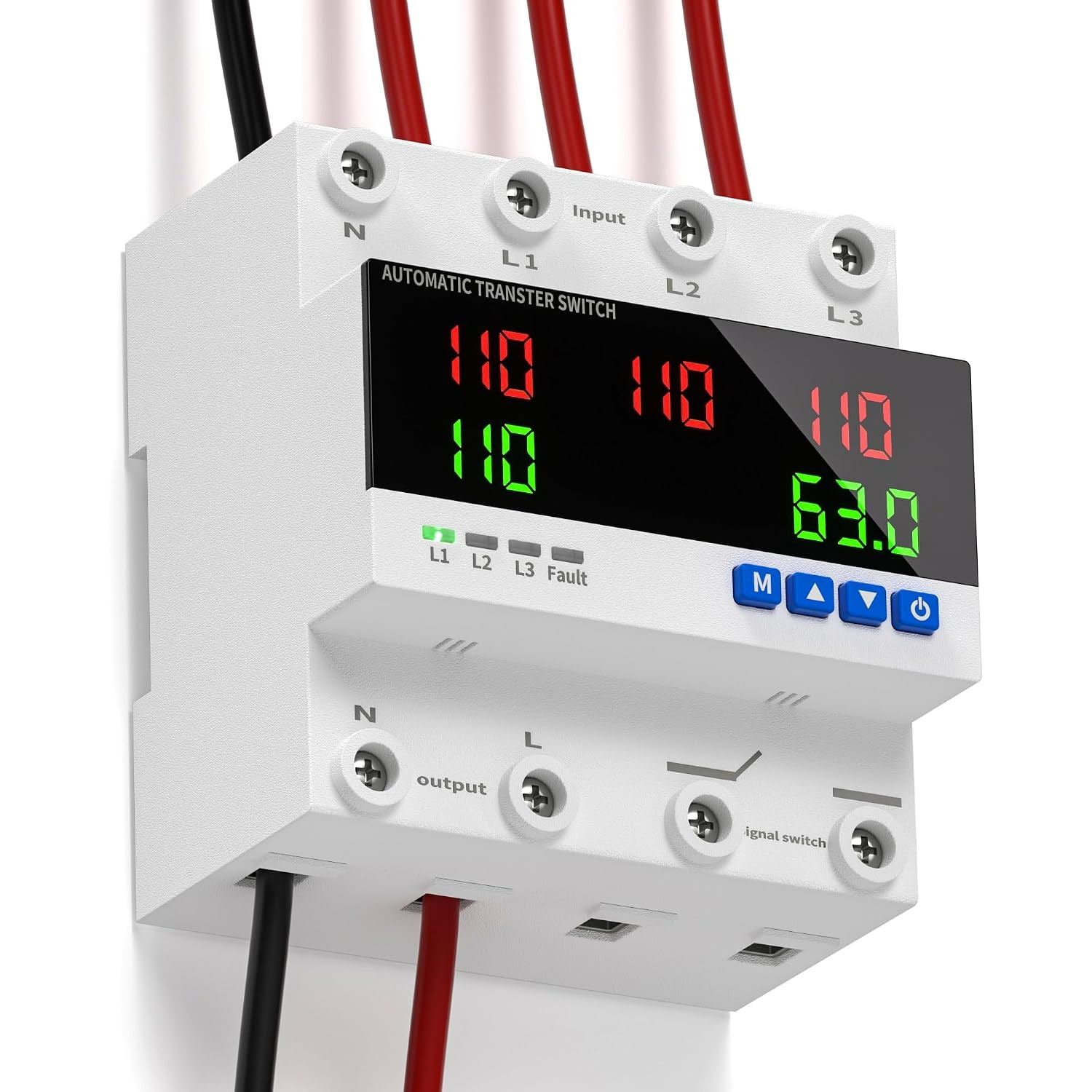

63A 110V/240V Automatic Transfer Switch

Recent Threads

On eBay Now...

63A 110V/240V Automatic Transfer Switch For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

63A 110V/240V Automatic Transfer Switch:
$56.58

63A 110V/240V Automatic Transfer SwitchDescription Model JMRD-PS3X (63A) Part Number JMRD-PS3X-63A Number of Items 1 Number of Packs 1 Unit Count 1 Count Included Components 1 × Automatic Transfer Switch 1 × Instructions Current Rating 63 A Mounting Type DIN Rail Mount Voltage 110 volts Item Dimensions D x W x H 3.6"D x 3.8"W x 2.6"H Item Highlight 50/60Hz Over and Under Voltage Protector for Generator Backup Power, DIN Rail Mount Product Dimensions 3.6"D x 3.8"W x 2.6"H

Product description Key features

-Protection Types: Overvoltage (OV), Undervoltage (UV), Overcurrent (OC)— all adjustable with customizable trip delays

-Phase Monitoring: Three-phase (L1-L3)

-Switching Modes:Automatic + Manual override

-Pole Configuration: 4-pole

-Housing Material: Flame-retardant PA66 shell

-Mounting: Standard 35mm DIN rail clips included (rail not included)

Supply terminals N, L1, L2, L3 Rated voltage 110/220 V (120/240 V operation) Rated frequency 50 / 60 Hz Rated operating current 63 A Measuring accuracy ±1% Auto-reclose delay (Ton) adjustable 1-600 s Overvoltage trip delay example 0.1 s ≥ 350 V (configurable) Enclosure material Flame-retardant PA66 Ambient operating temperature -25°C to 50°C Altitude ≤ 2000 m Wiring range / tunnel port 14 AWG-4 AWG (1.5-25 mm*) Dimensions 90 x 66 x 95 mm (3.6 x 2.6 x 3.8 in) Model JMRD-PS3X (63A)

Automatic three‑phase switching: Automatic transfer switch manual transfer switch monitors L1–L3 and instantly switches to a healthy phase or a designated priority phase when overvoltage, undervoltage or overcurrent is detected — protects connected equipment from damage; manual control lets you override automation and lock to L1 or L2
Adjustable protection thresholds: Default settings of Automatic transfer switch circuit breaker box suit most installations; OV, UV and OC trip points and delays are user‑adjustable for tailored protection of grids, inverters and generators
Real‑time monitoring & manual override: Built‑in screen of Automatic transfer switch low voltage cutoff displays incoming phase voltages, output voltage and output current; color status lights show normal/fault conditions
Robust electrical & mechanical design: 63A rated 4‑pole automatic transfer switch with large tunnel terminals (14–4 AWG / 1.5–25 mm²), flame‑retardant PA66 shell and corrosion‑resistant contacts for long service life in harsh environments
Easy DIN Rail Mounting: Automatic transfer switch comes with mounting clips that allow for secure attachment to standard 35mm DIN rails (rail not included), ideal for crowded panels, RV power centers, solar systems, telecom racks, and cabinet retrofit installations
Automatic transfer switch is applicable to home backup power, generator/inverter integration, industrial production lines and motor control circuits, traffic signal and public infrastructure power protection, medical facilities and data center branch protection, E‑bike / battery system protection and charger/inverter safeguarding...
