5x EATON MOELLER NHI-E-11-PKZ0 FRONT MOUNT AUXILIARY CONTACT 1 NO 1 NC XTPAXFA11:
$56.00

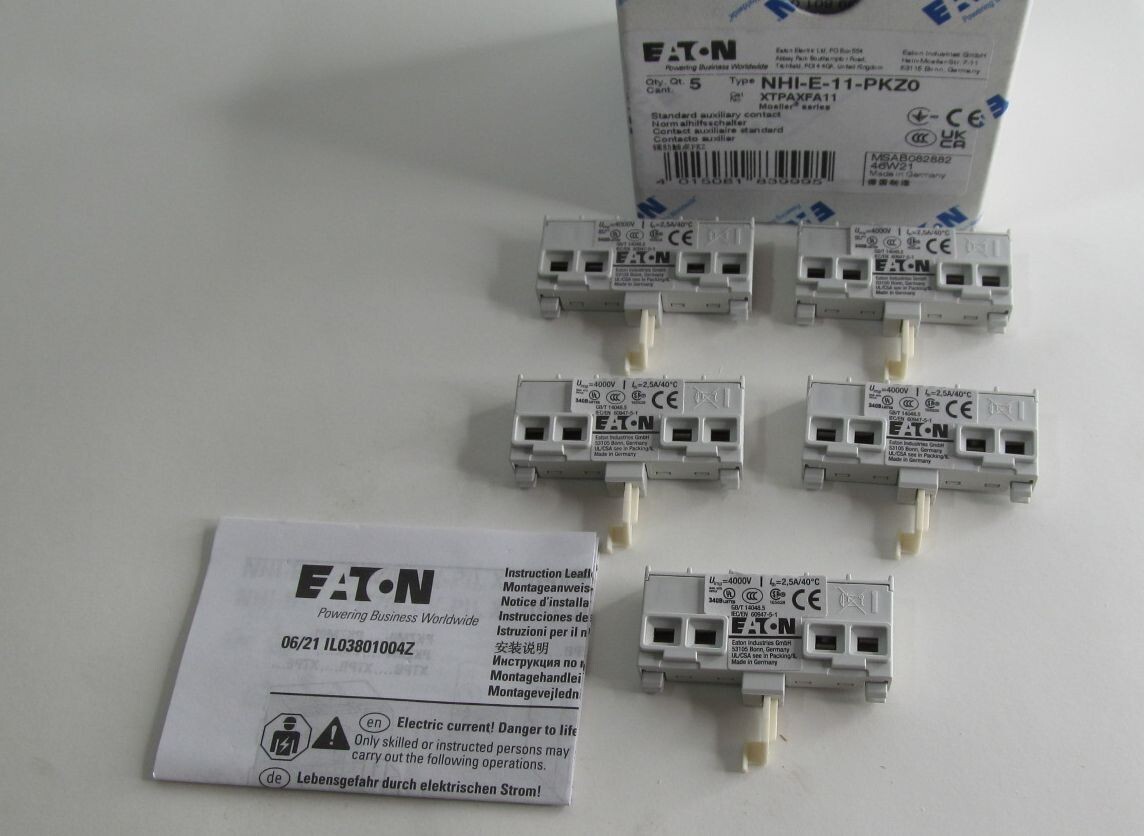

NEW 5-PACK, MADE IN GERMANY, EATON MOELLER MODEL NHI-E-11-PKZ0,XTPAXFA11FRONT MOUNT AUXILIARY CONTACTS. 1 NORMALLY OPEN, 1 NORMALLY CLOSED.

Moeller Part No.NHI-E-11-PKZ0Eaton Part No.XTPAXFA11Delivery programProduct rangeStandard auxiliary contactFor use withPKZ0(4) standard auxiliary contactsContactsN/O = Normally open1 N.O.N/C = Normally closed1 N.C.Connection techniqueScrew terminalsFor use withPKZM01
PKZM0
PKZM4
PKZM0-T
PKM0
PKENotes:
Can be retrofitted to motor-protective circuit-breakers, transformer-protective circuit-breakers, motor-protective circuit-breakers for starter combinations from serial number 01. 45 mm (PKZM0 and PKZM01) or 55 mm (PKZM4) widths of the motor-protective circuit-breakers remain unchanged.
NHI-E...-PKZ0-C not usable for MSC...-type motor starter combinations.Technical dataAuxiliary contactsRated impulse withstand voltage (Uimp)4000Overvoltage category/pollution degreeIII/3Rated operational voltage (Ue)440 V AC250 V DCSafe isolation to EN 61140
Between auxiliary contacts and main contacts690 V ACRated operational current AC-15220 - 240 V1 ARated operational current DC-13 L/R - 100 ms24 V2 ALifespan, mechanical (Operations)> 0.1Lifespan, electrical (Operations)0.1Control circuit reliability (Failure rate)<10-8, one failure at 100 million operations
(at Ue= 24 V DC, Umin= 17 V, Imin= 5.4 mA)interlocked opposing contactsyesShort-circuit rating without weldingFuse (A gG/gL)10Terminal capacitiesSolid or flexible conductor, with ferrule0,75 - 2,5Solid or stranded18 - 16Design verification as per IEC/EN 61439Technical data for design verificationRated operational current
for specified heat dissipation1 AHeat dissipation per pole,
current-dependent0.01 WHeat dissipation capacity0 WIEC/EN 61439 design verification10.2 Strength of materials and parts10.2.2 Corrosion resistanceMeets the product standard's requirements.10.2.3.1 Verification
of thermal stability of enclosuresMeets the product standard's requirements.10.2.3.2 Verification of resistance
of insulating materials to normal heatMeets the product standard's requirements.10.2.3.3 Verification of resistance
of insulating materials to abnormal
heat and fire due to internal electric effectsMeets the product standard's requirements.10.2.4 Resistance to ultra-violet (UV) radiationMeets the product standard's requirements.10.2.5 LiftingDoes not apply,
since the entire switchgear
needs to be evaluated.10.2.6 Mechanical impactDoes not apply,
since the entire switchgear
needs to be evaluated.10.2.7 InscriptionsMeets the product
standard's requirements.10.3 Degree of protection of ASSEMBLIESDoes not apply,
since the entire switchgear
needs to be evaluated.10.4 Clearances and creepage distancesMeets the product standard's requirements.10.5 Protection against electric shockDoes not apply,
since the entire switchgear
needs to be evaluated.10.6 Incorporation
of switching devices and componentsDoes not apply,
since the entire switchgear
needs to be evaluated.10.7 Internal electrical circuits
and connectionsIs the panel builder's responsibility.10.8 Connections for external conductorsIs the panel builder's responsibility.10.9 Insulation properties10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.10.9.3 Impulse withstand voltageIs the panel builder's responsibility.10.9.4 Testing of enclosures
made of insulating materialIs the panel builder's responsibility.10.10 Temperature riseThe panel builder is responsible
for the temperature rise calculation.
Eaton will provide heat dissipation
data for the devices.10.11 Short-circuit ratingIs the panel builder's responsibility.
The specifications for the switchgear
must be observed.10.12 Electromagnetic compatibilityIs the panel builder's responsibility.
The specifications for the
switchgear must be observed.10.13 Mechanical functionThe device meets the requirements,
provided the information in the
instruction leaflet (IL) is observed.Technical data ETIM 5.0Low-voltage industrial components (EG000017) / Auxiliary contact block (EC000041)Electric engineering, automation, process control engineering / Low-voltage switch technology /
Component for low-voltage switching technology / Auxiliary switch block
(ecl@ss8-27-37-13-02 [AKN342009])Number of contacts as change-over contact0Number of contacts as normally open contact1Number of contacts as normally closed contact1Rated operation current Ie at AC-15, 230 V1 AType of electric connectionScrew connectionMounting methodFront FasteningApprovalsProduct StandardsUL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE markingUL File No.E36332UL Category Control No.NLRVCSA File No.165628CSA Class No.3211-05North America CertificationUL listed, CSA certified

PLEASE VIEW THE PICTURES AND CONTACT ME WITH ANY QUESTIONS

EVERYTHING THAT WE SELL IS ON-HAND AND IN STOCK, SHIPPED FROM CENTRAL USA.MOST ITEMS SHIP WITHIN ONE BUSINESS DAY. WE SHIP EVERY DAY MONDAY THROUGH FRIDAY UNLESS THERE ARE SPECIAL CIRCUMSTANCES.WE PROMISE AN HONEST, FAST AND COURTEOUS TRANSACTION! THANK YOU VERY MUCH AND HAVE A WONDERFUL DAY! JOE&BRIDGET.... please check out our other listings.

Returns accepted for unopened/ unused/ uninstalled merchandise only.

This product was recovered as lost/ unclaimed freight. We are in no way affiliated with the manufacturer.
