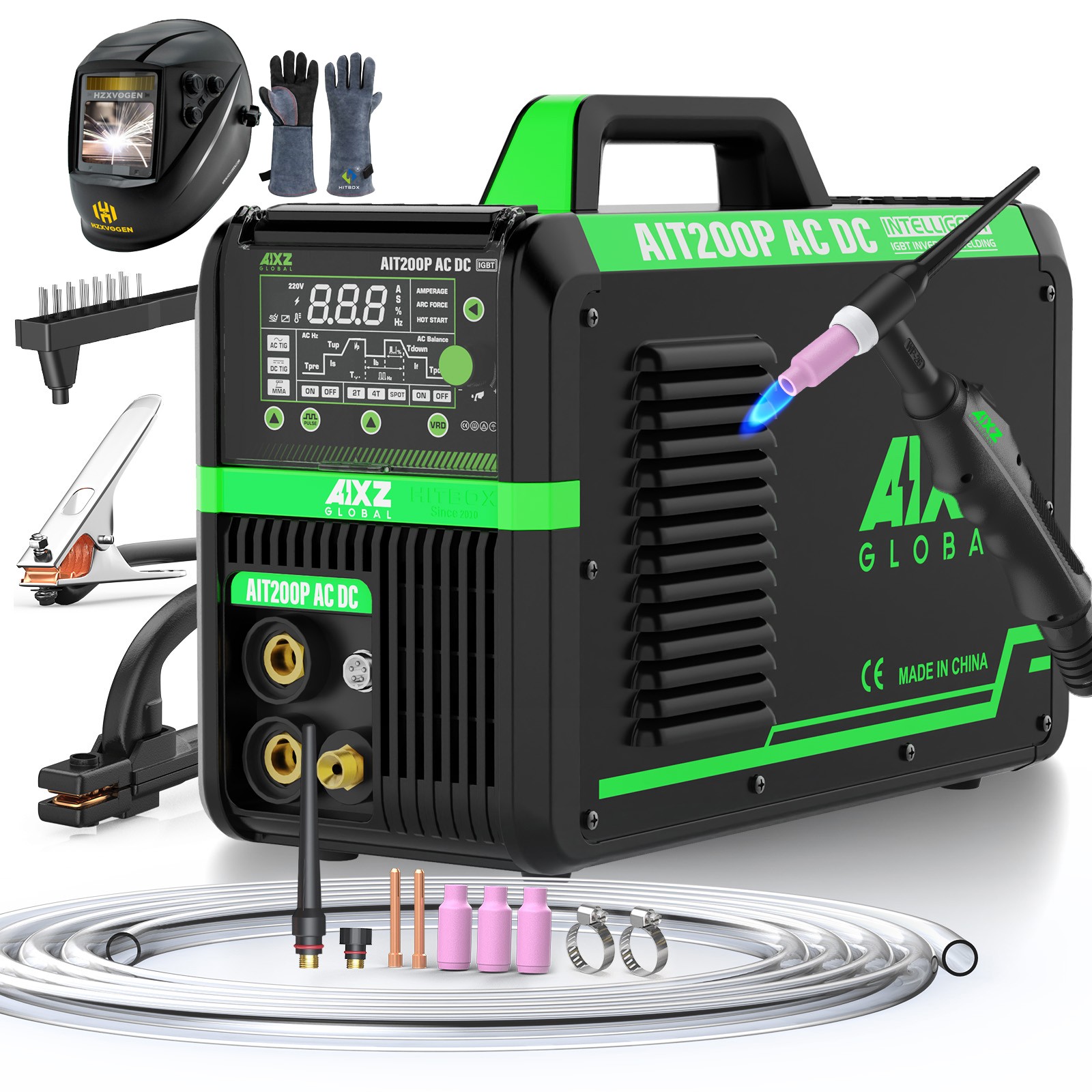

5in1 AC DC TIG Welding Machine 200Amp 110V/230V Pulse Aluminium TIG STICK Welder For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

5in1 AC DC TIG Welding Machine 200Amp 110V/230V Pulse Aluminium TIG STICK Welder:
$376.19

AIXZ 200A AC/DC Aluminium HF TIG Welder, 110V/230V Dual Voltage Digital Inverter Welding Machine with Pulse & Square Wave, DC TIG/AC TIG/Pulse TIG/Spot TIG/MMA, IGBT 2T/4T LED Display, Professional Aluminium TIG Welder, Foot Pedal CompatibleWhy you select our AIT200P AC/DC Tig Welder?The reason is:【Multi-Process & Dual Voltage Welding Capacity】This AIT200P AC/DC TIG unit supports 5 core welding processes: High-Frequency AC/DC TIG, Pulsed AC/DC TIG, AC/DC TIG Spot Weld & MMA Stick Welding. Delivering up to 200A welding output and dual 110V/230V wide voltage compatibility, it handles nearly all common metals: aluminum, aluminum alloy, stainless steel, carbon steel, iron and copper.
【Optimized AC Mode for Effortless Aluminum Welding】The dedicated AC output streamlines aluminum welding with efficiency matching carbon steel and stainless steel jobs.Fully customizable parameters allow you to switch between sine wave and square wave to adjust arc behavior, weld bead shape and penetration depth:
*110V input: Suitable for aluminum sheets 0.8mm–6mm (1/32\"–15/64\")
*230V input: Weld aluminum up to 9.5mm (3/8\") thick
【HF Non-Contact TIG Ignition for Flawless Welds】High-frequency non-touch arc start cuts tungsten contamination and eliminates common welding imperfections.
Complete adjustable TIG cycle settings: pre-flow gas, post-flow gas, current upslope & downslope, delivering precise heat control and ultra-smooth weld finish.
【Pulse TIG Mode】Minimal Distortion for Thin & Complex Workpieces Pulsed TIG balances strong penetration with drastically reduced heat input. Alternating peak and background current delivers concentrated, stable arcs, restricts thermal deformation, and performs perfectly on thin sheets and out-of-position welding tasks.
【Ergonomic & Portable Operation Design】Optional foot pedal remote control (sold separately) Dual 2T / 4T torch trigger modes for flexible welding operation, Compact lightweight build: only 18.3 lbs (8.3 kg) with integrated carry handle for easy transport, High-bright digital control panel, clearly readable under dim or harsh workshop lighting
【Full Safety Protection & Smart Energy-Saving Cooling】Comprehensive built-in safety systems defend against phase loss, overvoltage, undervoltage, overcurrent and overheating damage. Intelligent variable-speed cooling fan only activates when heat is needed, lowering running noise, saving power and limiting internal dust accumulation to extend machine service life.
【Ideal For All Users & Workshop Scenarios】Perfect for welding beginners, DIY metal fabrication, home garage projects and small professional workshops seeking cost-effective aluminum AC/DC TIG capability. It also serves as an ideal secondary welding machine for users owning a MIG welder, expanding your workshop’s processing range with full TIG functionality.Specifications:Brand name: AIXZModel: AIT200P ACDCRated Input Voltage(V) :AC230V:10%,50/60HzRated Input Power(KVA): 5.8Rated Input Current(A):26.3TIG Rated Output Current & Voltage:200/18VMMA/ARC Rated Output Current & Voltage:180A/27.2VTIG Output Current(A):10A-200AMMA/ARC Output Current(A):20A-180AMMA/ARC No-load voltage: 67VTIG No-load voltage: 65VRated Duty Cycle(%):60Efficiency(%):85Protection Class:IP21SInsulation Class:FPacking dimension: 480mm*270mm*365mmBase material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminumWelding process :AC DC TIG/ARCProduct Features
*Multi-Process Functionality: AC/DC TIG, Pulse TIG, Spot, MMA. 230V multi-purpose aluminium welding machine with maximum 200A output current. Welds most metals: carbon steel, stainless steel, aluminium, copper and others.
*Versatile Welding Modes: AC Square Wave TIG, AC Pulse TIG, DC TIG, DC Pulse TIG, MMA, plus DC/Pulse/AC argon spot welding.
*Advanced IGBT Inverter Technology: Net weight only 11kg for flexible, portable operation. Modern IGBT transistors are smaller and lighter than outdated MOSFET technology.
*Fully Digital Control: Adjustable start/end current, upslope/downslope timing, pulse settings, AC balance, AC frequency, 2T/4T trigger modes.
*MMA Hot Start enables easy arc striking, stable current, low spatter, no rod sticking and clean weld beads.
*Beginner & Pro Friendly: Intuitive operation design, easy to master for both professional welders and new hobbyists.
*Foot Pedal Remote Compatibility: Set maximum output current on the machine, then regulate real-time welding current via foot pedal. (Foot pedal NOT included in standard package)Package include:1* Tig welder
1* Earth clamp
1* Electrode holder
1* Tig consumables
1* Adapter cord
1* Manual1* Welding Helmet1* Welding Gloves
