5V Pressure Transducer or Sender 30psi-1600Psi for Fuel Diesel Oil Air Water For Sale

5V Pressure Transducer or Sender 30psi-1600Psi for Fuel Diesel Oil Air Water
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.


Buy Now

5V Pressure Transducer or Sender 30psi-1600Psi for Fuel Diesel Oil Air Water:
$18.89

  • Store Home
  • New Arrival
  • Ending Soon
  • Add to Favourites
  • View response
  • Contact us
Why Buy From usItems Description

100% New and High Quality

Wire Length:13inch

Fast Shipping from US

Works foroil,fuel,diesel,gas,water,air pressure.

Can be used in oil tank,gastank,diesel tank etc.

Material: Stainless steel body.

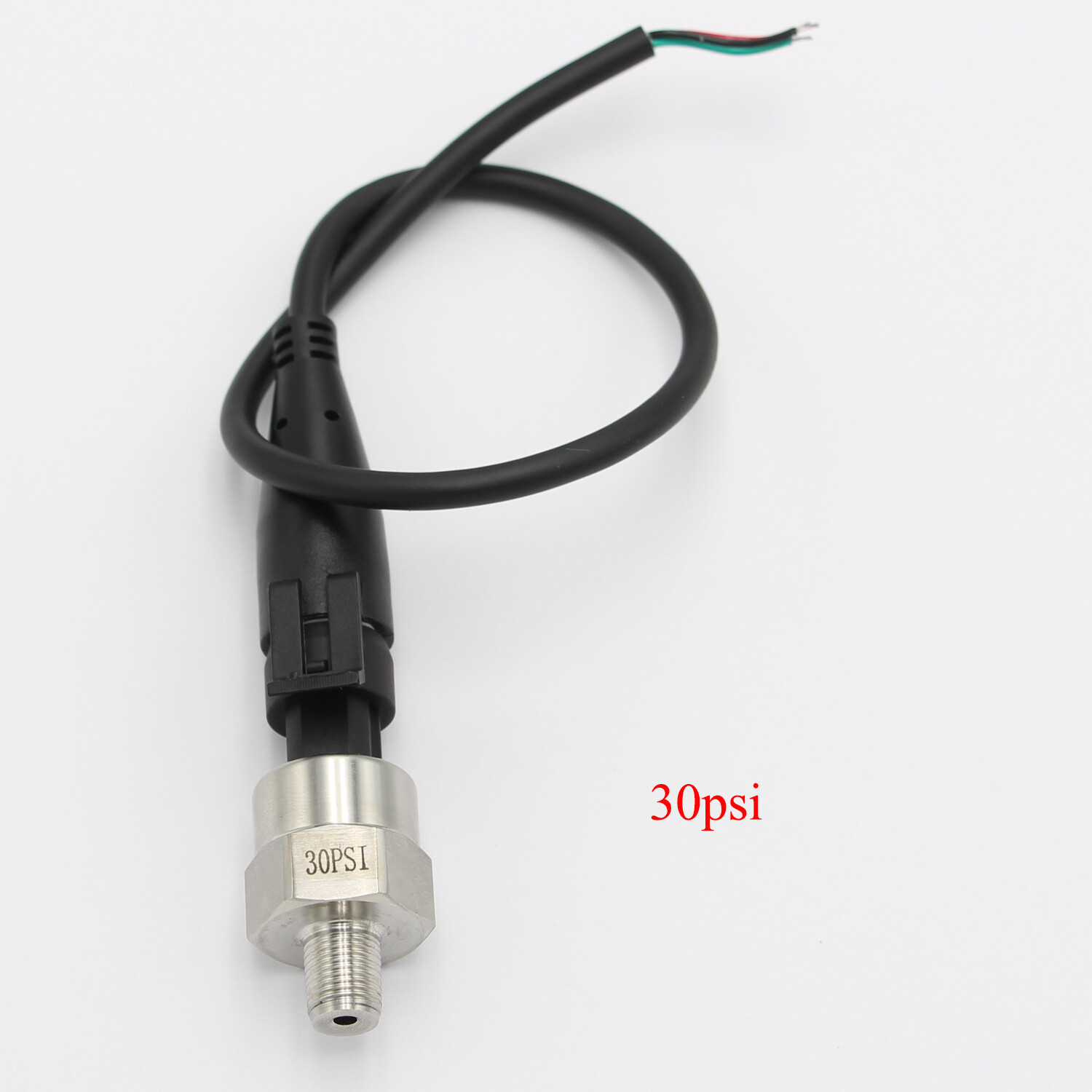

30 psi

Input:0-30 psi.

Output:0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30psi outputs 4.5V.

Accuracy:within 2% of reading (full scale).

Thread:1/8”-27 NPT.

Wiringconnector: water sealed quick disconnect. Mating connector is included.

Wiring:Red for +5V. Black for ground. Blue for signal output.

WorkingTemperature: -40—+120ºC;

CompensationTemperature: -20—+80ºC;

Weight:60g

100 psi

Input:0-100 psi.

Output:0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100psi outputs 4.5V.

Accuracy:within 2% of reading (full scale).

Thread:1/8”-27 NPT.

Wiringconnector: water sealed quick disconnect. Mating connector and wire harness(pigtail) is included.

Wiring:Red for +5V. Black for ground. Blue for signal output.

WorkingTemperature: -40—+120ºC;

CompensationTemperature: -20—+80ºC;

Weight:60g

150 psi

Input: 0-150 psi.

Output: 0.5V – 4.5V linear voltage output. 0 psioutputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V.

Accuracy: within 2% of reading (full scale).

Thread: 1/8”-27 NPT.

Wiring connector: water sealed quickdisconnect.Mating connector and wire harness (pigtail) is included.

Wiring: Red for +5V. Black forground.Blue for signal output.

WorkingTemperature: -40—+120ºC;

CompensationTemperature: -20—+80ºC;

Weight:60g

200 psi

PressureRange: 0-200 psi

Output:0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V,200 psi outputs 4.5V

WorkingTemperature: -40—+125ºC;.

Thread:1/8”-27 NPT.

OverloadCapacity: 2 times;

PressureMedium: The gas and liquid which is compatible with 316L stainless steel;

LoadResistance: ≤(supply power-6.5V/0.02A)Ω;

Long-termstability: ± 0.2%FS/year;

TemperatureEffect on Zero: Typical: ±0.02%FS/ºC; Maximum: ±0.05%FS/ºC;

TemperatureEffect on Sensitivity: Typical: ±0.02%FS/ºC; Maximum: ±0.05%FS/ºC;

ShockResistance: 100g;

ResponseTime: ≤1ms;

InsulationResistance: >100mΩ 500VDC;

Explosion-proofClass: ExiaTTCT6;

Wiringconnector: water sealed quick disconnect. Mating connector and wire harness(pigtail) is included.

Wiring:Red for IN+. Black for GND. Green for OUT.

Weight:60g

300psi

Input:0-300 psi(Gauge Pressure);

Output:0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300psi outputs 4.5V.

Accuracy:+/-0.5%FS;

Thread:1/8” NPT;

WiringConnector: Packard plug-in unit is included;

Wiring:Red: +5V; Black: ground; Green: signal output;

OverloadCapacity: 2-4 times;

WorkingTemperature: -40—+120ºC;

CompensationTemperature: -20—+80ºC;

ProtectionClass: IP67;

PressureMedium: The gas and liquid which is compatible with 316L stainless steel;

LoadResistance: ≤ (supply power-6.5V/0.02A)Ω;

Long-termstability: Less than 0.1%FS/year;

TemperatureEffect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;

TemperatureEffect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;

ShockResistance: 1000g;

ResponseTime: ≤1ms;

InsulationResistance: >100mΩ 500VDC;

Weight:60g

500 psi

Input:0-500 psi(Gauge Pressure);

Output:0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, 500psi outputs 4.5V.

Accuracy:+/-1%FS;

Thread:1/8” NPT;

WiringConnector: Packard plug-in unit is included;

Wiring:Red: +5V; Black: ground; Yellow(Green): signal output;

OverloadCapacity: 2-4 times;

WorkingTemperature: -40—+120ºC;

CompensationTemperature: -20—+80ºC;

ProtectionClass: IP67;

PressureMedium: The gas and liquid which is compatible with 316L stainless steel;

LoadResistance: ≤ (supply power-6.5V/0.02A)ω;

Long-termstability: Less than 0.1%FS/year;

TemperatureEffect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;

TemperatureEffect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;

ShockResistance: 1000g;

ResponseTime: ≤1ms;

InsulationResistance: >100mω 500VDC;

Weight:60g

1000psi

Input:0-1000 psi.

Output:0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 500 psi outputs 2.5V,1000 psi outputs 4.5V.

Worksfor oil, fuel, water or air pressure. Can be used in oil tank, gas tank, etc.

Accuracy:within 2% of reading (full scale).

Thread:1/8” NPT.

Wiringconnector: water sealed quick disconnect. Mating connector is included.

Wiring:Red for +5V. Black for ground. Blue for signal output.

Weight:70g

1600psi

Input:0-1600 psi(Gauge Pressure);

Output:0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 800 psi outputs 2.5V, 1600psi outputs 4.5V.

Accuracy:+/-0.5%FS;

Thread:1/8” NPT;

WiringConnector: Packard plug-in unit is included;

Wiring:Red: +5V; Black: ground; Green: signal output;

OverloadCapacity: 2-4 times;

WorkingTemperature: -40—+120ºC;

CompensationTemperature: -20—+80ºC;

ProtectionClass: IP67;

PressureMedium: The gas and liquid which is compatible with 316L stainless steel;

LoadResistance: ≤ (supply power-6.5V/0.02A)Ω;

Long-termstability: Less than 0.1%FS/year;

TemperatureEffect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;

TemperatureEffect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;

ShockResistance: 1000g;

ResponseTime: ≤1ms;

InsulationResistance: >100mΩ 500VDC;

Weight:70g

Explosion-proofClass: ExiaTTCT6;

Package included:
