5Pcs MCP4725 12-Bit DAC I2C Interface Digital-To-Analog Converter Board For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

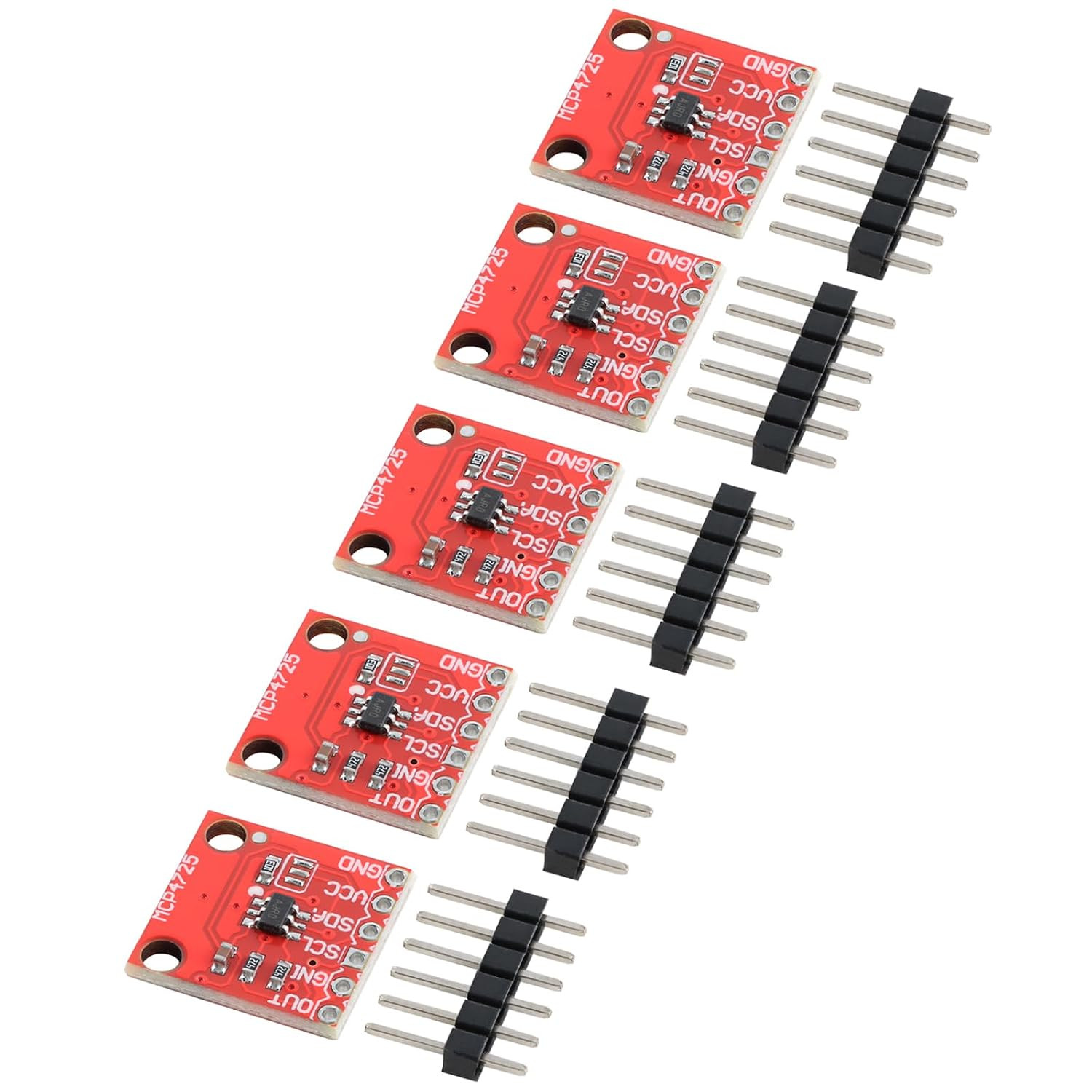

5Pcs MCP4725 12-Bit DAC I2C Interface Digital-To-Analog Converter Board:
$22.99

The MCP4725 is a high-precision, single-channel 12-bit DAC (Digital-to-Analog Converter) with non-volatile memory (EEPROM). This versatile device allows you to store configuration register bits and DAC input data, making it perfect for a wide range of applications, from sound generation to musical instruments.

Key Features:
- High Resolution: 12-bit resolution for precise analog signal output.
- I2C Interface: Supports Standard, Fast, and High-Speed I2C communication, compatible with popular microcontrollers like for arduino.
- Non-Volatile Memory: Internal EEPROM stores settings, ensuring your configurations are retained even when power is off.
- Wide Voltage Range: Operates on a single supply from 2.7V to 5.5V, suitable for various power sources.
- Compact Design: Small package size, ideal for space-constrained projects.
- Configurable Modes: Can be set to normal mode or power-saving shutdown mode via the configuration register.

Applications:
- Sound Generation: Create high-quality audio signals for speakers, headphones, and other audio devices.
- Musical Instruments: Generate precise waveforms for synthesizers, MIDI controllers, and other musical equipment.
- Creative Projects: Ideal for DIY electronics, robotics, and any project requiring accurate analog output.

Pin Configuration:
- GND and Signal OUT Pins: Easily connect to an oscilloscope or other devices.
- SCL and SDA Pins: For I2C communication.
- VCC and GND Pins: For power supply and ground connections.

Multiple Devices on the Bus:
If you need to use multiple MCP4725s on the same I2C bus, you can disable the pull-up resistors on this board to avoid conflicts.

Specifications:
- Resolution: 12-bit
- Interface: I2C (Standard, Fast, and High-Speed supported)
- Supply Voltage: 2.7V to 5.5V
- Memory: Internal EEPROM for storing settings

High-Precision 12-bit MCP4725 DAC Digital-to-Analog Conversion Module delivers exceptional accuracy, making it ideal for sound generation and musical instruments. The I2C interface ensures seamless integration with for arduino and other microcontrollers
Non-Volatile EEPROM Memory in the MCP4725 DAC digital-to-analog conversion module retains your settings even when power is off, providing reliable performance for both DIY electronics and professional applications
Wide Voltage Range (2.7V to 5.5V) and compact design make the MCP4725 DAC digital-to-analog D/A converter red board perfect for space-constrained projects, offering flexibility and ease of use in a variety of power environments
Configurable Modes including normal and power-saving shutdown, along with the I2C interface, allow the MCP4725 DAC digital-to-analog conversion module to be easily adapted for different project needs, from audio equipment to robotics
Multiple Devices on the Same I2C Bus can be managed by disabling the pull-up resistors on the MCP4725 DAC digital-to-analog D/A converter red board, ensuring smooth operation and avoiding conflicts in complex setups
