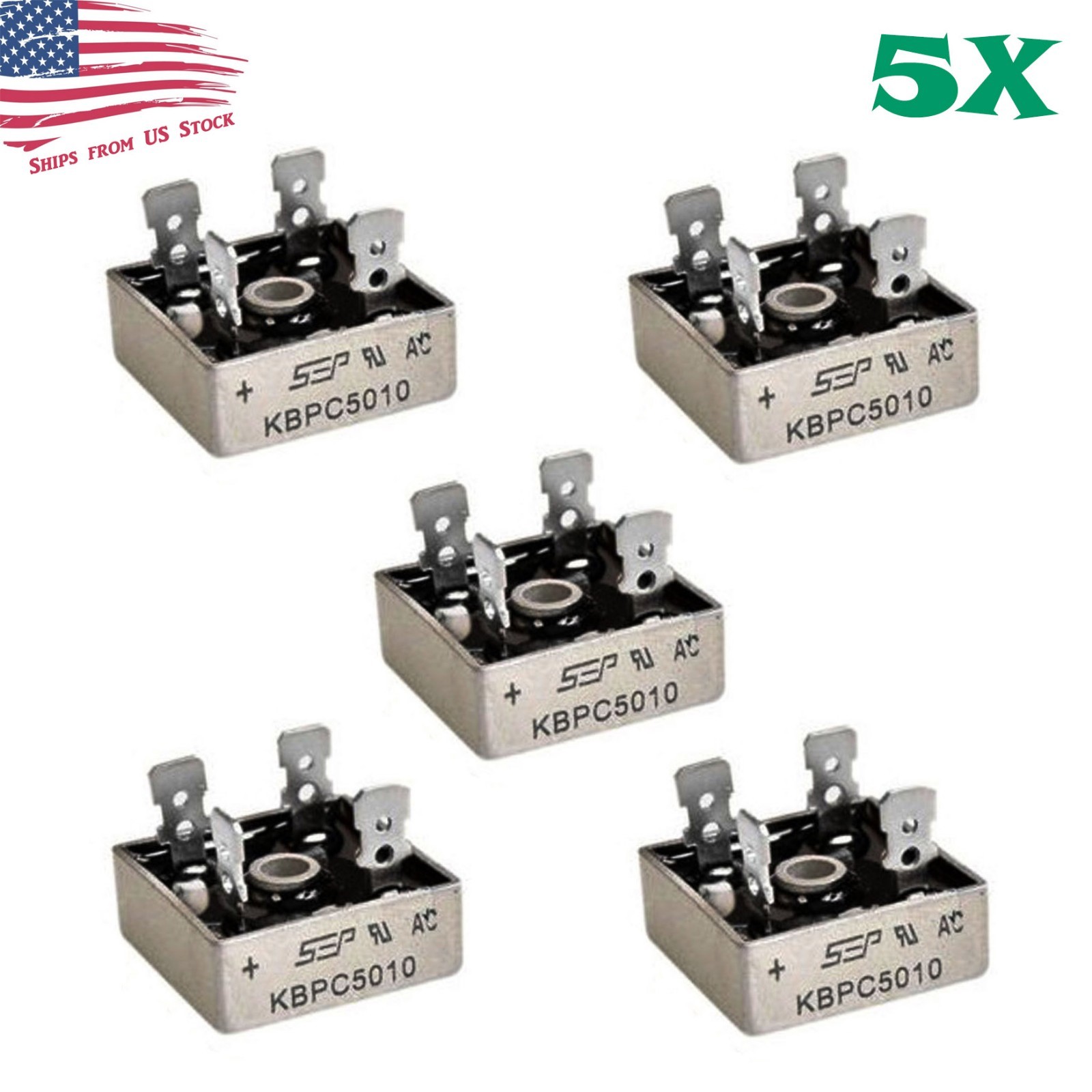

5Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010 5X:
$9.89

Upgrade your power supply with the KBPC5010 Diode Bridge Rectifier! This set of 5 robust 50A, 1000V rectifiers features high surge current capability and an electrically isolated metal case for optimal heat dissipation. Perfect for various applications, it ensures long-lasting performance. Enjoy quick shipping from Colorado with FREE tracking!

Electronics for IoT, Prototyping & DIY

5Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010 5X

The KBPC5010 is a robust and reliable single-phase bridge rectifier designed for converting AC voltage into DC voltage. Featuring a high surge current capability and an electrically isolated metal case, it ensures efficient heat dissipation and long-lasting performance. Ideal for various power supply applications, the KBPC5010 offers exceptional value and quality.

KBPC5010 Key Features:

High Voltage and Current: 1000V maximum repetitive peak reverse voltage and 50A maximum average forward rectified output current.
UL Listed: UL listed under the Recognized Component Index, file number E142814.
Flammability Rating: The plastic material used carries Underwriters Laboratory flammability recognition 94V-0.
High Surge Current: Surge overload rating of 400A.
Electrically Isolated Metal Case: Provides maximum heat dissipation and allows for easy mounting to a chassis or heat sink.
Isolation Voltage: Case to terminal isolation voltage of 2500V.
Universal Terminals: Universal 4-way terminals, snap-on, wrap-around, solder, or P.C. Board mounting for flexible connection options.

Electrical Specifications:

Maximum repetitive peak reverse voltage (VRRM): 1000V
Maximum RMS bridge input voltage (VRMS): 700V
Maximum DC blocking voltage (VDC): 1000V
Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A
Typical thermal resistance per element (ReJA): 2.5 degrees C/W
Operating junction and storage temperature range: -55 to +150 C
Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V
Maximum DC reverse current at rated TA=25 C (IR): 10uA
DC blocking voltage per element TA=125 C (IR): 500uA

Mechanical Specifications:

Case: Metal case
Terminals: Plated .25"(6.35mm) Faston
Mounting Position: Bolt down with silicone thermal compound between bridge and mountingsurface for maximum heat transfer efficiency
Universal 4-way terminals, snap-on, wrap-around,solder or P.C. Board mounting
Mounting Torque: 20 in-lb max.
Weight: 1.12 Ounces / 32 grams (approx)

Package includes:5x (5 pieces) KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge RectifierLink to online installation and usage instructions
Contact us for quantity/OEM pricing.
Get it faster! Stocks and ships from our US Colorado office for quick delivery!
We provide FREE USPS Ground Advantge Shipping with Tracking - Not Economy Shipping
