50PCS 3362P Single Turn Trimmer Potentiometer Assortment Kit 100 500 1K 2K 5K 10:
$17.79

Adjustment method: 250°±10° Rotary. Resistance tolerance: ±10%.3362P Trim Potentiometer Assortment Kit; Resistance Value: 100 500 1K 2K 5K 10K 50K 100K 500K 1M ohm.
Adjustment method: 250°±10° Rotary. Resistance tolerance: ±10%.
Rated power: 0.5W; Operating Temperature: -55℃ to +125℃.
3 Pins can easily insert into breadboard or universal board, simple installation.
Applications: Arduino, Industrial controls, robotics, photographic lenses, computer input devices such as optomechanical mice and trackballs, controlled stress rheometers, and rotating radar platforms.

A 3362P potentiometer is a manually adjustable, variable resistor that has three terminals. Two terminals are connected to a resistive element and the third terminal is connected to an adjustable wiper. The position of the wiper determines the output voltage or current.
Electrical Characteristics:
Resistance Range: 100 ohms ~ 1M ohms
Adjustment Type: top adjustment
Resistance Tolerance: ±10%
Terminal Resistance: ≤5%R or 5Ω
Contact Resistance Change: CRV≤5%R or 5Ω
Withstand Voltage: 101.3KPa 500V, 8.5KPa 315V
Insulation Resistance: ≥1GΩ
Effective Electric Stroke: 210°±10°
Environmental characteristics:
Rated Power (315V max): 0.5W 70℃, 0W 125℃
Temperature Range: -55℃~125℃
Temperature Coefficient: ±200ppm/℃
Temperature Change: △R≤(2%R＋0.1Ω), △(Uab/Uac)≤±1%R
Collision: 390m/s2, 4000 cycles △R≤±1%R
70℃ Electrical Durability: 0.5W, 1000h △R≤±10%R △(Uab/Uac)≤±10%
Mechanical Durability: 200cycles, △R≤±10%R
Constant Heat and Humidity: △R≤±3%R, R1≥100MΩ
Physical Characteristics:
Total Mechanical Stroke: 250°±10°
Starting Torque: ≤20mN.m
Stop Torque: ≥50mN.m
Size: 0.26" x 0.28" x 0.19" H (6.6mm x 6.99mm x 4.7mm)

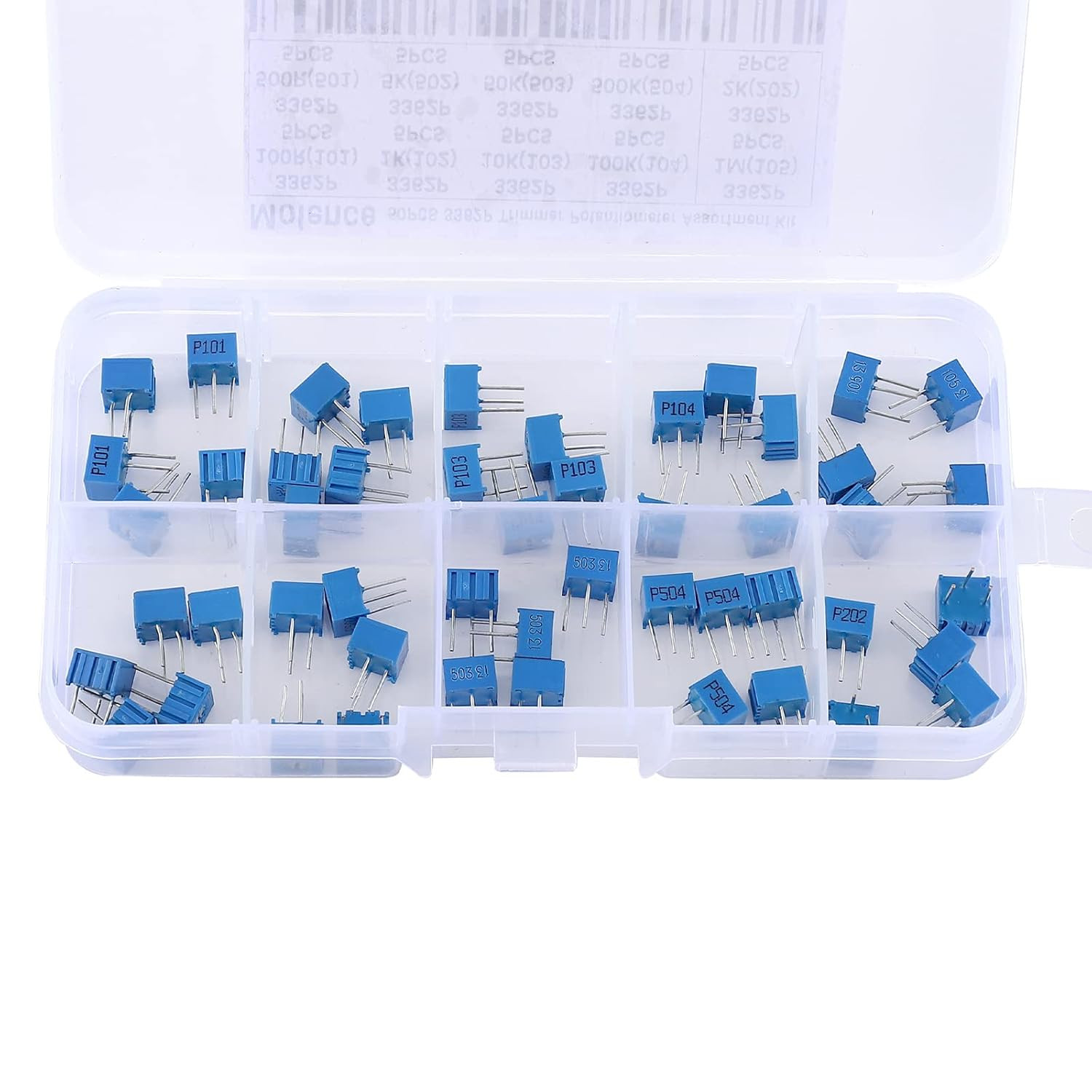

Package Content:
5PCS 3362P 100 Ohm Trim Potentiometer
5PCS 3362P 500 Ohm Trim Potentiometer
5PCS 3362P 1K Ohm Trim Potentiometer
5PCS 3362P 2K Ohm Trim Potentiometer
5PCS 3362P 5K Ohm Trim Potentiometer
5PCS 3362P 10K Ohm Trim Potentiometer
5PCS 3362P 50K Ohm Trim Potentiometer
5PCS 3362P 100K Ohm Trim Potentiometer
5PCS 3362P 500K Ohm Trim Potentiometer
5PCS 3362P 1M Ohm Trim Potentiometer
1PCS plastic box
