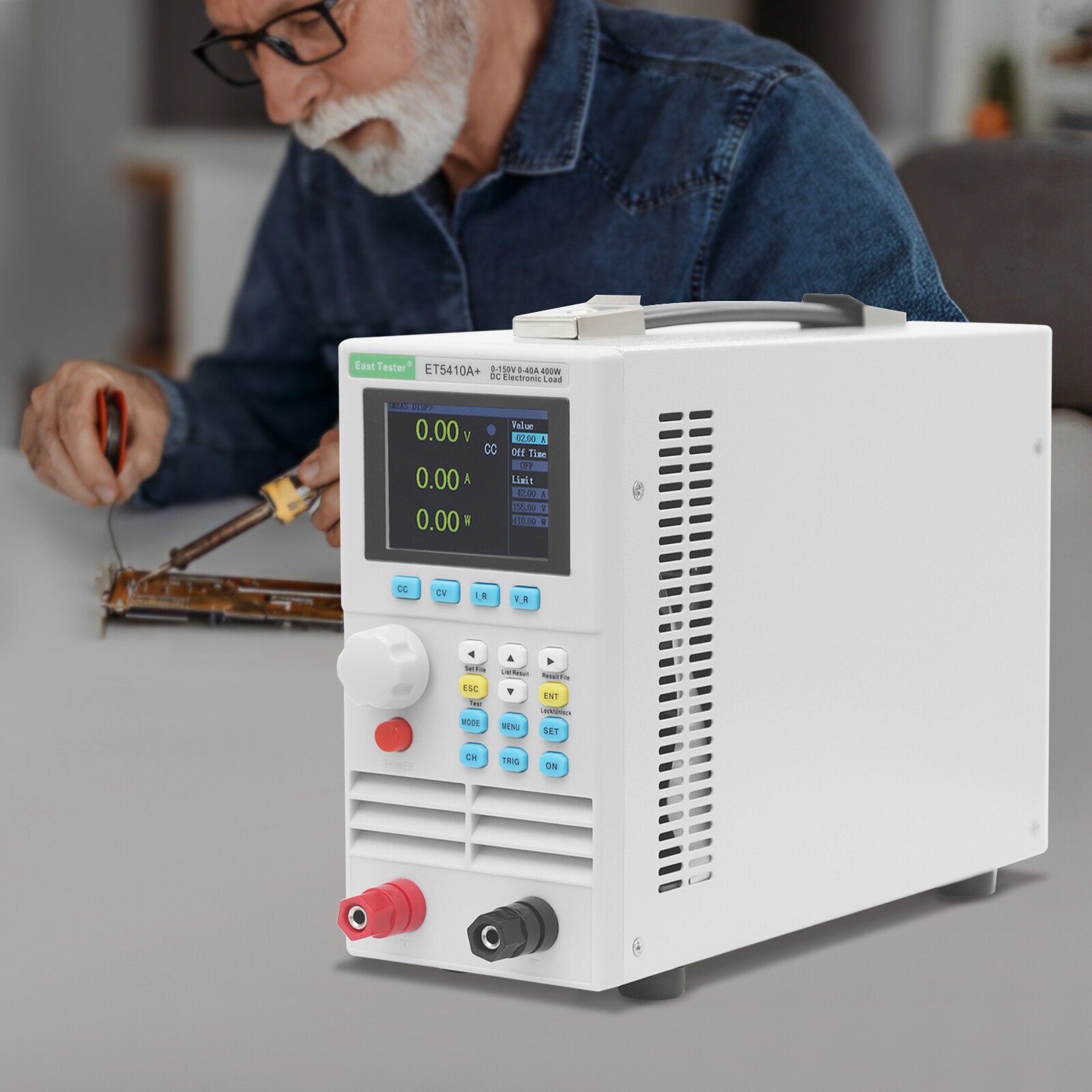

400W Electronic Load Tester Single Channel Programmable Load Tester 150V 40A For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

400W Electronic Load Tester Single Channel Programmable Load Tester 150V 40A:
$182.75

SpecificationsColor: WhiteMaterial: Aluminum, PCB Electric Board, SiliconeProcess: Screen PrintingMount Type: Free StandingAssembly Required: NoChannel Type: Single ChannelPlug Standard: US StandardPower: 400WInput Voltage: 0-150VInput Current: 0-40AConstant Voltage Mode:Range: 0.1-19.999V, 0.1-150.00VResolution: 1mV, 10mVAccuracy: ±(0.05%+0.02%FS)Constant Current Mode:Range: 0-3.000A, 0-40.00AResolution: 1mA, 10mAAccuracy: ±(0.05%+0.05%FS)Constant Resistance Mode:Range: 0.05Ω-1kΩ, 1kΩ-4.5kΩResolution: 10mΩ, 100mΩAccuracy: ±(0.1%+0.5%FS)Constant Power Mode:Range: 0-400WResolution: 10mWAccuracy: ±(0.1%+0.5%FS)Dynamic Test Function:Mode: CC, CVT1&T2: 50ms~60s, 1ms resolution

400W Electronic Load Tester Single Channel Programmable Load Tester 150V style="margin: 0pt 0pt 0.0001pt; text-align: justify; font-family: Calibri; font-size: 10.5pt;">Application

The product is mainly used for testing lighting fixtures, chargers, batteries, internal resistance, switching power supplies, mobile power supplies, lithium batteries, energy vehicles, LED driver power supplies, etc. It is also suitable for testing on production lines and aging process testing.

Specifications

Color: White

Material: Aluminum, PCB Electric Board, Silicone

Process: Screen Printing

Mount Type: Free Standing

Assembly Required: No

Channel Type: Single Channel

Plug Standard: US Standard

Power: 400W

Input Voltage: 0-150V

Input Current: 0-40A

Constant Voltage Mode:

Range: 0.1-19.999V, 0.1-150.00V

Resolution: 1mV, 10mV

Accuracy: ±(0.05%+0.02%FS)

Constant Current Mode:

Range: 0-3.000A, 0-40.00A

Resolution: 1mA, 10mA

Accuracy: ±(0.05%+0.05%FS)

Constant Resistance Mode:

Range: 0.05Ω-1kΩ, 1kΩ-4.5kΩ

Resolution: 10mΩ, 100mΩ

Accuracy: ±(0.1%+0.5%FS)

Constant Power Mode:

Range: 0-400W

Resolution: 10mW

Accuracy: ±(0.1%+0.5%FS)

Dynamic Test Function:

Mode: CC, CV

T1&T2: 50ms~60s, 1ms resolution

Battery Test Function:

Discharge Mode: CC, CR

Maximum Discharge Capacity: 9999Ah

Resolution: 1mA, 10mA, 10mΩ, 100mΩ

Voltage Readback Value:

Range: 0~19.999V, 0~150.00V

Resolution: 1mV, 10mV

Accuracy: ±(0.05%+0.1%FS)

Current Readback Value

Range: 0~3.000A, 0~40.00A

Resolution: 1mA, 10mA

Accuracy: ±(0.05%+0.1%FS)

Power Readback Value

Range: 0~400W

Resolution: 10mW

Accuracy: ±(0.1%+0.5%FS)

Over-voltage Protection: >155V Cut Off Input

Over Current Protection: >42A Cut Off Input

Over Power Protection: 420W

Over Temperature Protection: 85℃/185℉

Voltage (CV) Short-circuit Range: 0V

Product Overall Size: 31*9*19cm/12.2*3.54*7.48in

Package Size: 40*28*20cm/15.75*11.02*7.87in

Gross Weight: 3.8kg/8.38lbs

Net Weight: 3.61kg/7.96lbs

Package Included

1* Electronic Load Tester

1* English Manual

1* Power Cord
