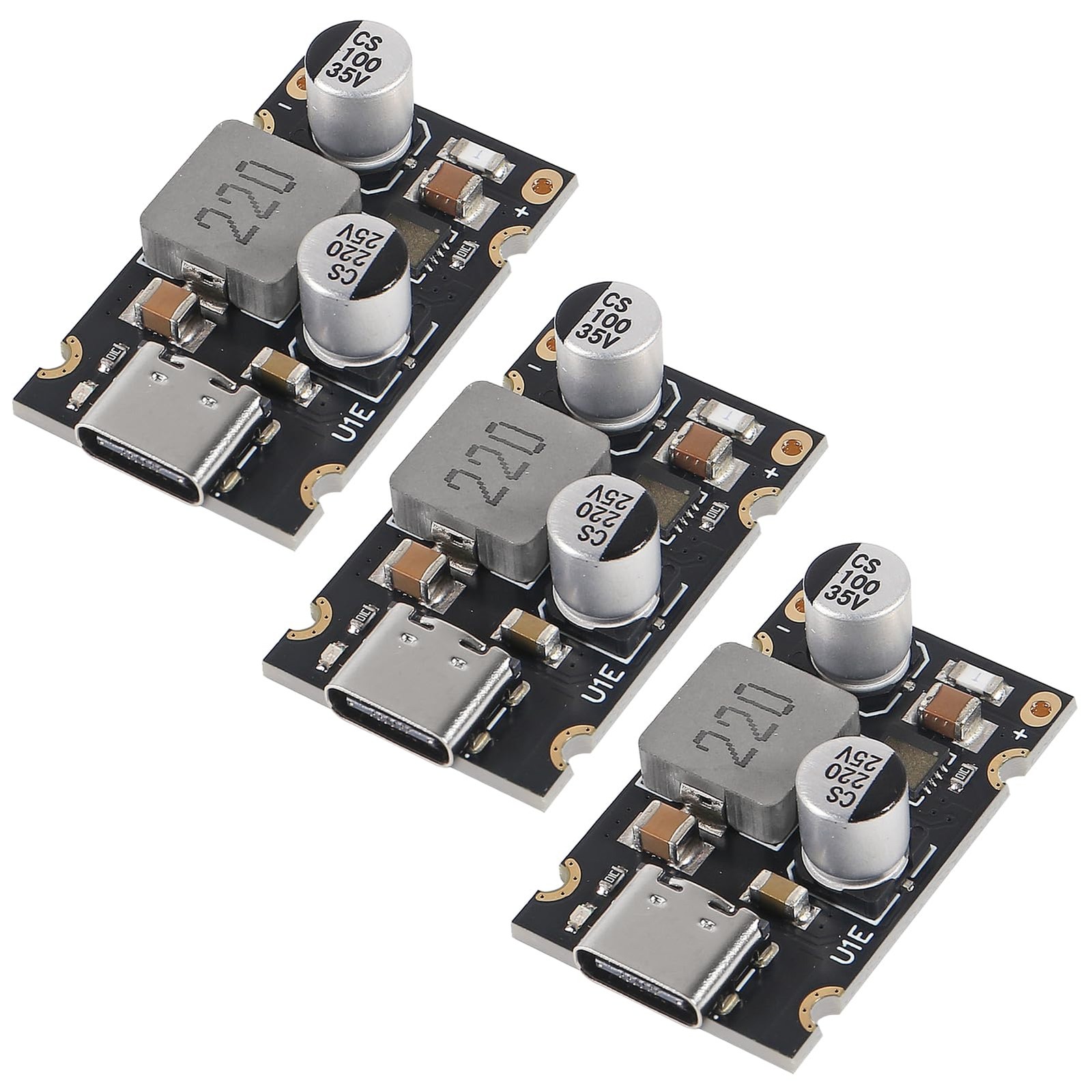

3PCS PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP...:
$9.63

Product temperature rise and output ripple:

Test conditions: Input voltage 24V, ambient temperature 24 ℃, load of a laptop computer that supports PD65W (with approximately 50% battery capacity), and the computer undergoes pressure testing to ensure that the power terminal power reaches 65W.

Parameters:

Input voltage: DC 8-30V

Output voltage: Automatically adjust between 3.3V and 21V when connected to a compatible TYPE-C receiving device (input voltage should be higher than output voltage, and if 20V fast charging is triggered, input voltage should be higher than 20V)

Output power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)

Maximum output: 20V 3.25A

Conversion efficiency: 92%~97%

Output voltage ripple:<200mV

No-load current:<3mA

Input overvoltage and undervoltage protection

Input overcurrent protection

Output overcurrent short circuit protection

Overall over temperature protection

Supported charging protocols: PD3.1 (PPS), QC3.0, SCP

Package： 3PCS PD 65W Fast Charging Module Type-C Interface

Output over-current, short-circuit protection Whole machine over-temperature protection
Output power: 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)； Designed to support PD3.1, QC3.0, SCP, and PPS fast charging protocols, ensuring compatibility with a wide range of devices.
Conversion efficiency: 92%~97%；The product features a Type-C interface, providing a universal connection for your devices
Output voltage: automatically adjusts between 3.3V~21V when connected to TYPE-C compatible powered devices (input voltage should be higher than output voltage, if you want to trigger 20V fast charging then input voltage should be higher than 20V)
Input voltage: DC8~32V
