3.2KVA 3000W Pure Sine Wave Solar Inverter Built-in 80A MPPT Solar Controller:
$659.99

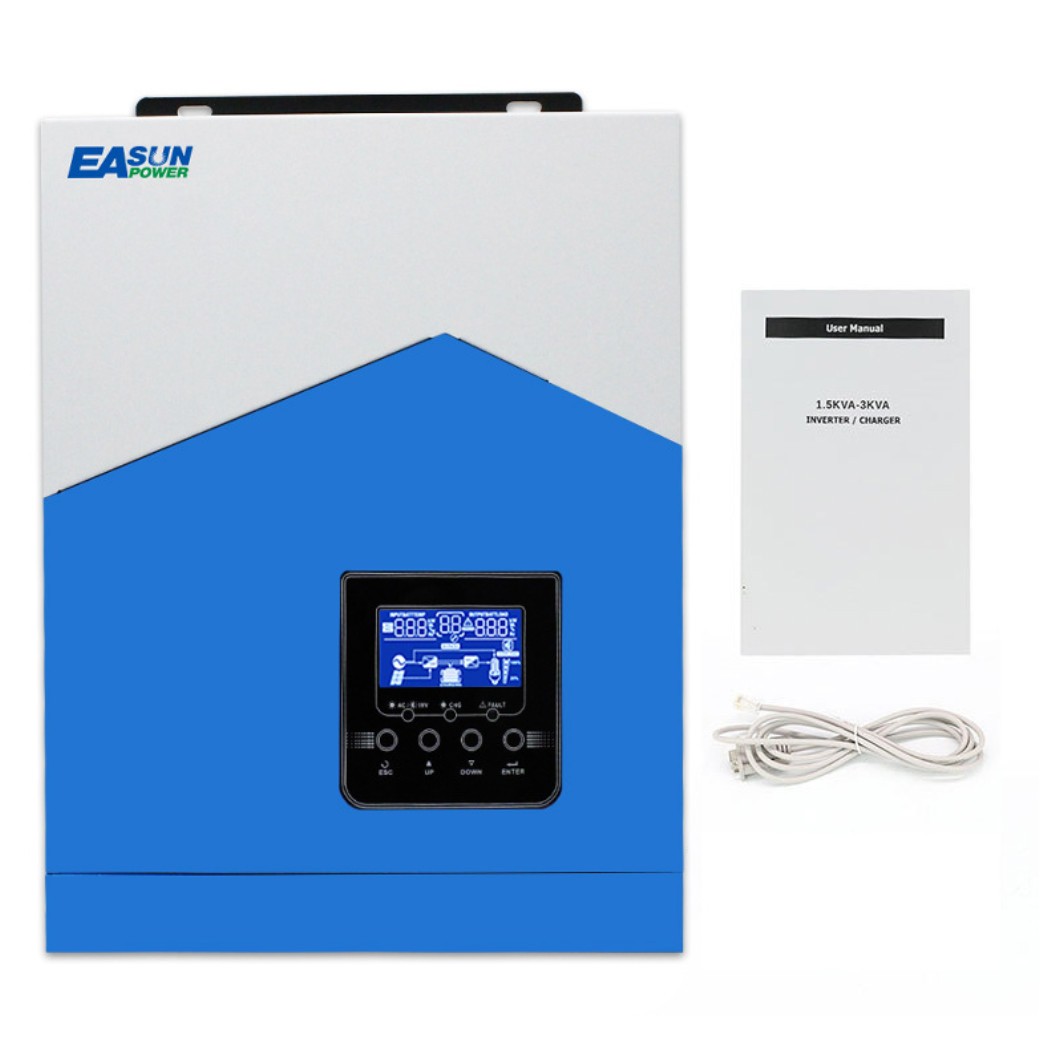

3.2KVA 3000W Pure Sine Wave Solar Inverter Built-in 80A MPPT Solar Controller

### Title

3.2KW 24V Hybrid Solar Inverter Pure Sine Wave Built-in 80A MPPT Charge Controller 55-450VDC PV Input For Lithium Battery

### Bullet Points

• Pure sine wave inverter
• Programmable power priority: Solar / Battery / Grid
• Wide PV input voltage range: 55VDC ~ 450VDC
• Built-in 80A MPPT solar charge controller
• Compatible with lithium-ion batteries
• Support BMS communication for lithium battery
• Intelligent battery charging design to extend battery service life
• Multiple protection: overload, over-temperature, output short circuit protection
• Built-in anti-dusk kit, works well in harsh environments

### Specification

Solar Charger Model: 3.2KW
System DC Voltage: 24VDC
Max PV Array Open Circuit Voltage: 450VDC
AC Charging Current: 80A
MPPT Operating Voltage Range: 55VDC-450VDC

PV Module Selection Rules:

1. The open-circuit voltage (Voc) of PV modules shall NOT exceed the max PV open circuit voltage of inverter.
2. PV module open-circuit voltage (Voc) must be higher than startup voltage.

250Wp Solar Panel Reference Spec:
Power:250WP, Vmp:30.1Vdc, Imp:8.3A, Voc:37.7VDC, Isc:8.4A, Cells:60
Panel Connection Options:
6 panels in series, total power 1500W
8 panels in series, total power 2000W
12 panels in series, total power 3000W
13 panels in series, total power 3250W
8 series 2 parallel (16pcs), total power 4000W
Recommended series range: 6~13 pieces in series
